Haier LE32U5000A - Connecting AV Equipment; AV and YPbPr Input Configuration; Compatible Appliances and Notes

INSTALLATION
AV EQUIPMENT
-8-
W R
W R
TO AUDIO
OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y

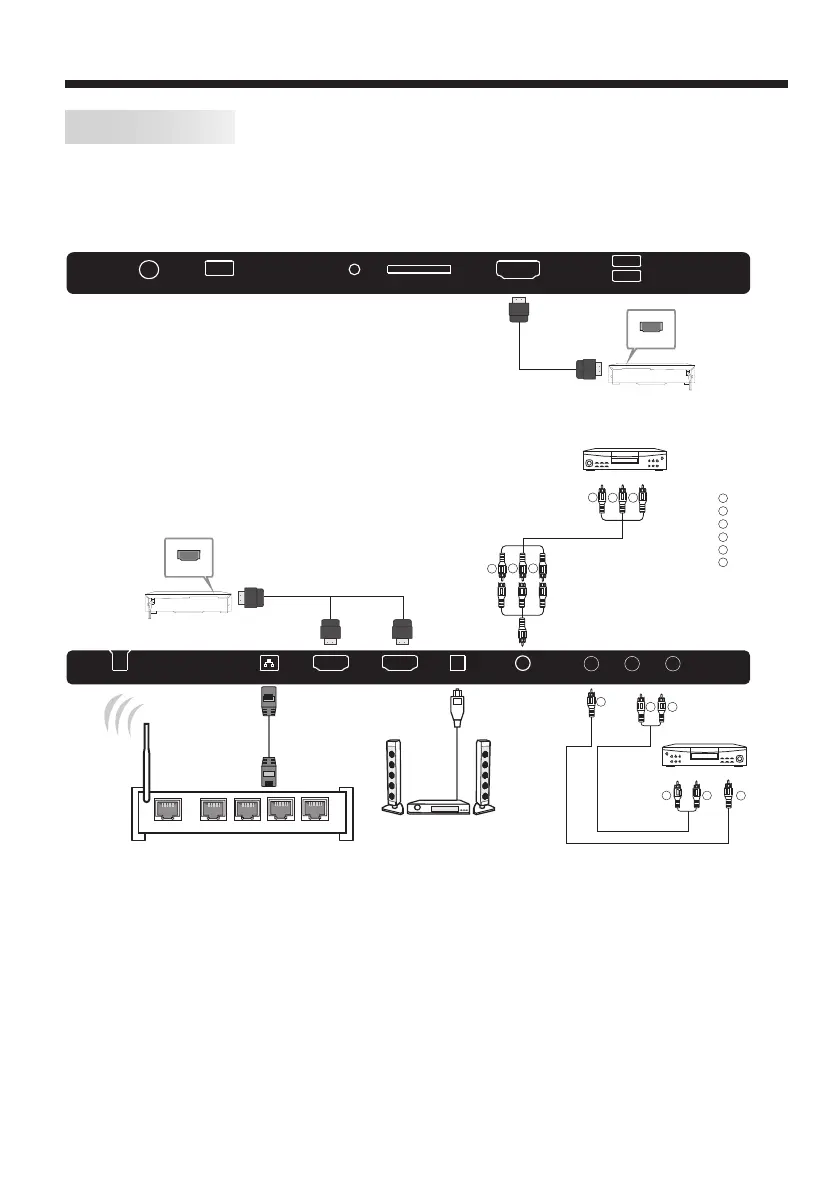

This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD
or other video equipment. Please refer to the owner's manual of the equipment to be connected
as well. You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo
system, etc...YPbPr can support these video fomats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.
Note:
1. share one audio channel.
2.Sometimes it will not support in different device because the device supplys nonstandard signal.
VIDEO, YPbPr
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y)
B
G
Yellow (video)
Y
Audio Receiver
1WAN 2
3
4
HDMI
HDMI
G
B R
VIDEO EQUIPMENT with YPbPr
G
B R
AC-INPUT
100-240V~50/60Hz
HDMI1(ARC) HDMI2LAN OPTICAL YPbPr
VIDEO
L R
RF USB
HEADPHONE
TF Card
HDMI3
USB
