Haier LE40B50 User Manual

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080p.
W R
G
B
R
VIDEO EQUIPMENT with YPbPr
W
R
G
B
R
W
R
W R
HDMI
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y
Y Pb Pr
AV L R
AC-INPUT
100-240V~50/60Hz
W
Y
R
AV2 IN
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y)
B
G
Yellow (video)
Y
HDMI2 HDMI1 USB
AV OUT/AV2 IN PC AUDIO
VGA RF
AC-INPUT
100-240V~50/60Hz
Y
Pb
PrVIDEO L R
W
Y
R
AV OUT

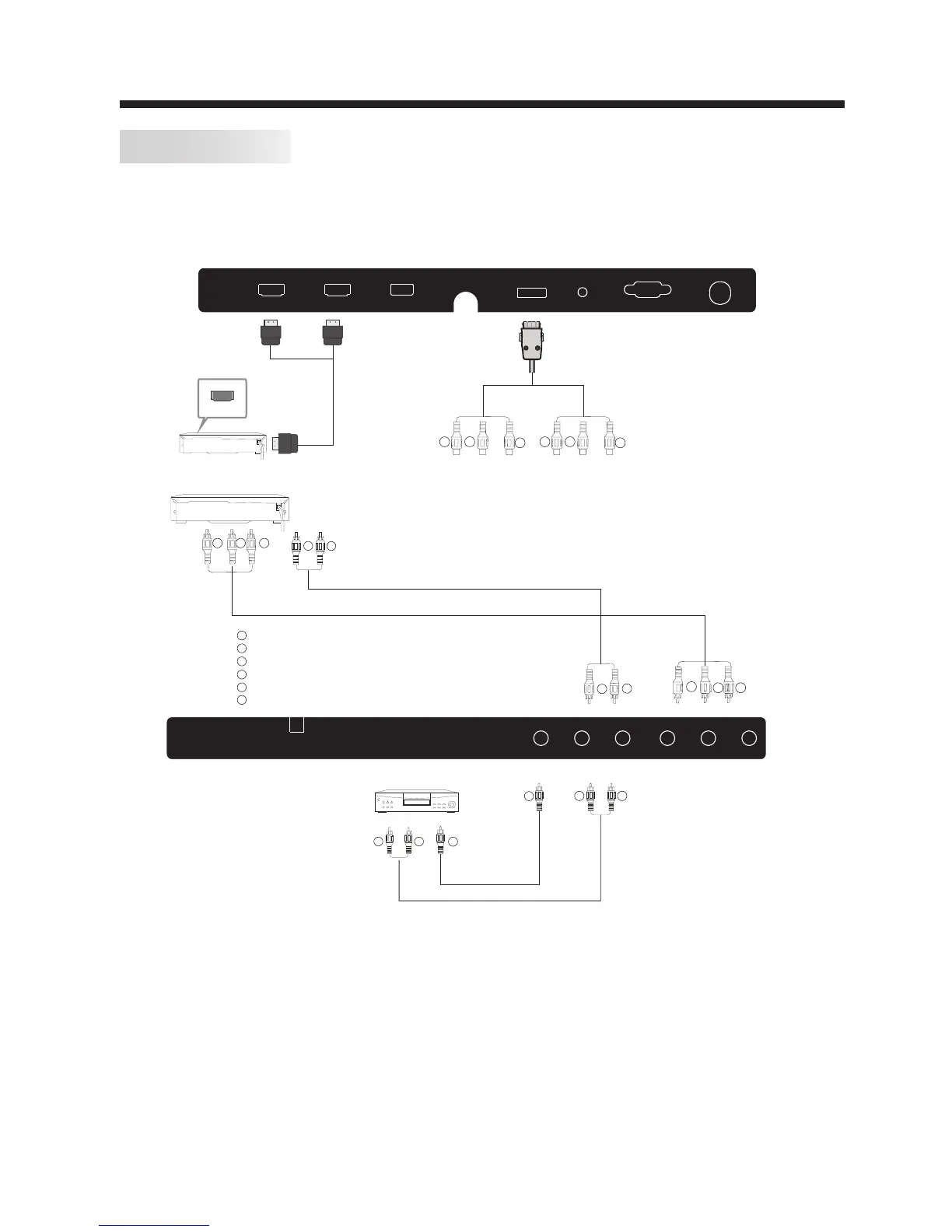

INSTALLATION
This TV provides two group of AV, one group of YPbPr for convenient connection to VCR, DVD
or other video equipment. Please refer to the owner's manual of the equipment to be connected
as well.
You can use the input terminals on TV set rear as follows.
AV EQUIPMENT
-8-
1.Video and YPbPr share one audio channel.
2.When HDMI port get DVI signal, the "PC Audio" channel is changed to receive the
audio for HDMI port.
3.Sometimes it will not support in different device because the device supplys
nonstandard signal.
4.When current source is TV, AV OUT signal is TV; when current source is AV, AV OUT
signal is AV; other sources have no AV OUT signal.
Note:
