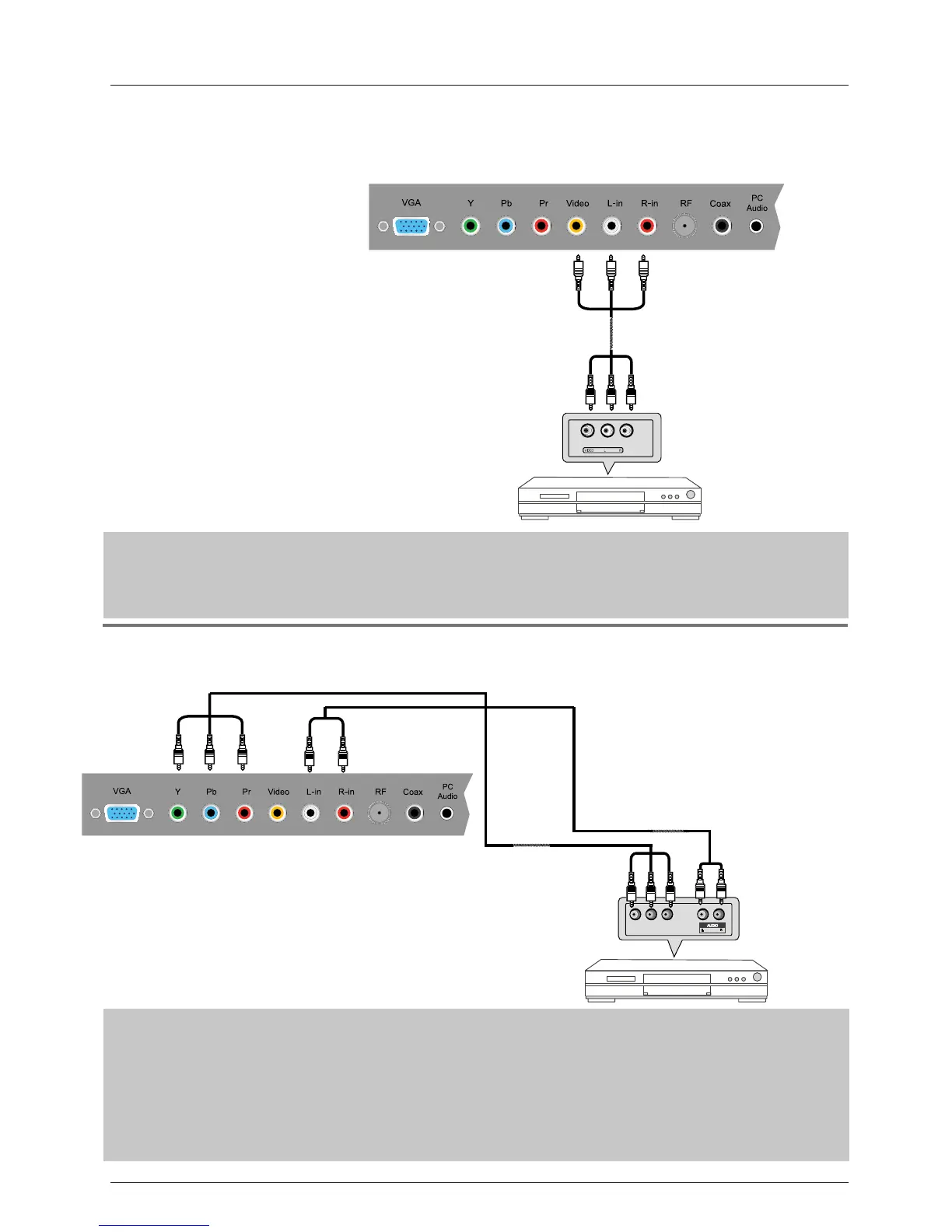

AV Input Connection
Note: All cables shown are not included with the TV.
- Connect the VIDEO and AUDIO output jacks on the DVD player or VCR to the
AV IN jacks on
the TV set using RCA cables.
- Match the jack's colors: Video=yellow, Audio left=White, Audio right=red.
- Turn on the DVD player/VCR, and select “AV” in the input source menu.
RCA Video Cable RCA Audio Cable
RCA Audio Cable
DVD player or VCR
YPbPr (Component) Connection
Note: All cables shown are not included with the TV.
- Connect the YPbPr output jacks on the DVD player or VCR to the
YPbPr input jacks on the TV
set component video (YPbPr) cable.The picture quality is improved compared to the video
(composite) input.
- Match the jacks colors: Y=Green, Pb=Blue, Pr=red.
- Connect the audio output jacks on the DVD player or VCR to the audio input jacks on the back
of the TV with a RCA audio cable.
- Turn on the DVD player or VCR, and select “YPbPr” in the input source menu.
DVD player or VCR
Component Video
(YPbPr) Cable
Y Pb Pr
Connection
