Haier YR-E16b - Detailed Swing Functionality; Deflector Angle Adjustment and Definitions

Page 21
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
3� If no swing is set, the SWING key in the main interface is used
for adjusting the fan speed.
4� If Up/Down and Left/Right swing with no angle is set, swing
key in the main interface controls open and close of swing.
5� If Up/Down and Left/Right swing with angle is set, the swing
icon will ash after pressing the swing key in the main interface.
Next press Left/Right key to adjust angle. Swing key is used
for shifting Up/Down swing and Left/Right swing. There is no
operation for 5s after swing icon ashes, the icon will be static
indicating quitting adjustment.

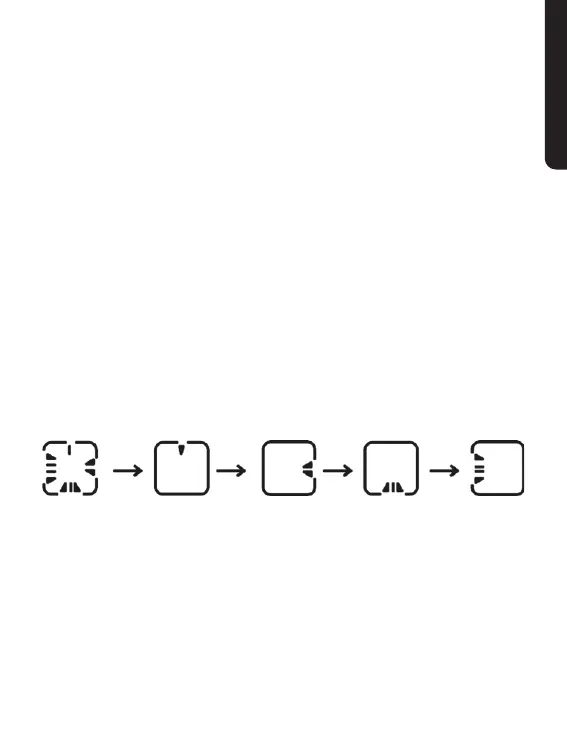

6� If the indoor unit is a four-way cassette model, swing function
in the menu is invalid. Swing key in the main interface is used for
changing the deector. The order four deectors->deector
1->deector2->deector3->deector4->four deectors. The
deector ashes for 5s when it is selected ,then press Left/
Right key to adjust swing angle of this deector at the same
time.
7� Angle denition:
Up/Down swing:
1 stands for angle 1,2 stands for angle 2,3 stands for angle
3,4 stands for angle 4,5 stands for angle 5, 1 and 2 stand
for health airow up,4 and 5 stands for health airow down,
the circulation of 1->2->3->4->5 ->4->3->2->1 stands for
automatic swing.
