Haier YR-E16b - Installation Procedure; Wired Controller Wiring Steps

Page 37
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
Installation
Wired Controller Wiring

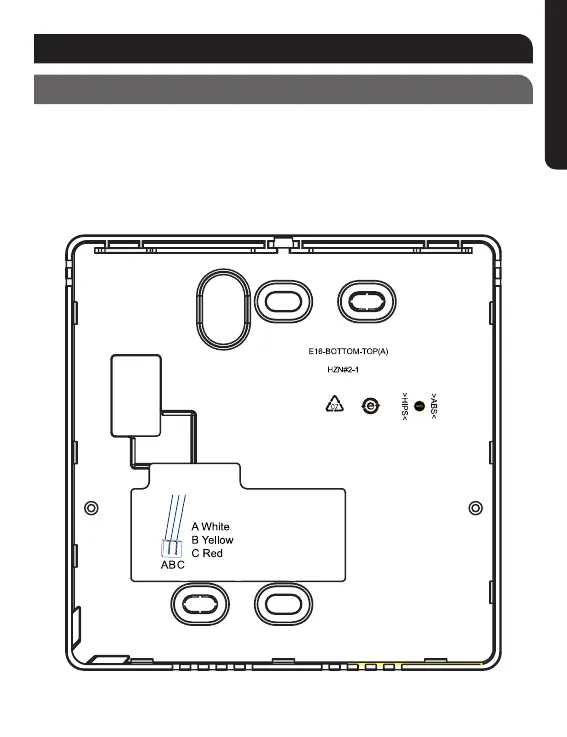

1� First put the communication wire through the hole in the back
cover.
2� Connect the communication wire to CON4 port of the wired
controller. Finally, put the front cover of wired controller on to
the back cover to complete the installation.
