Haier YR-E16b - Wiring Connection Methods; Single and Multi-Unit Wiring Configurations

Page 38
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0

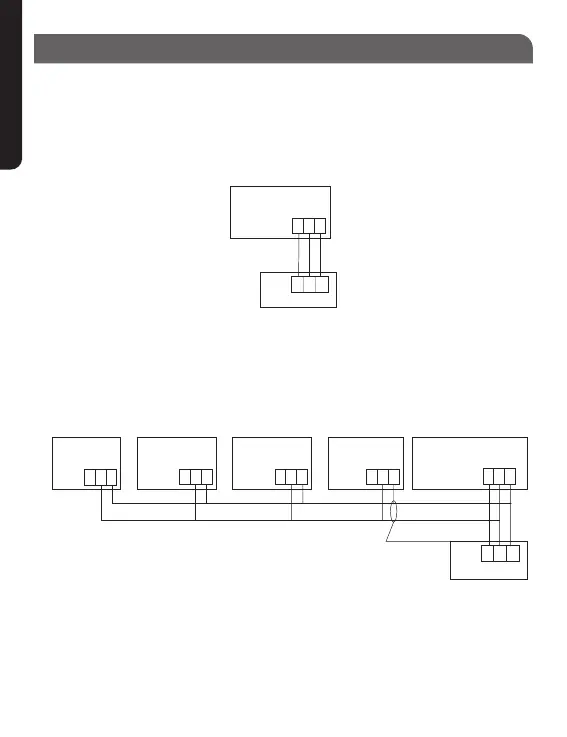

Wiring connection methods
There are three methods connect the wired controller to the
indoor units.
A� One wired controller controls one indoor unit; the indoor
unit connects with the wired controller through a 3 conductor
shielded cable.
A
A
B
B
C
C
Indoor 1
Polar wire
Wire controller
Wire controller
B� One wired controller can control up to 16 sets of indoor units
(max); A 3 conductor shielded cable must connect the
wired controller and the Main unit (the indoor unit connected
to the wire controller directly). The others connect to the
Main unit also through a 3 conductor shielded cable.
A A A A A
A
B B B B B
B
C C C C C
C
Indoor 1 Indoor 2 Indoor N Indoor 15 Indoor 16
(master unit)
Wire controller Wire controller Wire controller Wire controller Wire controller
Wire controller
Control wiring of wire
controller, polar.
