Hailo ProfiStep multi - Dismantling the Basic Scaffold

17
GB
1.
M
10 x 56 0
M10x600
1.
4x
4x
2x
1627 mm
3.
2x
2.
8x
2.
4x

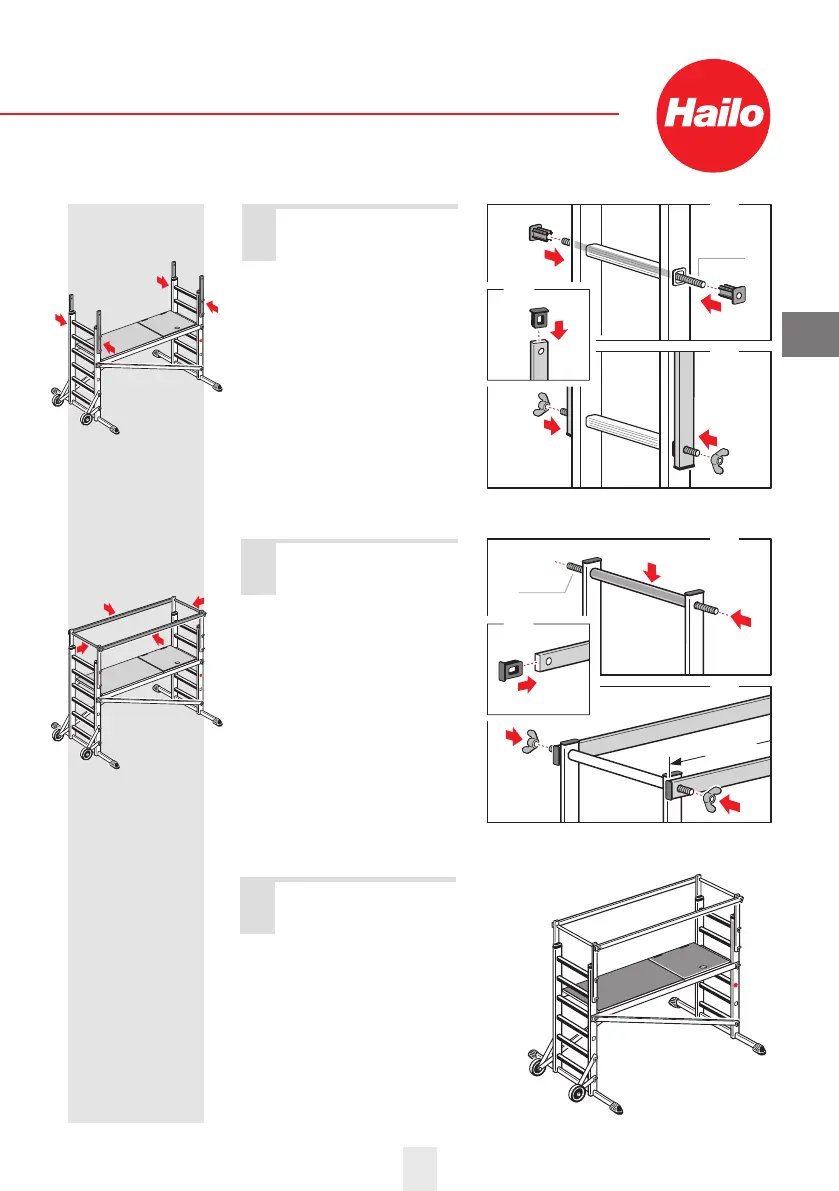

First assemble the four
upper ladder rungs with
threaded rods and guide
stops.
Insert end caps into four
rung stays.
Mount the rung stays and
fasten using wing nuts.
6
7
First assemble two threaded
rods with a spacer tube in
the highest position on the
rung stays.
Insert end caps into two
platform stays.
Mount the platform stays
and fasten using wing nuts.
Attaching the
platform stays
Assembling the
rung stays
Dismantling the
basic scaffold
The aluminium ladder
scaffolding is dismantled in
the reverse sequence to
erection.
