Hailo ProfiStep multi - Page 15

16
ProfiStep
®
multi aluminium ladder scaffoldingProfiStep
®
multi aluminium ladder scaffolding
4
1
1
4
2.
1.
M
10 x 56 0
2x
1.
M10x560
2x
2x
1835
2.
3.
4x
2x
4x
2x

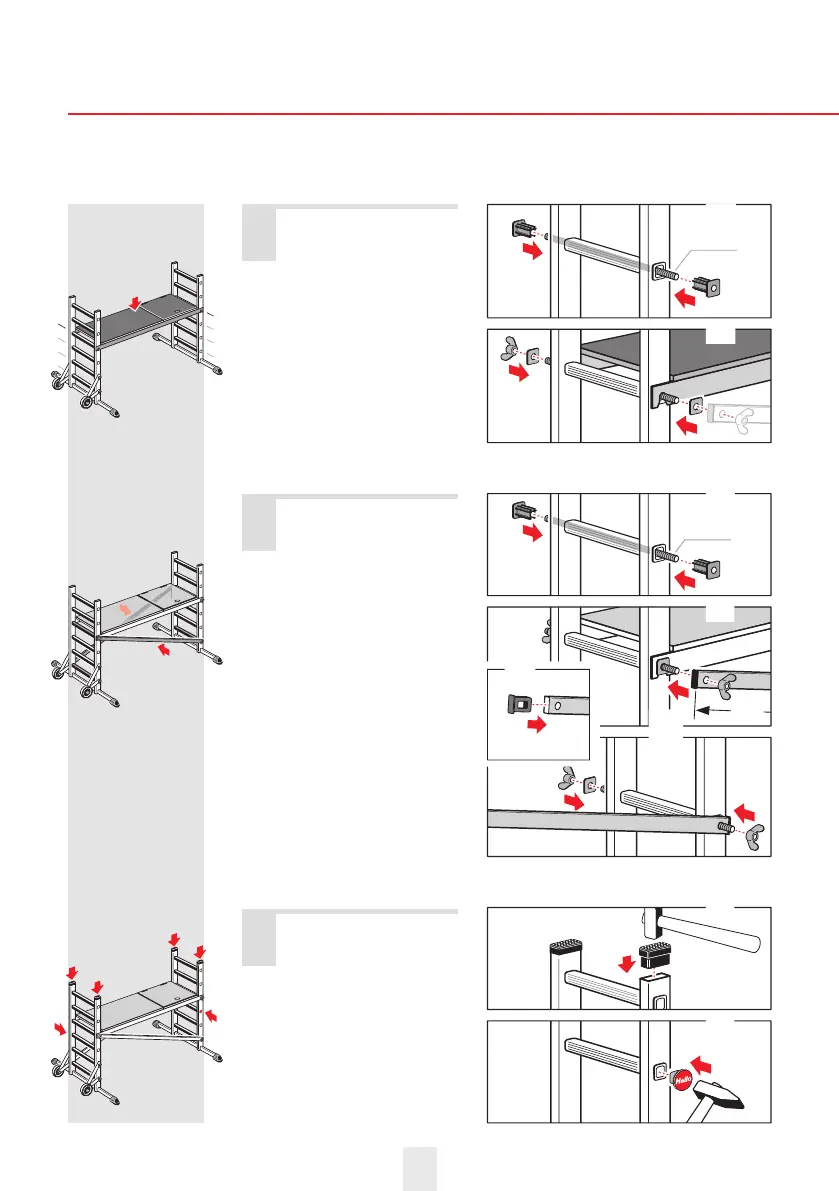

First assemble two ladder
rungs with the threaded rods
and the guide stops.
Hang the working platform
from the pre-assembled
ladder rungs, and fasten
with the U-shaped washers
and wing nuts.
3
4
5
Attaching the
working platform
Attaching the
diagonal stays
Insert the capping feet into
the top of the ladder
uprights, and insert the
Hailo disc as shown into
the rung.
First assemble a ladder
rung with a threaded rod
and the guide stops.
Equip both diagonal stays
with end caps.
Attach the diagonal stay in
the position shown using
wing-nuts (inserting an
additional U-shaped
washer on the opposite
side to the stay).
