Hakko Electronics HJ3100 - Page 13

©1997, AMERICAN HAKKO PRODUCTS, INC.
ALL RIGHTS RESERVED
13
HJ3100
999-189
3" neoprene duct
cut to length
999-169
3 1/2" hose clamps
999-164
articulated arm
999-163
3" to 2" reducer
999-150
2" ESD duct
cut to length
999-165 bracket
(clamp to bench
)
999-636
2 1/2" hose clamps
nozzle attaches here
(see above)
999-167 8.25" tube (kit -02)999-166 8" nozzle (kit -01) 999-170 clear hood (kit -03)

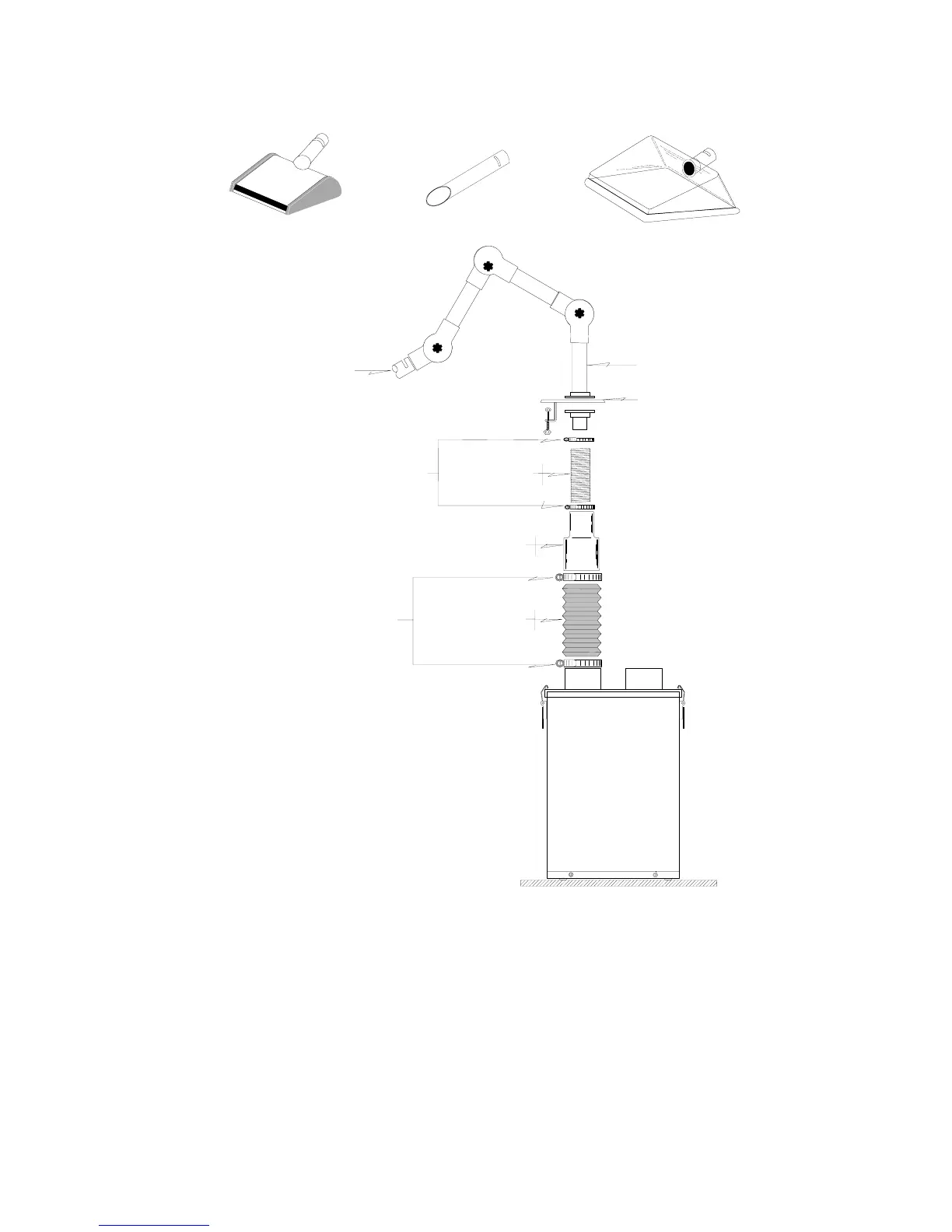

Figure 6.
999-207 kit installation.
