OPERATION
(1) ATTACHING THE SIDE CABINET TO THE MAIN CABINET
3

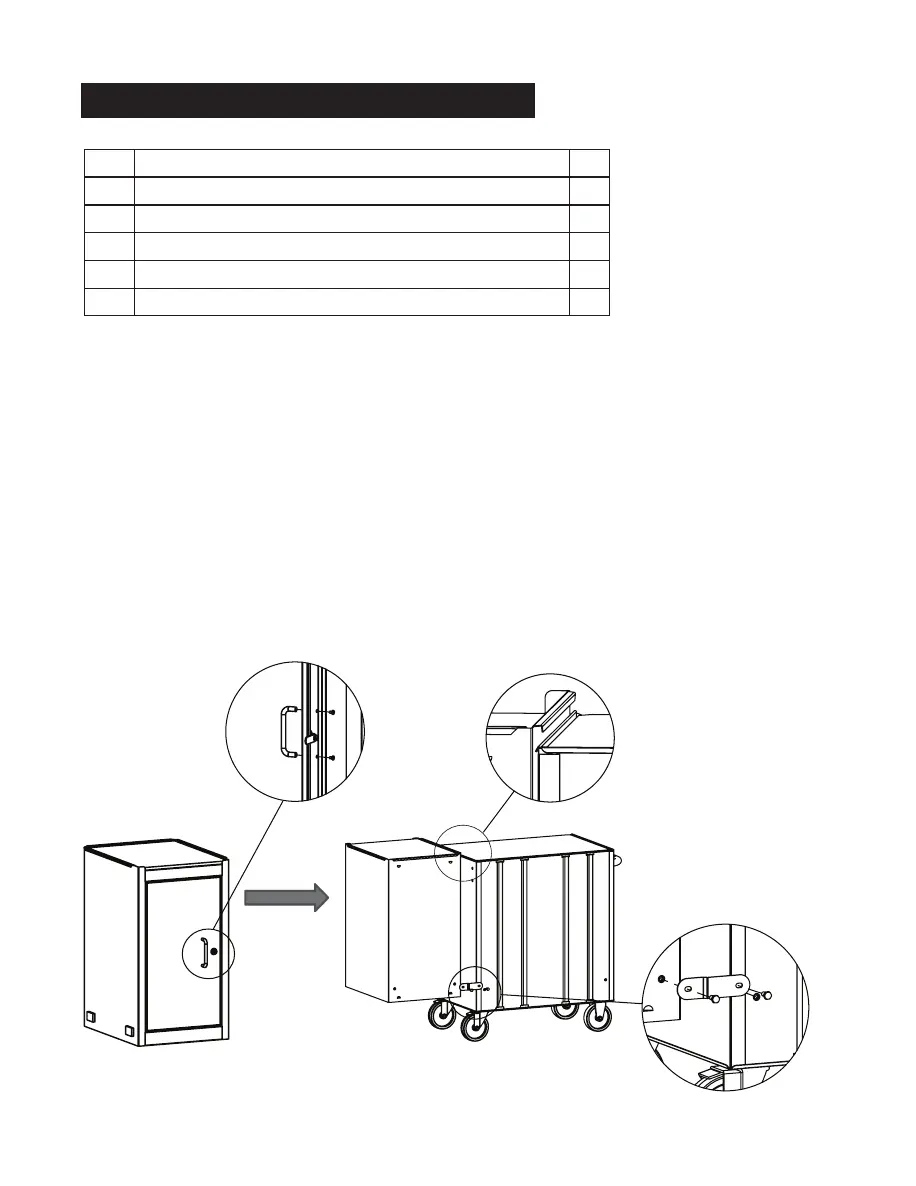

Fig.1
Fig.2
The Side cabinets can be fitted to either side of the main cabinet using the method below.
The handle of the main cabinet may need to be removed to allow fitment of side cabinets
to both sides. The handle can not be installed on the side cabinets.
1. Install the door handle with the bolts provided. (For 1 Door 1 Shelf Side Cabinet Only.
Refer to fig.1.)
2. Peel off the backing and attach the 2 adhesive bumpers onto the lower section of the
side panel that will be up against the main cabinet. Refer to fig.1.
3. Lift and hang the side cabinets top lip over the top edge of the main cabinet. Refer to fig.2
4. Using the bracket and bolts attach the two cabinets together and tighten. Refer to fig.2.
5. For safety, fill the main cabinet with tools first and then load the side cabinets.
1
2
3
4
5
Part Description Qty
Bracket
M6 x 12 Bolt
Door Handle (for 1 Door 1 Shelf Side Cabinet Only)
M4 x 10 Bolt (for 1 Door 1 Shelf Side Cabinet Only)
2
1
2
1
2
Adhesive Bumper
To Next Page
