HALNy HL-4GMV - Rear Panel

HALNy HL-4GMV Quick Installation Guide
5
LED
Color
Status
Description
Phone1-2
Green
On
Voip account is registered
Blink
Phone call
Off
Port deactivated or Voip account is unregistered
WPS
Green
On
Pairing ok
Blink
In pairing
Off
Not activated/not triggered
Table 1. ONU LED Indication Table
Table 2.PON LED Status Instruction
2.2.2 Rear Panel

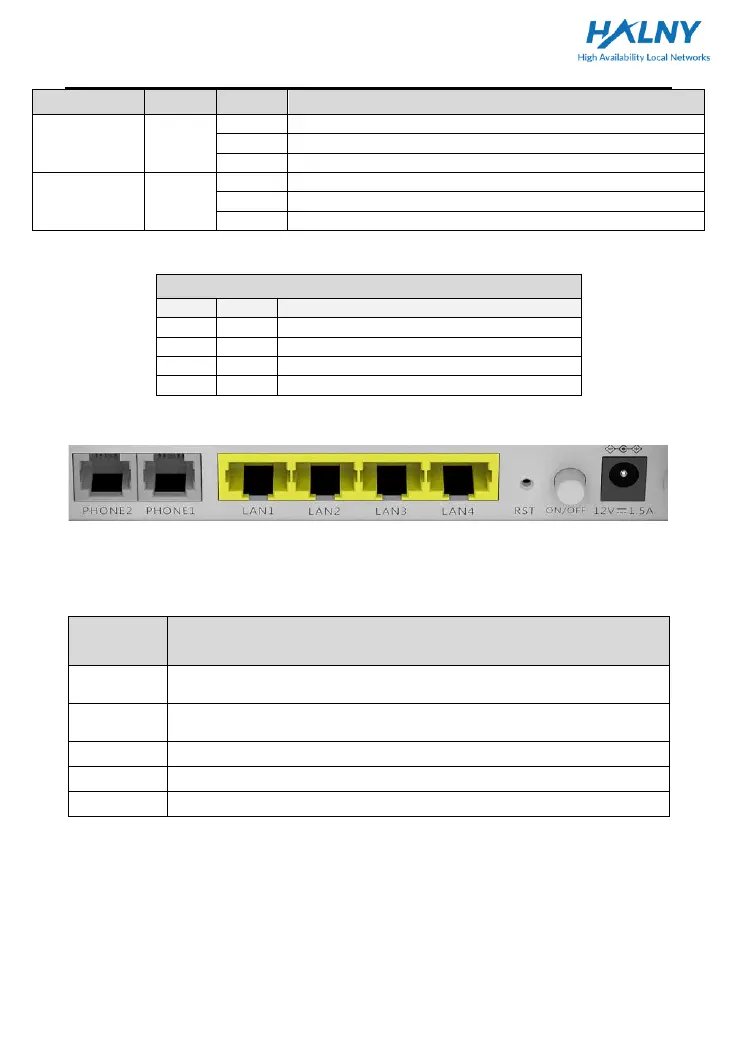

Fig 2. Rear Panel
ONU Rear Panel Description：
Interface /
Button
Function
LAN1-4
Ethernet interface, for connecting to a computer or an Ethernet
interface of a switch.
RST
Press the button for 5 seconds to reboot ONU and restore the factory
default configurations.
Power
Connect power cable
ON/OFF
Turn on/off the power supply.
Phone 1-2
RJ-11 Telephone Port
Table 3.Rear Panel port description
PON LED Status Instruction
PON
LOS
Description
Off
Off
The ONT is disabled by the OLT
Flash
Off
The ONT is registering to the OLT
On
Off
The ONT has already registered to OLT
Off
Flash
The fiber is not connected properly
