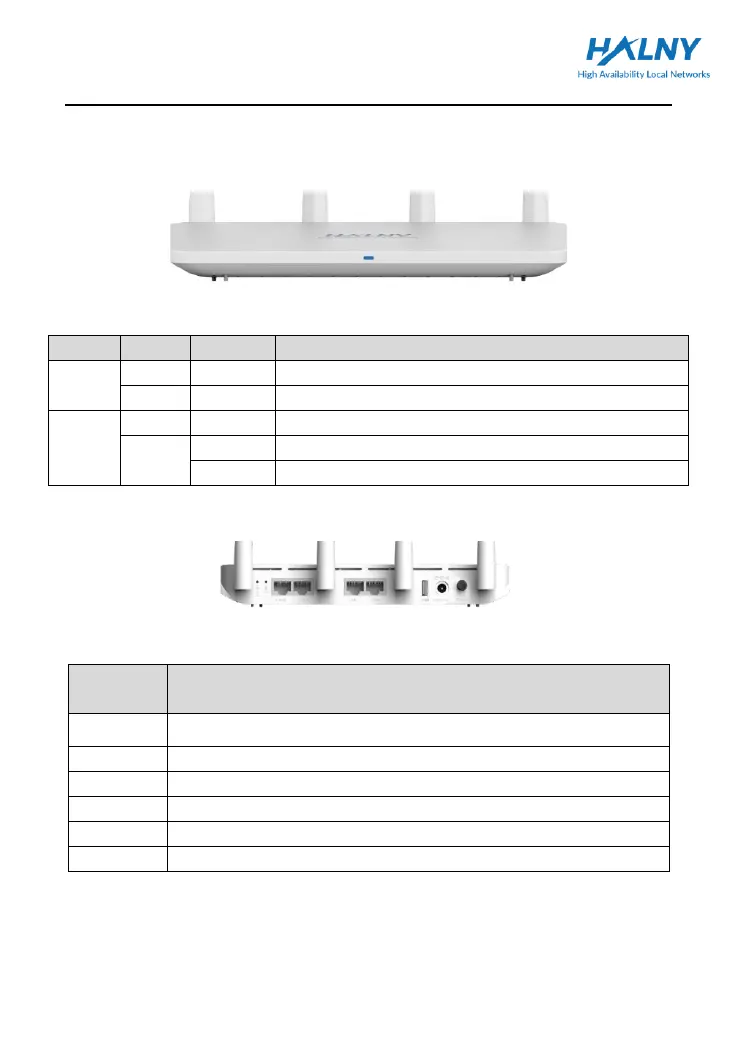

2.2 Front and Rear Panel
The description of the front panel and the rear panel of the router as follows.
2.2.1 Front Panel
Fig. 1 - Front Panel
Mesh
Color
Status
Description
Off
Red
On
The power works normally.
Green
On
WAN interface is up and connected with ISP servies
On
Red
Blinking
No connection with mesh controller
Green
Blinking
Connecting to mesh controller
On
Connected to mesh controller
Table 1. LED Indication Table
2.2.2 Rear Panel
Fig 2. Rear Panel
Interface /
Button
Function
LAN
Ethernet interface, for connecting to a computer or an Ethernet interface of a
switch.
WAN
Ethernet interface, for connecting to Wide Area Network
Reset
Press and hold to reset
WPS
Press and hold for 5 seconds to pair device via WPS
Power
Turn on/off power
USB
USB 2.0 port
Table 3.Rear Panel port description
