EcoloAir Operation, Maintenance & Service Manual
OM-020/052017/rev5/EN
FILTER AND ODOR REDUCING MODULES
The filter and odor reducing modules are made up of the following:
1. A 2” (51mm) MERV 8 (Minimum Efficiency Reporting Value) 30/30 UL Class 1 disposable
pleated Pre-Filter
2. A 15” (381 mm) MERV 14 (Minimum Efficiency Reporting Value) Hi-Flo 95 Class 1 dispos-
able Bag Filter.
3. A 12” (305 mm) MERV 16 (Minimum Efficiency Reporting Value) Micretain UL Class 1 Final
Filter
4. Odor Reducing Module
5. Fire Damper
1
Hinged Access Door (Pre Filter & Bag Filter)
2 Pre Filter
3 Bag Filter
4 Hinged Access Door (Final Filter)
5 Final Filter
6 Ecolo Odor Reducing Module
7 Screwed On Access Panel
8 Door Latch
9 Ecolo Support Bracket
10 Fire Damper

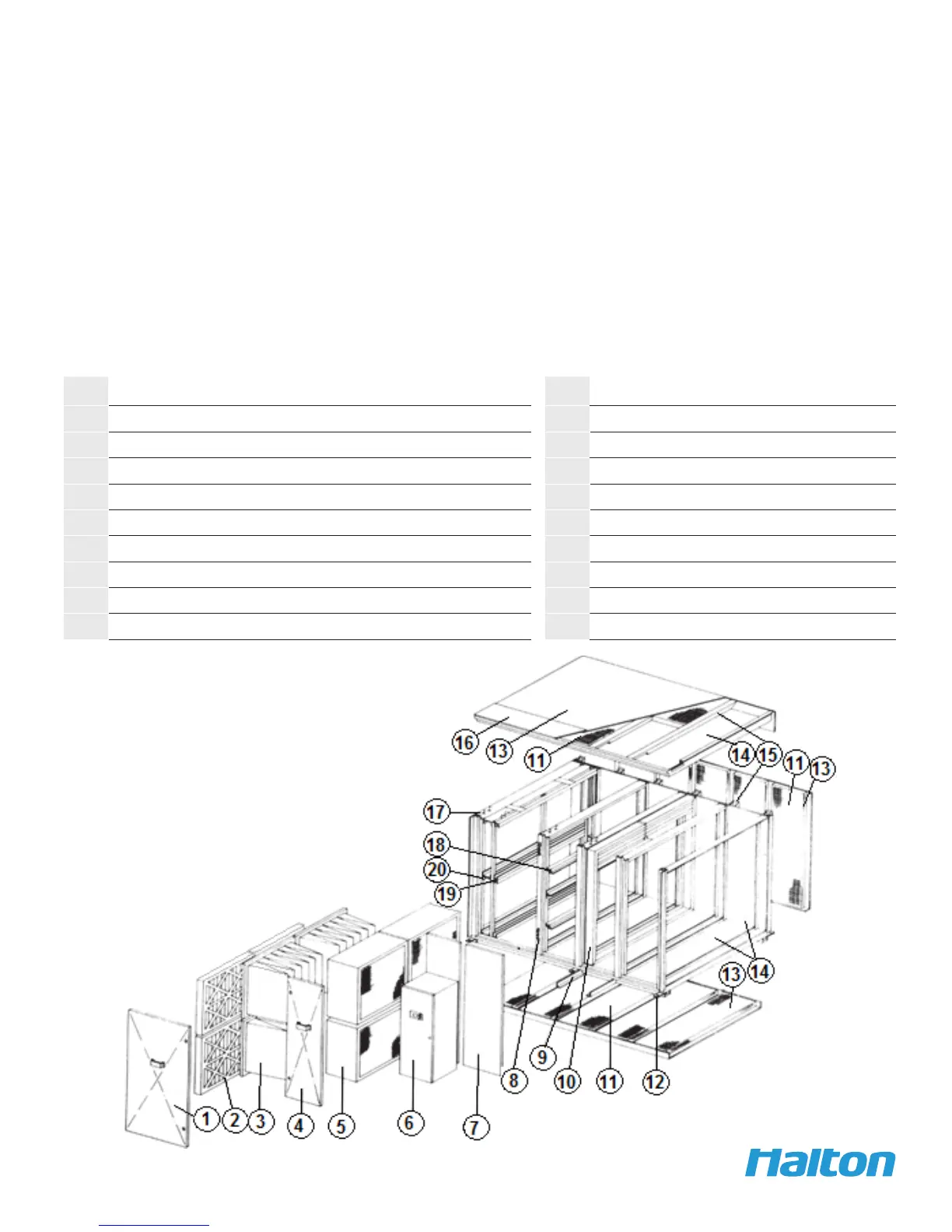

FILTER AND ODOR REDUCING MODULE PARTS
FILTER AND ODOR REDUCING
MODULE PARTS VIEW
Not to scale for reference only.
11
Insulation
12 Hanger or Lifting Bracket
13 16 Gauge Welded Fire Proof Panels
14 Hanging/Anchor Point
15 Stiffener Channels
16 Removable Pressure Tube Cover
17 Pressure Tube Ports
18 Final Filter Track
19 Bag Filter Track
20 Pre Filter Track
