ECOLOAIR CONTROL PANEL
Features:
• Service connection to 120/1/60 Hz.
• Microprocessor based.
• User friendly touch screen for easy monitoring of parameters in the system.
• One control panel per system controls exhaust and MUA fan.
• Remote system status monitoring (Internet remote connection as an option).
• Setting of the hood airflows (calibration) through touch panel.
• Monitors each filter condition and maintains constant airflow in the system regardless of the
filter condition.
• Setting of odor control unit operation through the touch panel.
• Monitors system and displays text messages for all alarms in the system.
• Size 15” x 24” x 7”.

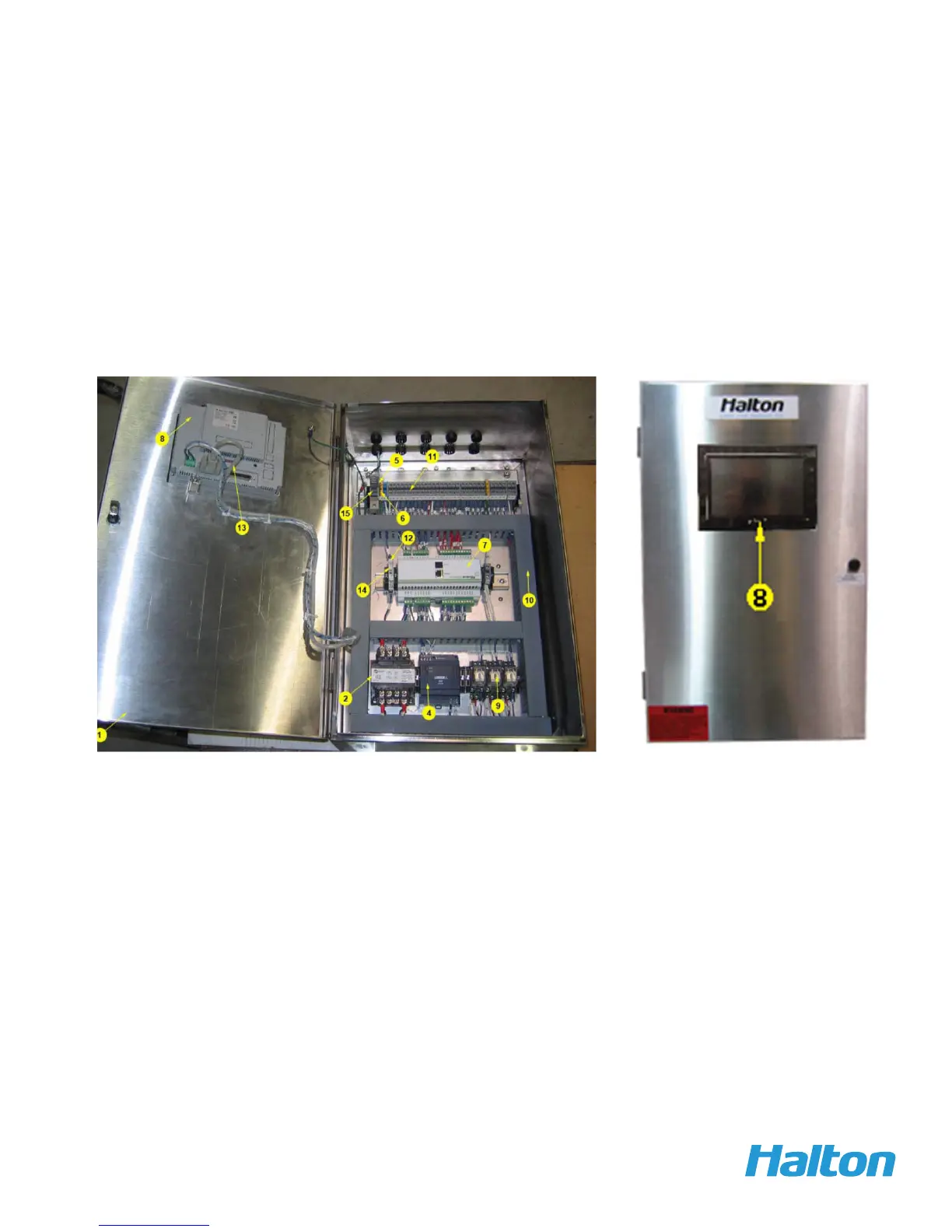

Main components of the control panel are:
1. Enclosure Panel
2. Control Transformer
3. (Not Used)
4. Power Supply 24 VDC
5. Fuse Holder (Midget Type)
6. Terminal Block ---- Ground
7. PLC Controller
8. HMI (Human Machine Interface) - Touch Screen
9. Control Relay
10. Wire Duct
11. Terminal Block ---- Distribution
12. Fuse Holder (Glass Type)
13. HMI Connection Cable
14. Glass Fuse
15. Fuse (Time Delay)
