Hameg CombiScope HM1508-2 User Manual

9
Subject to change without notice

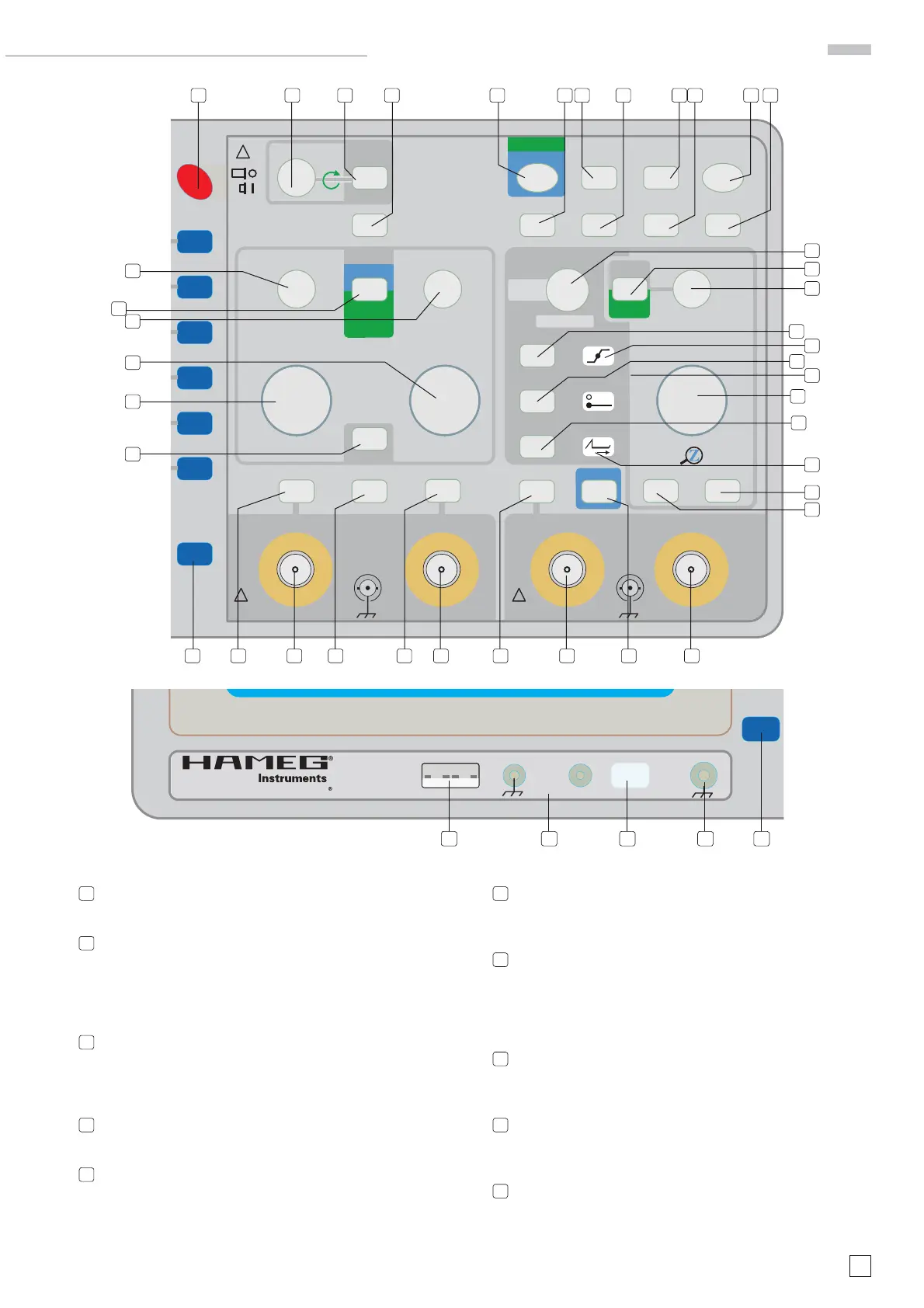

Front Panel Elements – Brief Description
35
INPUT CH2 (BNC socket) 45
Channel 2 signal input.
36
CH3/4 (pushbutton) 45
Digital mode: Logic signal channels 3 and 4. On condition
OFF, CH4 becomes the external trigger input.
Analog mode: CH4 can be used for intensity modulation (Z)
if external triggering is switched off.
37
FFT (pushbutton) 46
Calls FFT menu, offers window and scaling selection, as well
as function switch off. Calls FFT menu if FFT mode is present.
Direct switch over from digital Yt mode to FFT mode.
38
CH3 LOGIC INPUT (BNC socket) 47
Input for logic signals in digital mode.
39
CH4 LOGIC INPUT (BNC-socket) 47
Digital mode: Input for logic signals or external trigger
signals. Analog mode: Input for intensity modulation (Z) or
external trigger signals.
40
PROBE / ADJ (socket) 47
Square wave signal output for frequency compensation of
x10 probes.
41
PROBE / ADJ (pushbutton) 47
Calls menu that offers COMPONENT Tester operation, fre-
quency selection of PROBE ADJ square wave signal, hard-
ware and software information and details about interface
(rear side) and “USB Stick“ (fl ash drive) connector.
42
COMPONENT TESTER (2 sockets with 4 mm Ø) 48
Connectors for test leads of the Component Tester. Left
socket is galvanically connected with protective earth.
43
USB Stick (USB fl ash drive connector; front side) 48
Enables storage and load of signals and signal parameters
in connection with USB fl ash drives.
44
MENU OFF (pushbutton) 48
Switches the menu display off or one step back in the menu
hierarchy.
VA R VA R VA R x10
FFT-
Marker
POSITION 1 POSITION 2
HORIZONTAL
CH 3 CH 4
MATH
SAVE/
RECALL
AUTOSET
ACQUIRE SETTINGS HELP
CH 1/2
VOLTS / DIV
SCALE · VA R
VOLTS / DIV
SCALE · VA R
TIME / DIV
SCALE · VA R
20 V 1 mV 20 V 1 mV
X-POS
INPUTS
1MΩII15pF
max
400 Vp
X-INP
LOGIC
INPUTS
1MΩII15pF
max
100 Vp
INTENS
!
TRIGGER
LEVEL A/B
HM1508-2
ANALOG
DIGITAL
MIXED SIGNAL
OSCILLOSCOPE
1 GSa
· 1 MB
150 MHz
50s 5ns
CURSOR
DIGITAL
ANALOG
DELAY
CH 3/4
MA/REF
ZOOM
FOCUS
TRACE
MENU
CAT I
!
CAT I
!
MODE
FILTER
SOURCE
TRIG ’d
NORM
HOLD OFF
VERT/XY CH 3/4
CURSOR
MEASURE
FFT
RUN / STOP
CH 1 CH 2
TRIG. EXT. / Z-INP.
CH 1 CH 2 HOR MAG
AUTO
MEASURE
POWER
POWER
MENU
MENU
OFF
OFF
13
44
19
121110
1 2 3 4 5 6 7 8 9
15
14
17
16
18
31
34
32
33 35 36 38 37 39
26
27
24
23
21
24
28
22
25
29
30
COMBISCOPE
USB
Stick
COMP.
TESTER
PROBE
ADJ
POWER
MENUMENU
OFF
OFF
43 42 41 40 44
