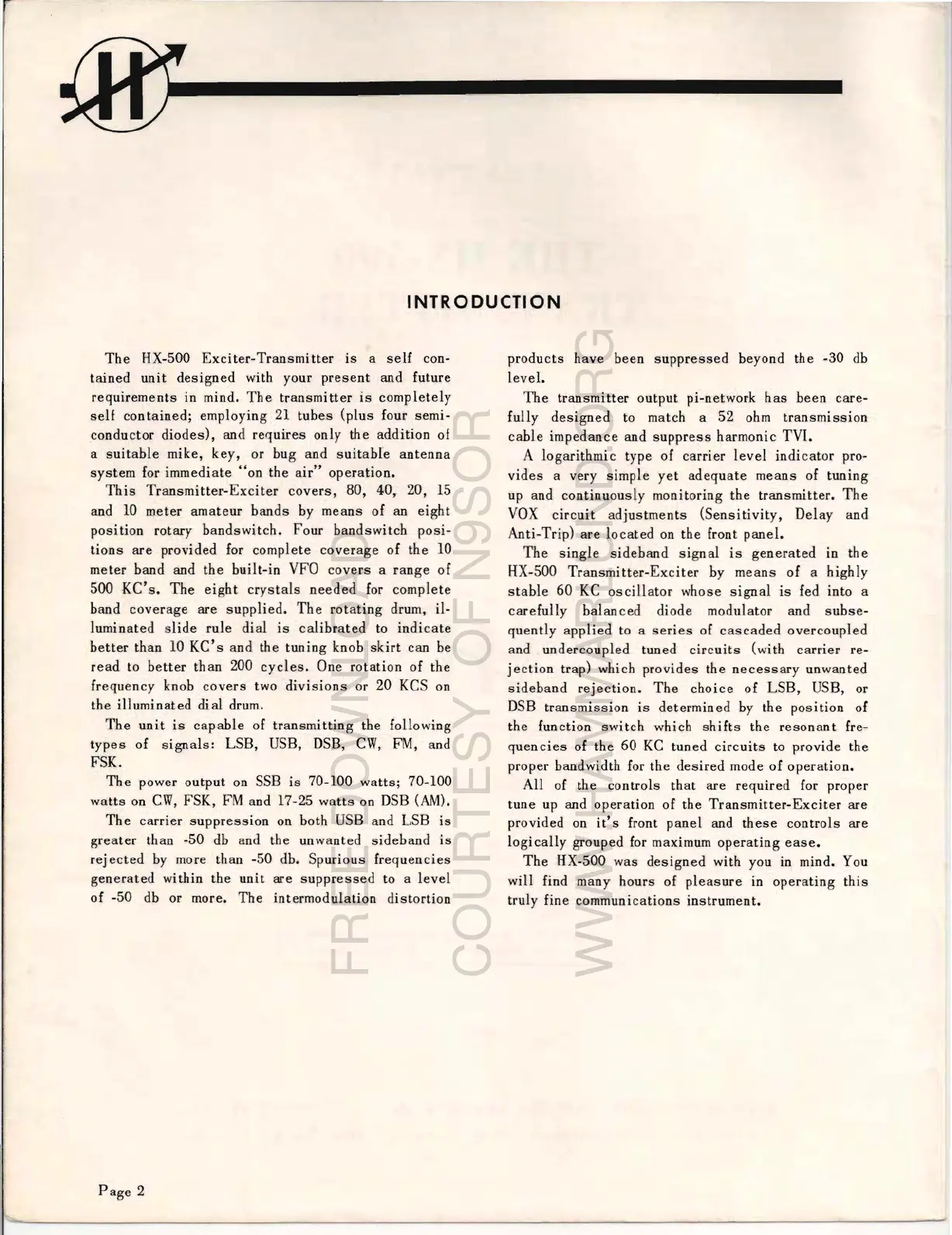

INTRODUCTION
The
HX-500
Exciter-Transmitter
is
a
self
con-
tained
unit
designed
with your
present
and
future
requirements
in
mind.
The
transmitter
is
completely
self
contained;
employing
21
tubes
(plus
four
semi-
conductor
diodes),
and
requires
only
the
addition
of
a
suitable
mike,
key,
or
bug
and
suitable
antenna
system
for
immediate"
on
the
air"
operation.
This
Transmitter-Exciter
covers,
80,
40,
20,
15
and 10
meter
amateur
bands
by
means
of
an
eight
position
rotary
bandswitch.
Four
bandswitch
posi-
tions
are
provided
for
complete
coverage
of
the
10
meter
band
and
the
built-in
VFO
covers
a
range
of
500
KC's.
The
eight
crystals
needed
for
complete
band
coverage
are
supplied.
The
rotating
drum, il-
luminated
slide
rule
dial
is
calibrated
to
indicate
better
than
10
KC's
and
the
tuning
knob
skirt
can
be
read
to
better
th an 200
cycles.
One
rotation
of
the
frequency
knob
covers
two
divisions
or 20 KCS on
the
illuminated
dial
drum.
The
unit
is
capabie
of
transmitting
the
following
types
of
signals:
LSB,
USB, DSB,
CW,
FM, and
FSK.
The
power
output
on SSB
is
70-100
watts;
70-100
watts
on
CW,
FSK,
FM
and 17-25
watts
on DSB (AM).
The
carrier
suppression
on
both
USB and
LSB
is
greater
than -50 db and
the
unwanted
sideband
is
rej
ected
by more
than
-50
db.
Spurious
frequencies
generated
within
the
unit
are
suppressed
to
a
level
of
-50
db or more.
The
intermodulation
distortion
products
have
been
suppressed
beyond
the
-30
db
level.
The
transmitter
output
pi-network
has
been
care-
fully
designed
to match a
52
ohm
transmission
cable
impedance
and
suppress
harmonic
TVI.
A
logarithmic
type
of
carrier
level
indicator
pro-
vides
a very
simple
yet
adequate
means
of
tuning
up and
continuously
monitoring
the
transmitter.
The
VOX
circuit
adjustments
(Sensi
tivity,
Delay
and
Anti-Trip)
are
located
on
the
front
panel.
The
single
sideband
signal
is
generated
III
the
HX-500
Transmitter-Exciter
by
means
of
a
highly
stable
60
KC
oscillator
whose
signal
is
fed
into
a
carefully
balan
ced
diode
modul
ator
and
subse-
quently
applied
to a
series
of
cascaded
overcoupled
and
under
coupled
tuned
circuits
(with
carrier
re-
jection
trap) which
provides
the
necessary
unwanted
sideband
rejection.
The
choice
of
LSB,
USB, or
DSB
transmission
is
determined
by
the
position
of
the
function
switch
which
shifts
the
resonant
fre-
quencies
of
the
60
KC
tuned
circuits
to
provide
the
proper
bandwidth
for
the
desired
mode
of
operation.
All
of the
controls
that
are
required
for
proper
tune
up and
operation
of
the
Transmitter-Exciter
are
provided
on
it's
front
panel
and
these
controls
are
logically
grouped
for maximum
operating
ease.
The
HX-500
was
designed
with you in mind. You
will
find
many
hours
of
pleasure
in
operating
this
truly
fine
communications
instrument.
Page
2
