Hammarlund HX-50 - Location of Controls; Control Identification

4 5
flll'l'l.fjlOllfi
t!T~(1iJ
3
2
6 17 18 7 19 20 8 9 10
II
12

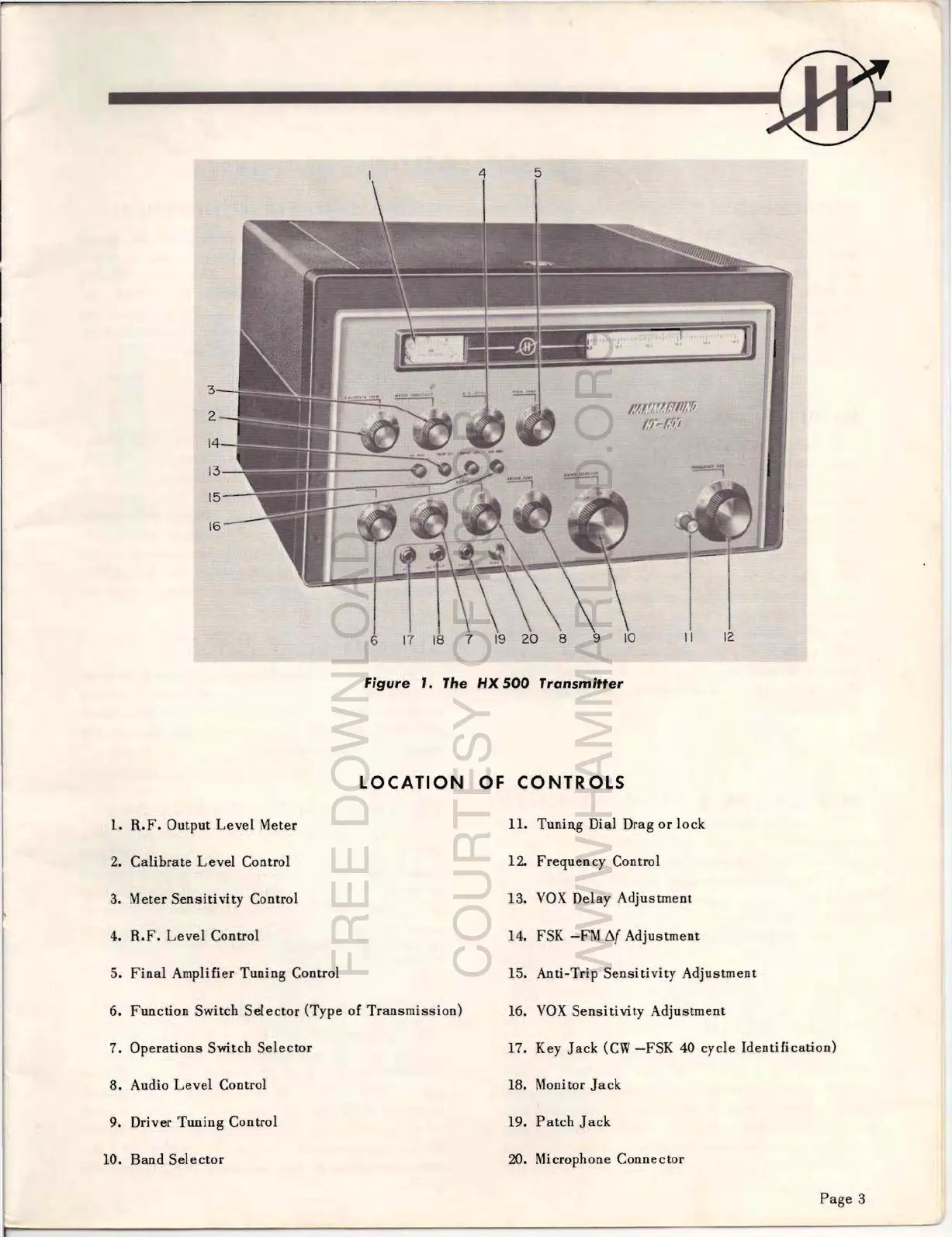

Figure J. The HX 500 Transmitter
1l0CATION OF CONTROLS
I. R.F. Output Level Meter
II. Tuning Dial Drag or lock
2. Calibrate Level Control
12.
Frequency Control
3. Meter
Sensitivity Control
13.
VOX Delay Adjustment
4.
R.F. Level Control 14.
FSK
-FM N Adjustment
5. Final Amplifier Tuning Control
15.
Anti-Trip Sensitivity Adjustment
6.
Function Switch Selector (Type of Transmission)
16. VOX Sensitivity Adjustment
7.
Operations Switch Selector
17.
Key
Jack (CW -FSK 40 cycle Identification)
8.
Audio Level Control 18. Monitor Jack
9.
Driver
Tuning Control 19.
Patch Jack
10.
Band
Selector 20.
Microphone Connector
Page 3
