Hammerhead Stingray - Install Front Spindles; Connect Tie Rod

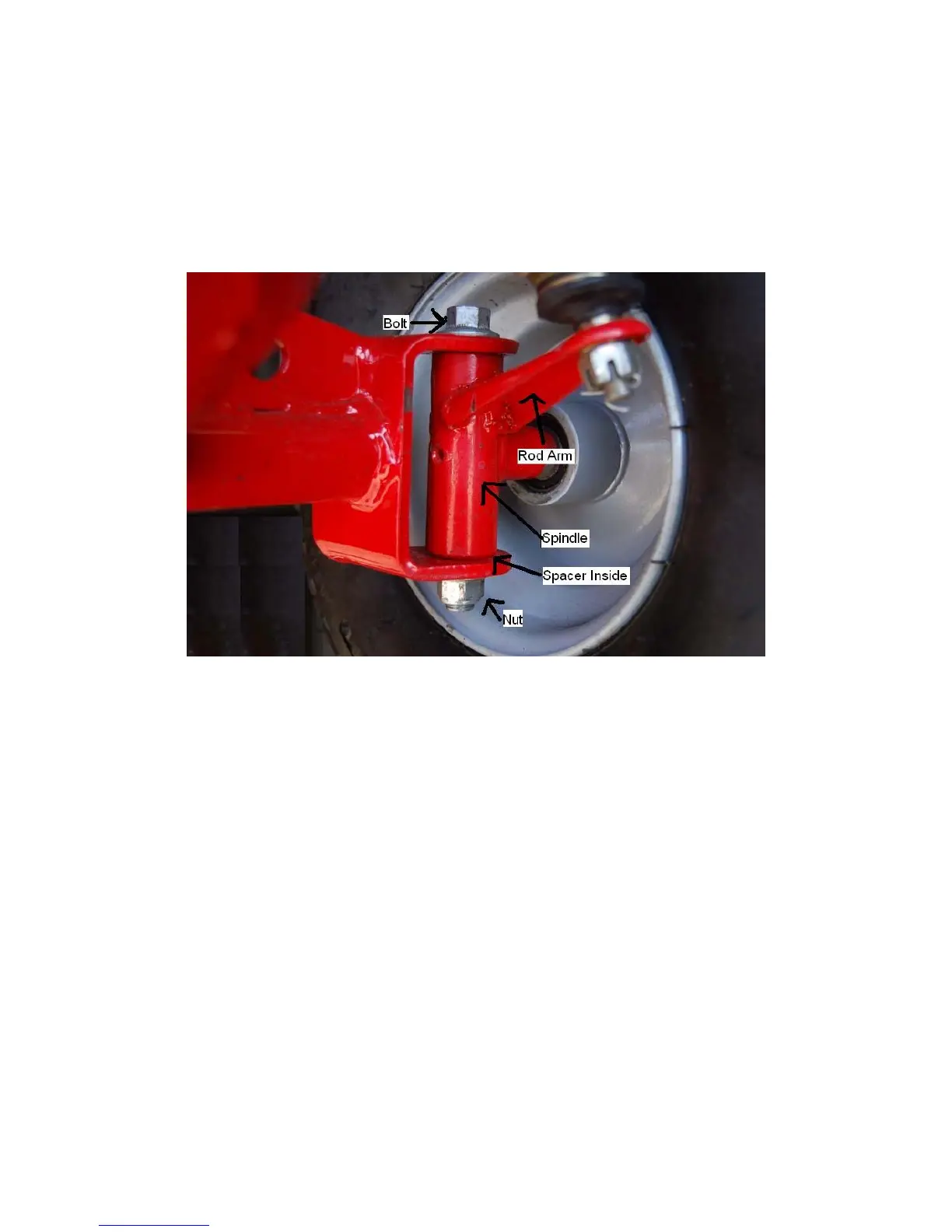

7) Attach front spindles to kart. Tie rod arm should be on the top side and facing
forward. Slide spacer into spindle and slide spindle in frame. Put the bolt from
the top down and put nut on the bottom.
8) Attach rod end to the tie rod arm on the spindle with the stud on the bottom.
