Pedal Busbar Shifters
Pedal switches in all consoles (except Model A consoles below serial number
995) are equipped with busbar shifters similar to those on the manuals. The pedal
busbar shifter is a slotted stud on the rear surface of the pedal switch, near the
left end as you look in at the back. It should be adjusted as described under Manual
Busbar Shifters on page 3 of this section.

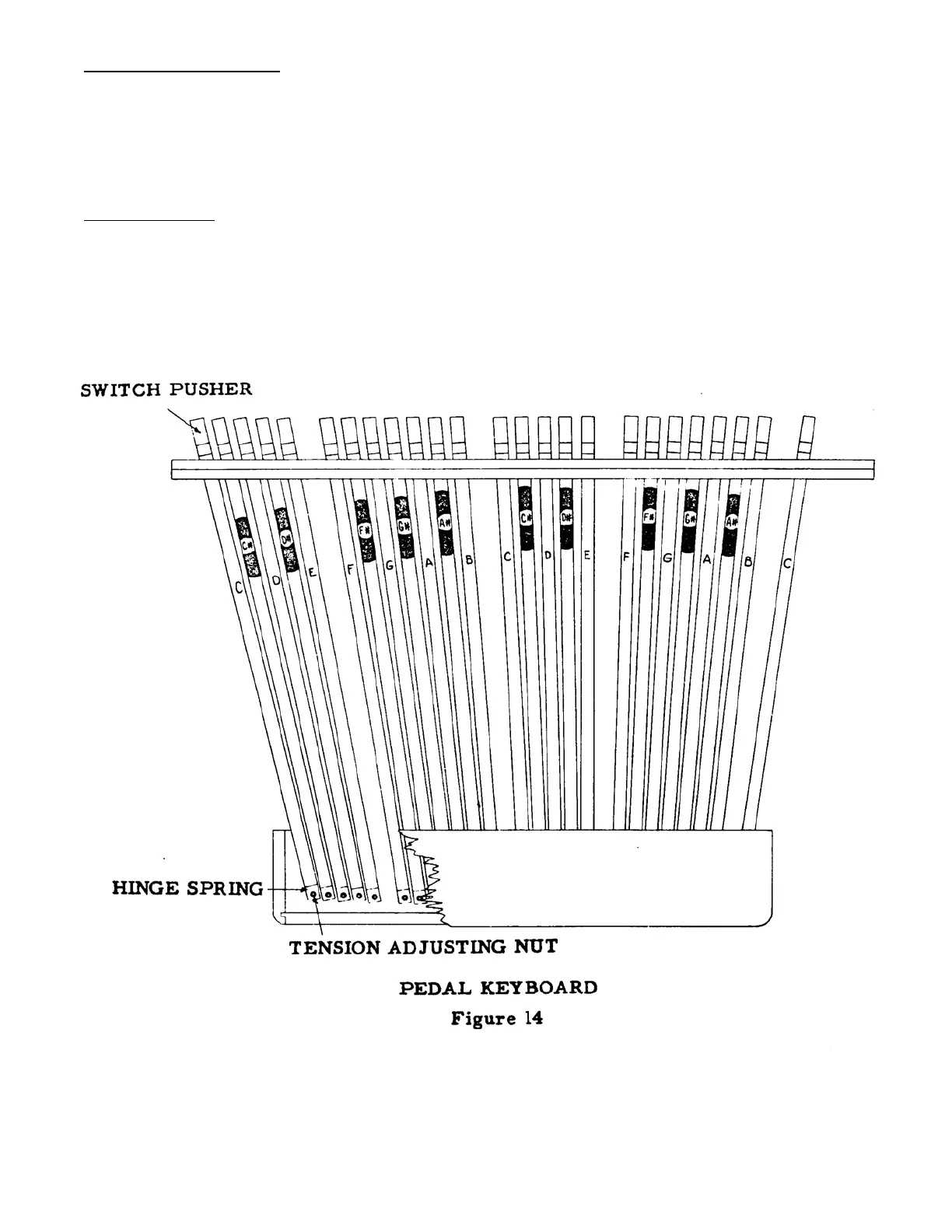

Pedal Keyboard
Pedal keys are set at the factory for average tension, but are adjustable to fit the
requirements of the individual organist. Adjustment is accomp1ished by removal of
the top cover at the back of the pedal keyboard and setting the tension nuts as
desired.
16
