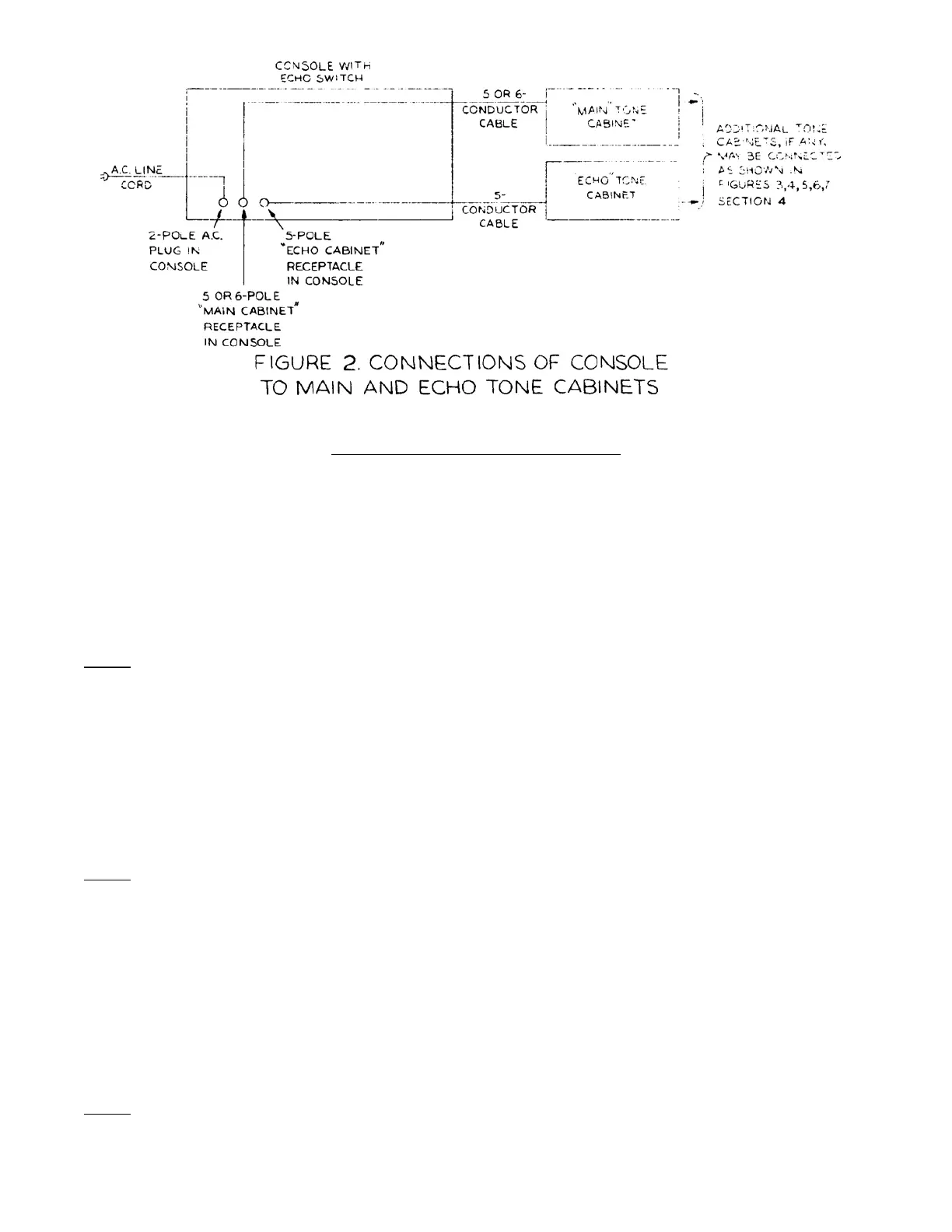

INSTRUCTIONS FOR INSTALLING KIT
1. Disconnect chorus drawbar (if console has chorus generator) from lever inside
console by removing coupling pin. Detach vibrato chorus switch (if any) by removing
knurled nut from front. Remove four screws in music rack end blocks and remove
entire music rack assembly from console.
2. Drill holes for echo switch in music rack base as shown in figure 4. Replace
music rack and other parts. Mount echo switch.
Note: Steps 3 and 4 apply only to console models having B in the type
designation.
3. Disconnect and remove swell pedal connecting rod. If console has chorus
generator, it will be necessary to unfasten preamplifier and rheostat box
(leaving wires connected) and remove mounting channel.
4. Remove 4 screws from pedal switch cover panel, remove key at top of wiring tube
nearest to swell pedal, raise tube a few inches, and lift pedal switch cover panel.
Note: Step 5 applies only to console models having C, D, G, or R in the
type designation.
5. Remove key at top of wiring tube and raise tube a few inches to
permit detaching the outlet box.
6. Unfasten outlet box from base of console, open it, knock out proper receptacle
hole blank (see figure 5) and mount echo receptacle. Solder connections as indicated
in figure 5. Pull twisted pair of wires up through wiring tube. Reassemble outlet
box and attach it to console. Replace pedal switch cover if it was raised in step 4.
Note: For consoles not equipped with outlet box, see special instructions
at end of this section.
