HAMPTON BAY 2102FP - Attach Back Panel; Install U Shape Ring; Attach Last Side Panel

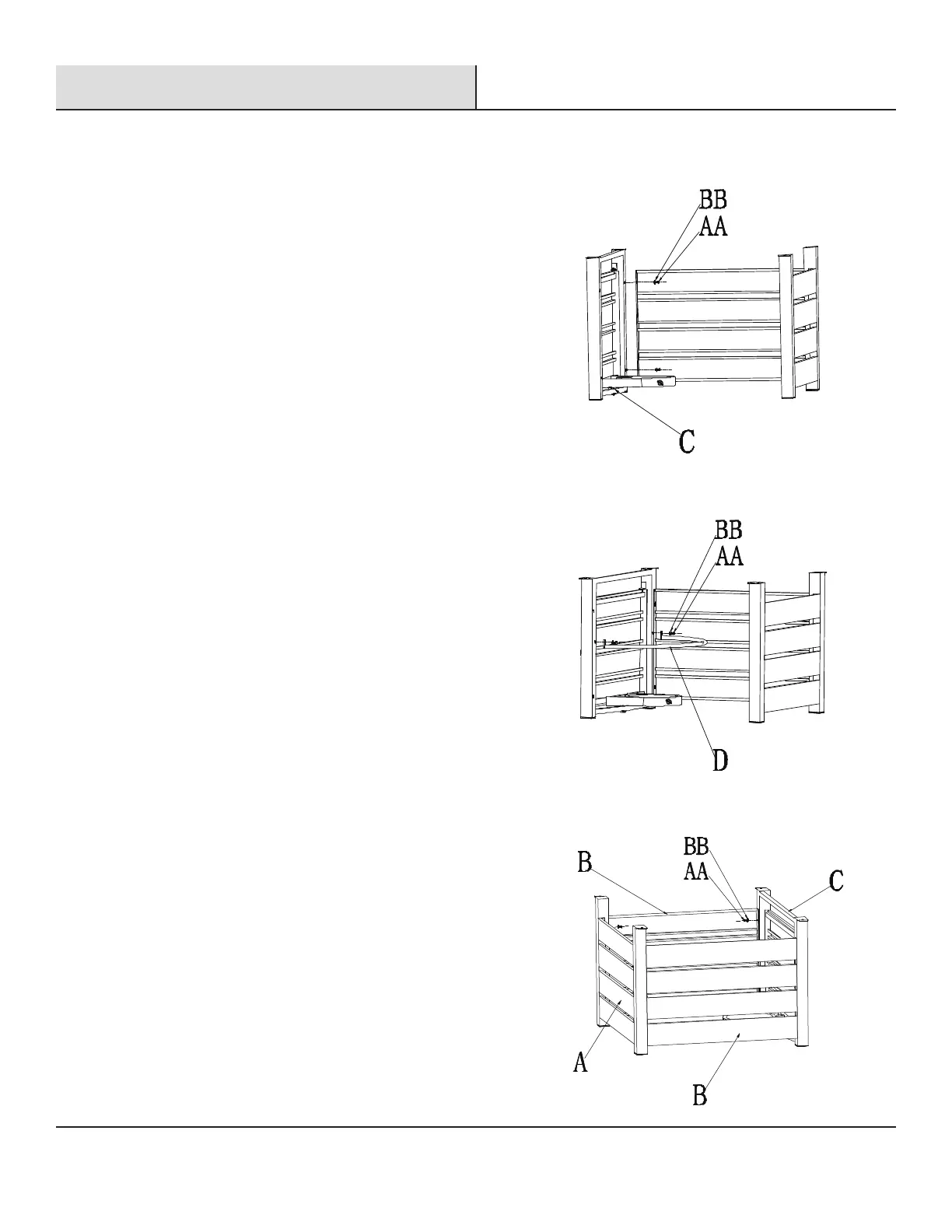

□ Attach the last side panel(B) with panel(A) and panel(C)
with bolt(AA) & gasket(BB).
attach the back panel (C) to the other side of the side panel (B)
with bolt(AA) & gasket(BB).
□
Attach U shape ring(D) to the middle of back panel(C)
with bolt(AA) and gasket(BB) in both sides.
□
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
Figure 81, Page 7 of 12
