HAMPTON BAY 2102FP - Assembly Steps; Attach Front and Side Panels

6
Pre-assembly (continued)
PACKAGE CONTENTS
Part Description Quantity Part Description Quantity
A Front panel 1
B Side panel 2
C Back panel 1
D U shape ring 1
E Table top 1
F
G
Lid
Lava Rock
1
~
Assembly
LP-GAS SUPPLY SYSTEMS

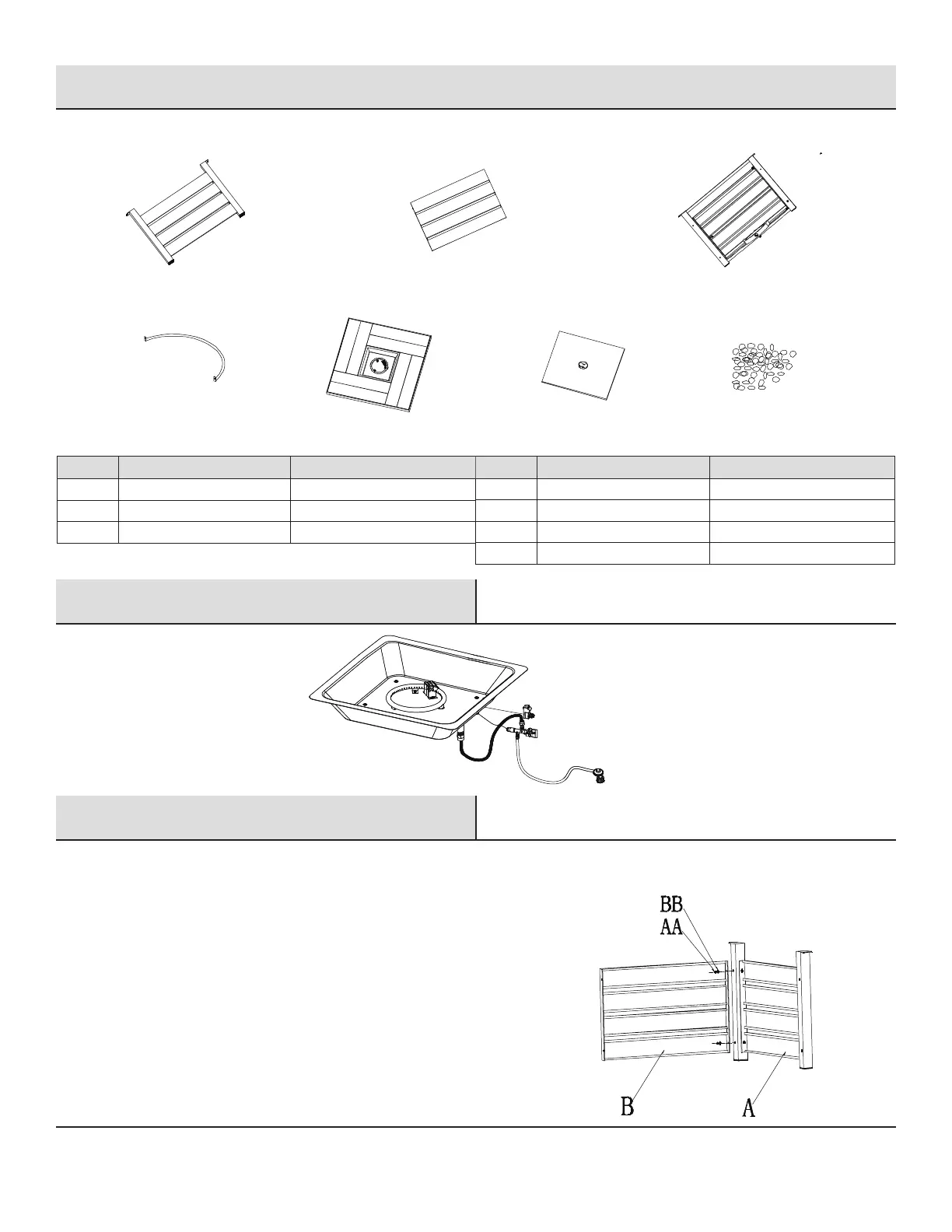

□ Attach the front panel(A) to the side panel(B) with bolt(AA) & gasket(BB).
Don't tighten fully at this step.
A B C
D E GF
Figure 81, Page 6 of 12
