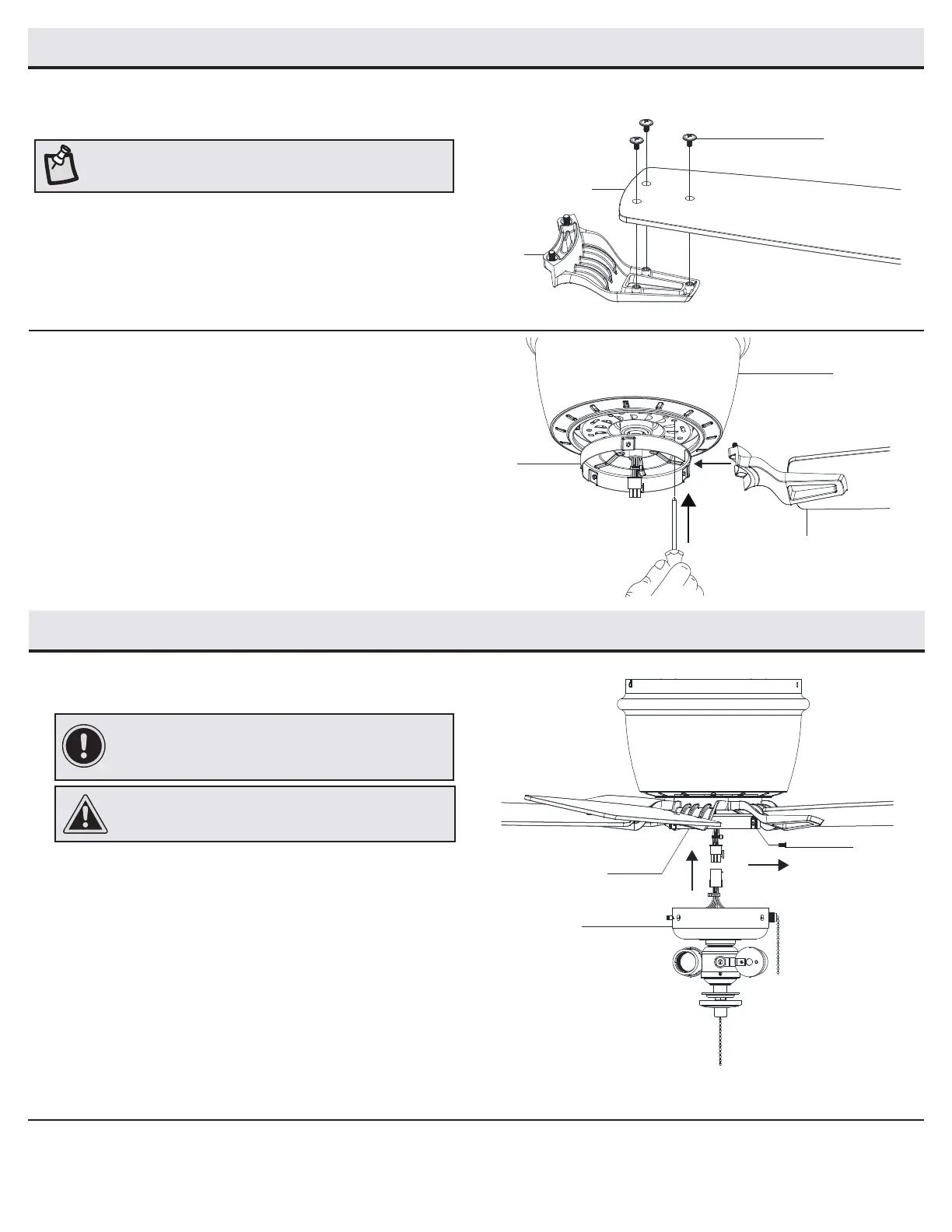

Assembly - Attaching the Fan Blades and Brackets

Attaching the blades to the blade

brackets

Fastening the blade assemblies to

the motor

□ Attach a blade (E) to a blade bracket (D) by inserting the blade

attachment screws (AA) into the holes in the blade (E) and

through the blade bracket.

□ Tighten each screw securely.

□ Repeat these steps for each blade (E) and blade bracket (D).

□ Fasten the blade assembly to the fan-motor assembly (C) by

inserting the alignment post into the slot on the bottom of

the motor and tightening the blade bracket screws. The blade

bracket screws are pre-installed into the blade bracket (D).

□ Repeat this step for the remaining blade assemblies.

NOTE: Your fan blades are reversible. Select the blade side nish

which best accentuates your decor.

Assembly - Attaching the Light Kit Fitter Assembly

Attaching the light kit tter assembly

□ Remove the three screws (KK) on the black bracket below the

fan-motor assembly (C).

□ Connect the wires from the light kit tter assembly (F) to the

wires from the black bracket below the fan-motor assembly (C)

by connecting the molded adaptor plugs together. Carefully tuck

all wires and splices into the switch cup.

□ Align the three holes in the switch cup of the light kit tter

assembly (F) with the three holes in the black bracket below

the fan-motor assembly (C). Make sure the notch in the black

bracket below the fan-motor assembly (C) clears the reversing

switch in the switch cup of the light kit tter assembly (F).

Position the light kit tter assembly (F) and re-install the three

screws (KK) that were removed in the rst step to secure the

light kit tter assembly (F).

CAUTION: To reduce the risk of electric shock, disconnect

the electrical supply circuit to the fan before installing the

light kit.

IMPORTANT: It is critical to attach the light kit using

the quick connector. The fan will not operate unless

the light kit is connected to the fan.
