HAMPTON BAY Cunningham - Assembly; Assembling the Swing Frame

5
HOMEDEPOT.CA
Please contact 1-855-HD-HAMPTON for further assistance.
1
l
Assembly
Attach two sets of the legs (B) to the top bar (A) using M8x100 combination bolts, washers and nuts (AA).
Attach the support bars (JJ) to the legs (B) and the top bar (A) using M8x50 combination bolts, washers and nuts (CC) and
M8x45 combination bolts, washers and nuts (DD).
Attach the two side bars (C) to the legs (B) using M6x40 combination bolts (GG).
Once all of the bolts are in place, fully tighten the bolts.

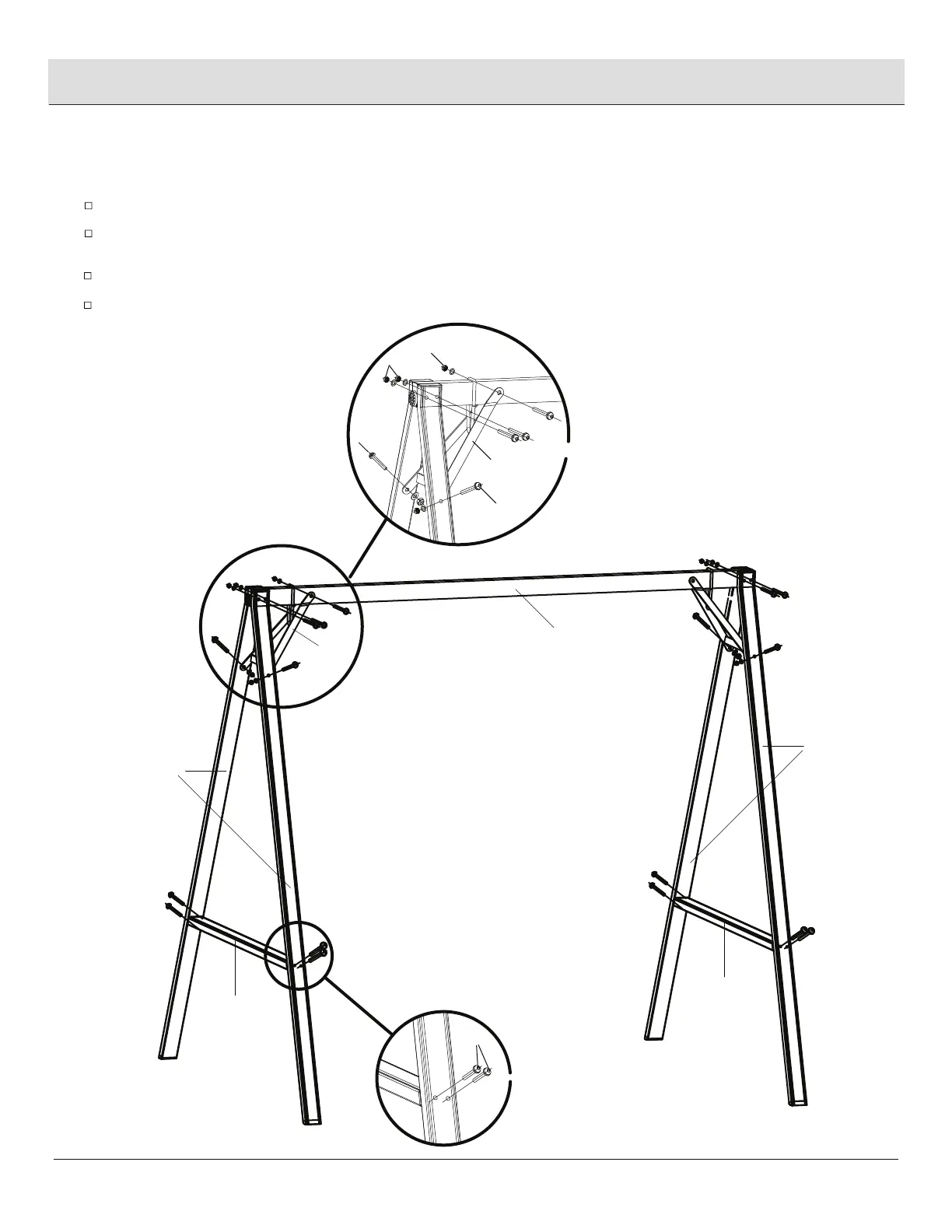

Assembling the swing frame
JJ
4X
2X
CC
AA
DD
DD
GG
A
B
B
JJ
C
C
