HAMPTON BAY Cunningham - Attaching Swing Pipes to Arms

3
l
7

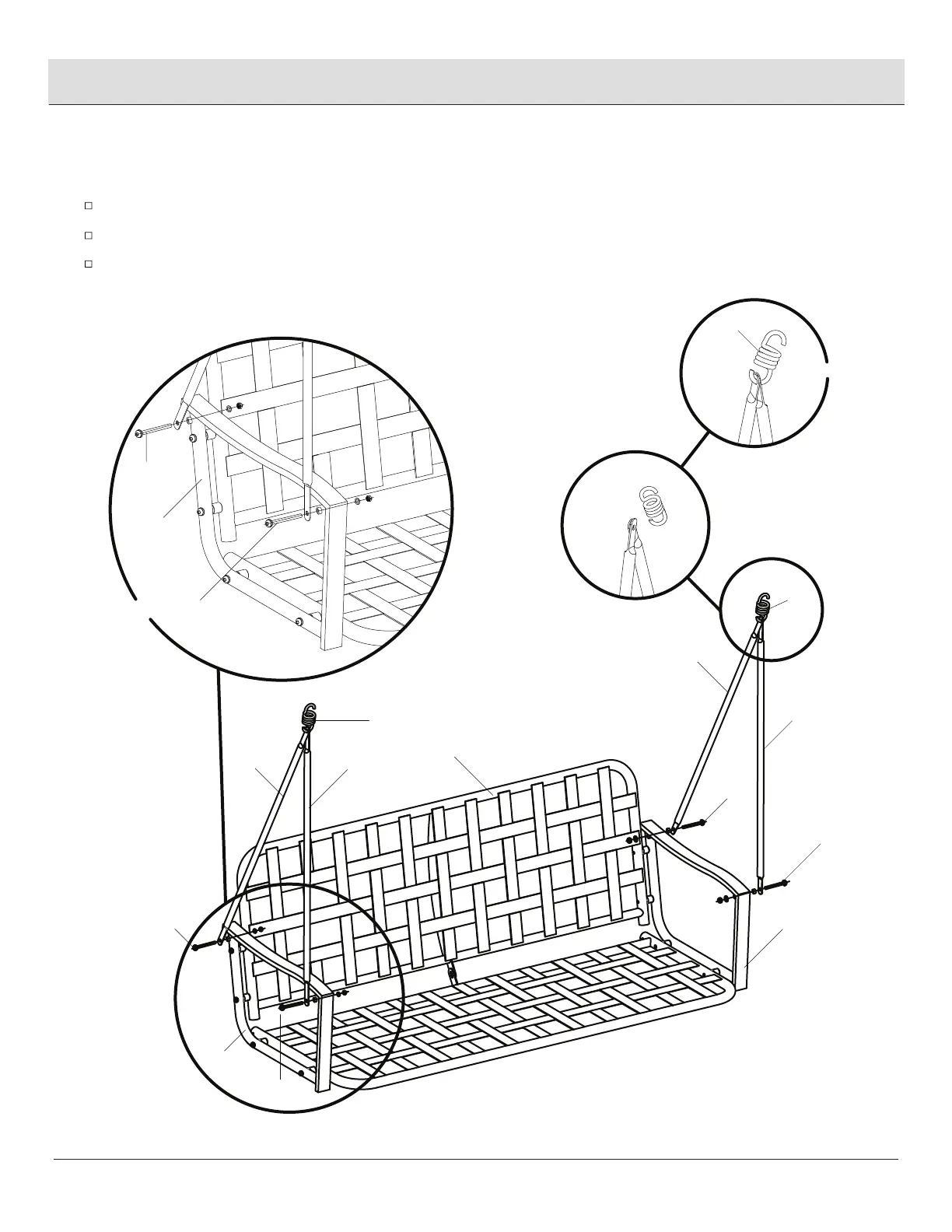

Attach the long swing pipes (F) and the short swing pipes (G) to the arms (E) using M6x60 combination bolts, washers and nuts (FF).
Connect the top of the two swing pipes (F and G) using the hooks (II).
Attaching the long swing pipes and the short swing pipes to the arms
Assembly (continued)
HOMEDEPOT.CA
Please contact 1-855-HD-HAMPTON for further assistance.
Once all of the bolts are in place, fully tighten the bolts.
F
F
G
G
D
E
FF
FF
FF
FF
II
II
2X
II
FF
FF
E
E
2X
