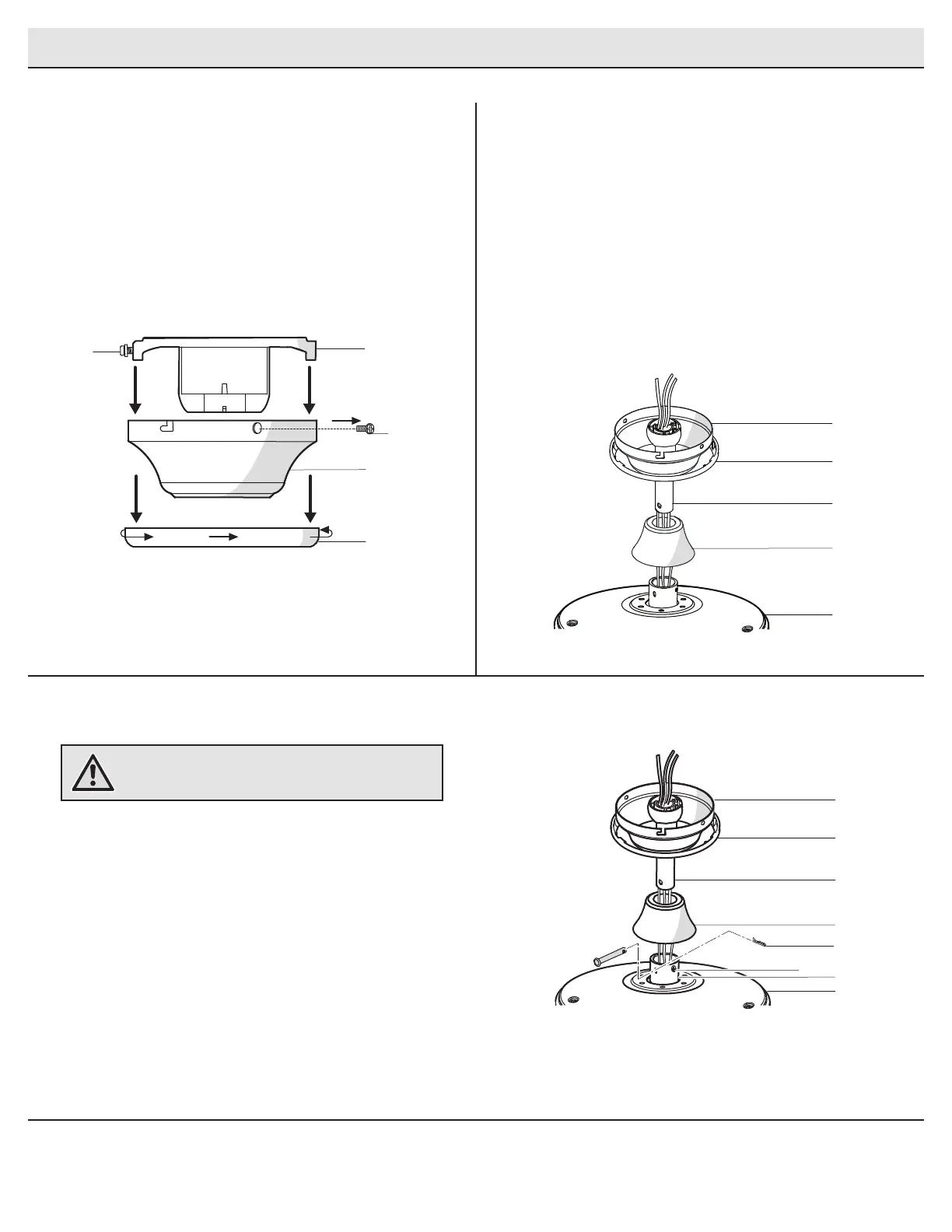

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for standard mounting
□ Loosen, but do not remove, the setscrews (II) on the collar
on top of the fan-motor assembly (D).
□ Align the holes at the bottom of the ball/downrod assembly
(B) with the holes in the collar on top of the fan-motor
assembly (D).
□ Carefully insert the hanger pin (BB) through the holes in
the collar and ball/downrod assembly (B). Be careful not to
jam the hanger pin (BB) against the wiring inside the ball/
downrod assembly (B).
□ Insert the locking pin (CC) through the hole near the end of
the hanger pin (BB) until it snaps into its locked position.
□ Re-tighten the setscrews (II) on the collar on top of the fan-
motor assembly (D).
□ Remove the canopy ring (K) from the canopy (C) by turning
the ring counterclockwise until it unlocks.
□ Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L
shaped” slots.
□ Remove and save the two canopy screws (GG) in the round
holes. This will enable you to remove the mounting bracket
(A).
□ Route the wires exiting the top of the fan motor
assembly (D) through the center of the canopy ring (K)
making sure the slots are on top.
□ Insert the ball/downrod (B) through the canopy (C) and
slide the decorative motor collar cover (F) onto the end
of the ball/downrod (B). Make sure the slots on the
canopy (C) are on top.
□ Route the wires existing the top of the fan motor
assembly (D) through the ball/downrod (B) as shown.
2
3
1
C
A
K
GG
HH
C
B
F
D
K
BB
CC
M
II
C
B
F
D
K
WARNING: Failure to properly install the locking pin (CC)
could result in the fan becoming loose and possibly
falling.
