HAMPTON BAY TIPTON - Assembly Instructions; Assemble Heat Shield to Base; Attach Firebox to Base; Attach Mesh Spark Screen Bracket

5
1

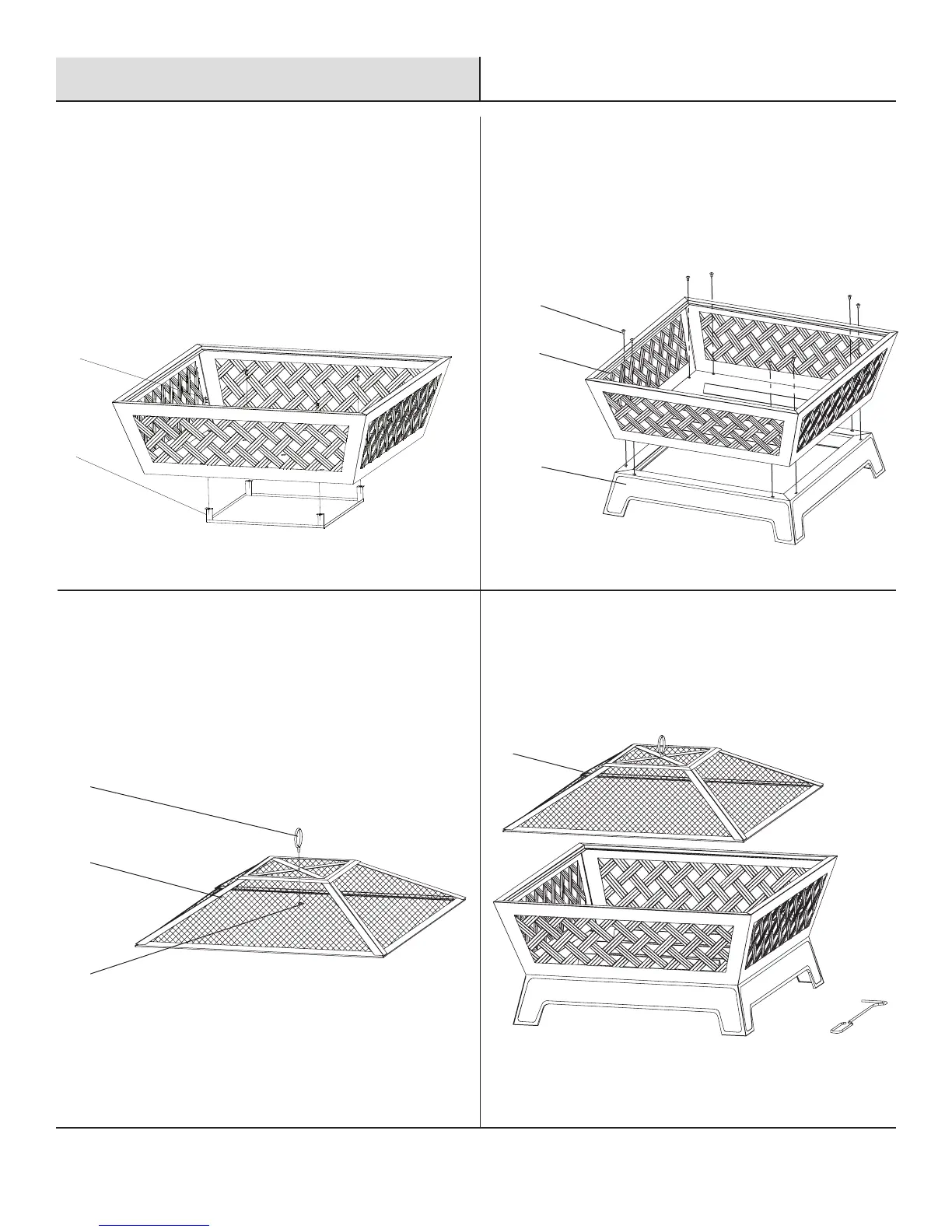

Assemble the heat shield
c
Attach the heat shield (F) to the base (D) using four M6x12 mm bolts
(AA).
c
Tighten all bolts with a screwdriver.
4
Assembling the re pit
c
Place the mesh spark screen (B) on top of the firebox assembly.
Assembly
3
Attaching the mesh spark screen bracket
to the mesh spark screen
c
Insert the mesh spark screen bracket (A) over the top of the mesh
spark screen (B). Attach the mesh spark screen bracket with nut (BB).
Tighten with the wrench.
HAMPTONBAY.COM
Please contact 855-HD-HAMPTON for further assistance.
AA
B
BB
B
A
2
Attaching the rebox to the base
c
Attach the firebox (C) to the base (D) using the M6x12 mm bolts
(AA).
c
Tighten all bolts with a screwdriver.
AA
C
D
F
