INSTALLATION
WARNING:
• The transmission wire’s positive terminal and negative terminal
must be connected to the positive and negative terminal for the
car’s tail light.
• Make sure to connect the wires to the correct terminals. Incorrect
connection risks damaging the transmitter and camera.
• The transmitter’s aerial must not be placed too near any metal
parts, or be covered over. This can reduce the transmission range.
1. Fit the camera in a suitable place. Use the supplied screws and
grommets if necessary.

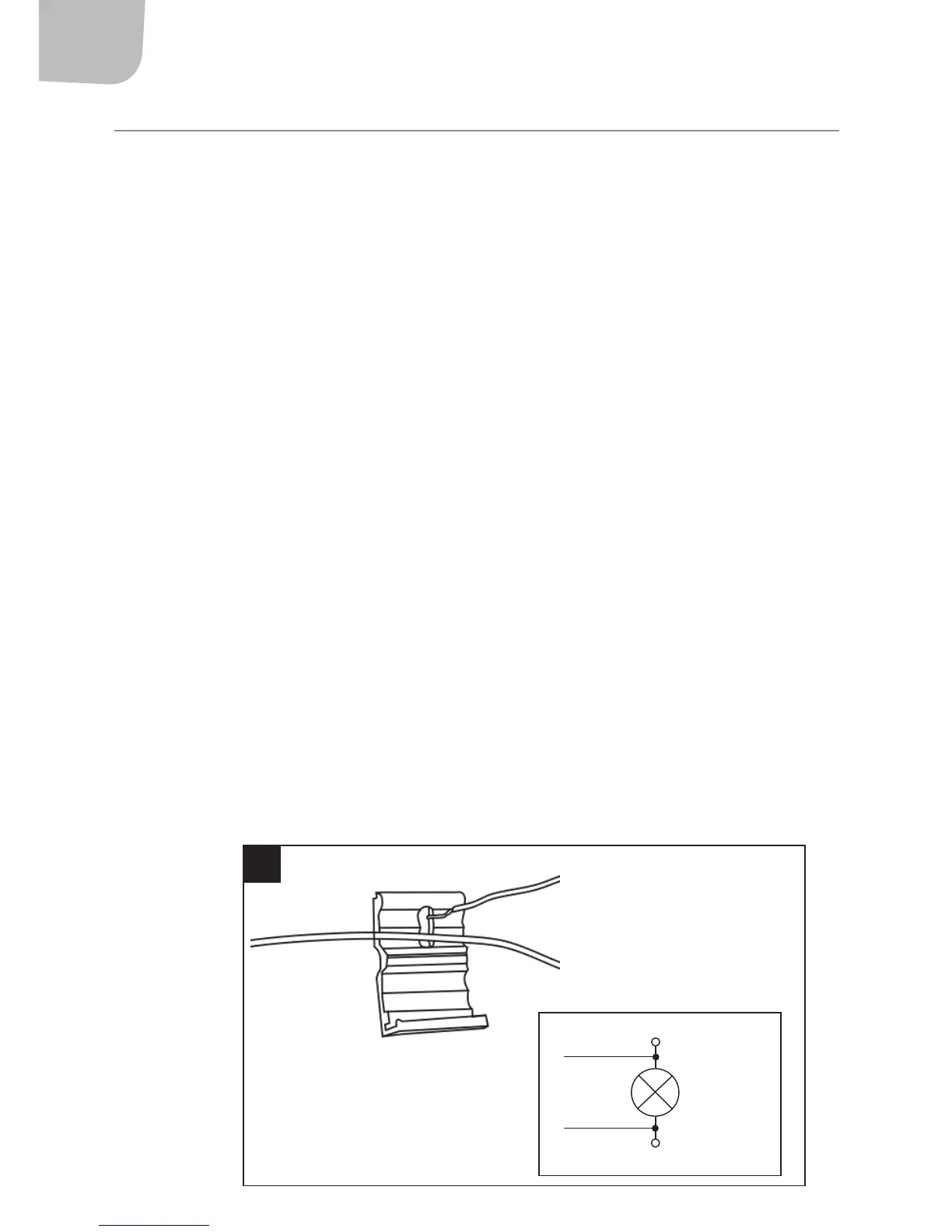

2. Connect the transmitter to the power from the tail light via the
car boot (diagram 1).
– Put the transmitter’s red cable end in one of the slots in the
red splice clamp.
– Put the tail light’s positive cable in the other slot.
– Close the splice clamp.
1
Transmitter cable
Tail light cable
Red +
Tail light
Black -
