removable by unscrewing for the fuse replacement. It may become
loose over repeated use, therefore, it is highly recommended to check if
it is tightly screwed frequently. A set of plunger parts are included in the
basic supplies. Refer to spare parts section hereinafter.
- The rated voltage and current for this power cable are 12V and less than
2A.

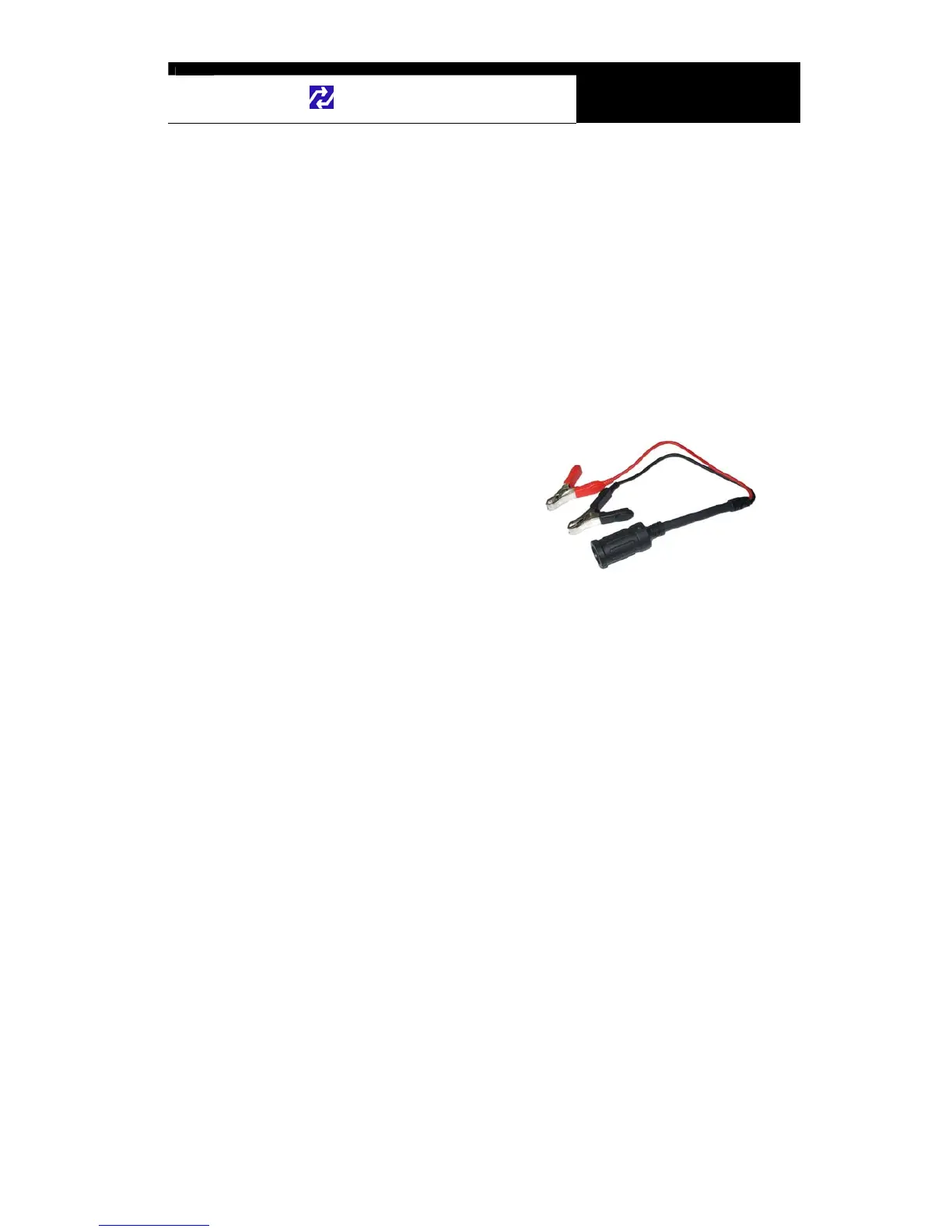

6. Power cable 2 – Vehicle Battery
(P/N. 3000-0005)
- Supplies power from the vehicle battery when the DLC is located in
the engine bay or when using the oscilloscope or multi-meter
functions
- Connect each of the two
alligator clips to the battery
terminal of the correct
polarity with caution.
- Must be used together with
the Power Cable 1. Insert
the cigarette lighter adaptor of the Power Cable 1 into the socket,
and connect the other end to the head unit.
- Red LED light turns ON when power is properly supplied from the
vehicle battery.
