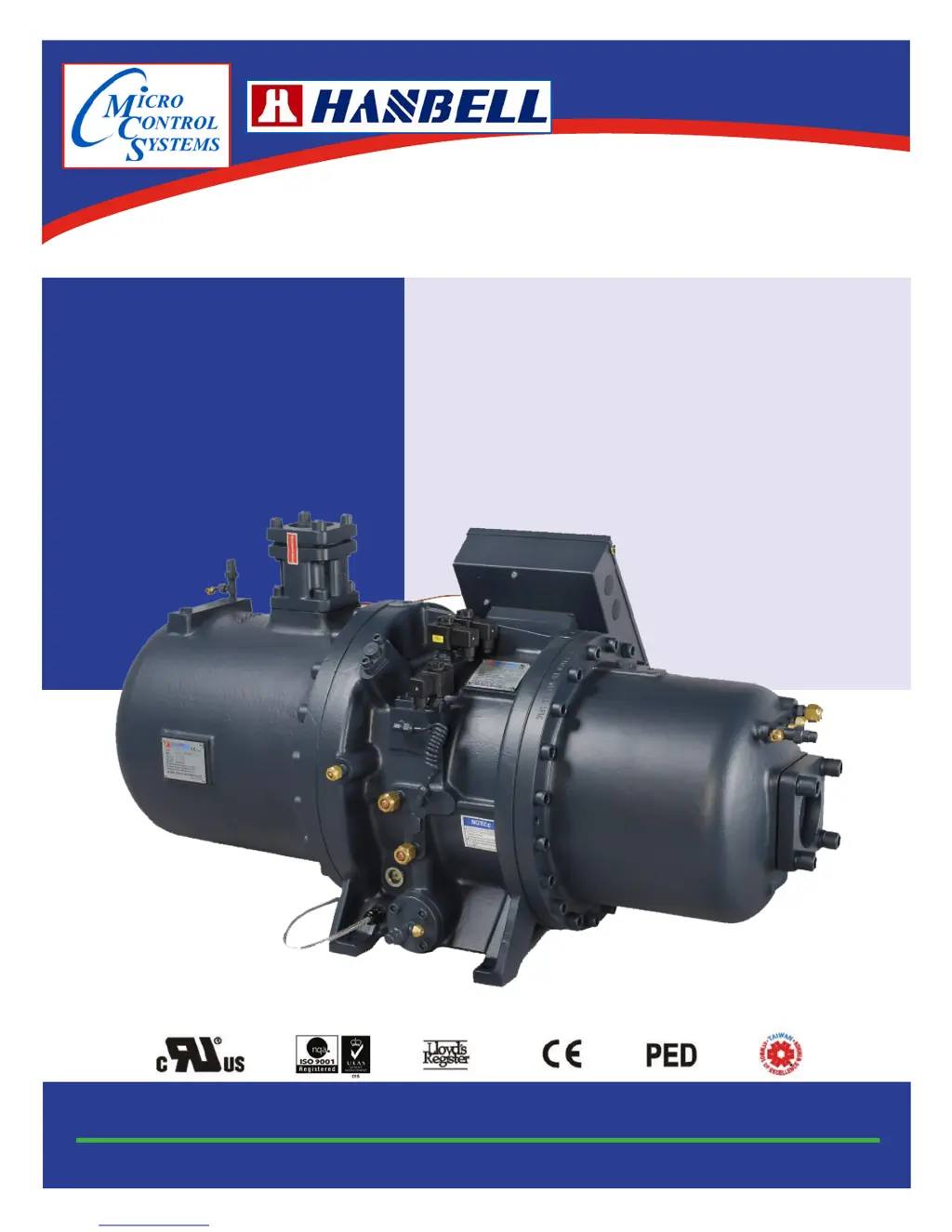

High-efciency
Model
RC2 Series
Screw Compressor
New generation of
innovative design
Screw compressor
TECHNICAL MANUAL
VERSION 2.0 -10-18-2018

Table of Contents

Questions and Answers

  • E
    ehayesAug 15, 2025
    Why is the discharge temperature high in my Hanbell RC2-230B Air Compressor?
    • J
      John LindseyAug 15, 2025
      High discharge temperature in a Hanbell Air Compressor can stem from several issues: * Insufficient refrigerant: Check for leaks, add refrigerant, and adjust suction superheat to less than 10°K. * Condenser problems: Inspect and clean the condenser to ensure proper heat exchange. * Refrigerant overcharge: Reduce the amount of refrigerant. * Air/moisture: Purify refrigerant and vacuum system. * Expansion valve issues: Adjust suction superheat. * Insufficient lubrication oil: Add oil. * Damaged bearings: Change the bearings. * Improper Vi value: Change the slide valve. * Lack of system cooling: Install liquid injection or oil cooler.
  • E
    Elizabeth MaloneAug 18, 2025
    What to do if Hanbell RC2-230B motor thermistor / sensor trips suddenly?
    • S
      Susan KimAug 18, 2025
      If your Hanbell Air Compressor experiences a sudden trip of the motor thermistor or sensor, it could be due to several reasons: * Low suction pressure: Install liquid injection to the motor coil. * Refrigerant shortage: Charge refrigerant. * Clogged suction filter: Clean the filter. * High suction temperature: Install liquid injection to the motor coil. * High suction superheat: Adjust the superheat to less than 10°K. * Unstable electricity: Check the electricity power supply.
  • N
    Nathaniel RiceAug 21, 2025
    How to fix abnormal vibration and noise in Hanbell Air Compressor?
    • P
      Pedro LeonAug 21, 2025
      Abnormal vibration and noise in your Hanbell Air Compressor can arise from: * Damaged bearings: Change the bearing. * Liquid compression: Adjust proper suction superheat. * Rotor friction: Change screw rotors or/and compression chamber. * Insufficient lubrication oil: Add oil. * Loosen internal parts, friction between slide valve and rotors, external debris: Dismantle the compressor and change the damaged parts. * Electromagnetic sound of the solenoid valve: Check. * System harmonic vibration: Check the system piping and if possible improve it using copper pipe. * Motor rotor rotates imbalance: Check and repair.
  • A
    Ariana FullerAug 25, 2025
    Why does my Hanbell Air Compressor fail to start or have Y-Δ starter shifting failure?
    • S
      Shelly FosterAug 25, 2025
      If your Hanbell Air Compressor fails to start or the Y-Δ starter shifts incorrectly, consider these potential causes: * Slide valve piston issue: Check if the unloading SV is energized once the compressor shuts down. Unload the compressor before shot down. * Incorrect voltage: Check the power supply. * Voltage drop/contactor failure/phase failure: Check the power supply and the contactor. * Motor breakdown: Change the motor. * Incorrect power connection: Check and re-connect. * Y-Δ timer failure: Check or replace. * Closed valve: Open the stop valve. * Improper Y-Δ wiring: Check and re-connect the wiring. * Rotor locked/Earth fault: Check and repair. * Protection device trip: Check.
  • J
    Justin WallerAug 28, 2025
    What causes oil loss in a Hanbell Air Compressor?
    • W
      willie65Aug 28, 2025
      If your Hanbell Air Compressor is losing oil, possible causes include: * Lack of refrigerant: Check for leaks and add refrigerant. * Improper system piping: Check and correct the piping or install an external oil separator. * Liquid fills back: Maintain suitable suction superheat at compressor.
  • M
    Monique YoungAug 31, 2025
    Why is my Hanbell RC2-230B unable to load?
    • D
      Donna ShawSep 1, 2025
      If your Hanbell Air Compressor is unable to load, consider the following: * Low temperature/high oil viscosity: Turn on the oil heater before compressor start. * Clogged capillary: Clean or replace capillary. * Solenoid valve issues: Clean/purge the valve core or replace the coil. * Clogged oil line: Check and clean the compressor oil circuit. * Piston issue: Change piston or piston ring. * Clogged oil filter: Clean oil filter (replace if needed). * Small pressure differential: Minimum pressure differential is 4 bar. Consider to install an oil pump.
  • M
    Marilyn HansonSep 3, 2025
    What causes a Hanbell RC2-230B to be unable to unload?
    • D
      dianeowenSep 4, 2025
      If your Hanbell Air Compressor is unable to unload, it could be due to: * Modulation solenoid valve clogged or burnt: Clean or replace the solenoid valve. * Worn/broken piston rings or damaged cylinder: Change piston (if cylinder damaged severely, change the cylinder). * Insufficient lubrication oil: Add oil if necessary. * Leakages at internal discharge cover plate end side: Check or replace the gasket and tighten the bolts. * Solenoid valve voltage misused: Check the control voltage. * Piston stuck: Change the piston set, and check the cylinder and slide valve. * Capacity control logic unsuitable: Check.
  • M
    Michael RichardsonSep 7, 2025
    What causes low suction pressure in a Hanbell RC2-230B?
    • K
      Keith HuffmanSep 7, 2025
      If your Hanbell Air Compressor has low suction pressure, check for: * Lack of refrigerant: Check for leaks and add refrigerant. * Dirty/iced evaporator: Defrost or clean coil. * Clogged liquid line filter drier: Replace the cartridge. * Clogged suction line/strainer: Clean or change suction strainer. * Expansion valve malfunctioning: Check and reset for proper superheat. * Low condensing temperature: Check means for regulating condensing temperature.
  • B
    Brenda MunozSep 10, 2025
    What to do if Hanbell RC2-230B Air Compressor does not run?
    • L
      Larry KimSep 12, 2025
      If your Hanbell Air Compressor does not run, check these potential causes: * Motor line open: Check. * Tripped overload: Check the electrical connection. * Screw rotors seized: Replace screw rotors, bearings etc. * Motor broken: Change motor.

Summary

General

Compressor Specifications

Detailed specifications for RC2-A and RC2-B series compressors.

Specifications and Design

RC2 Series Construction

Design Features

Capacity Control Systems

Explains how the compressor's refrigeration capacity is regulated.

3 or 4-Step Capacity Control

Continuous (Stepless) Capacity Control

Application Limits

Defines operating limits for different refrigerants and models.

Lubricants

Lubricants Table

Lists recommended oils and their properties for R22 and other refrigerants.

Precautions for Changing Oil

Oil Change Procedure

Handling and Installation

Compressor Lifting

Mounting the Compressor

Electrical Data and Design

Protection Devices

Lists and explains essential protection devices for the compressor.

Power Supply Guidelines

Provides guidelines for voltage limitations and unbalanced voltages.

Grounding Requirements

Details grounding requirements and suggestions for safe installation.

Operation and Maintenance

Compressor Start-up

Lists required procedures and checkpoints before compressor start-up.

Compressor Checking List

Troubleshooting Guide

Selection Software Guide

24 Month Warranty
