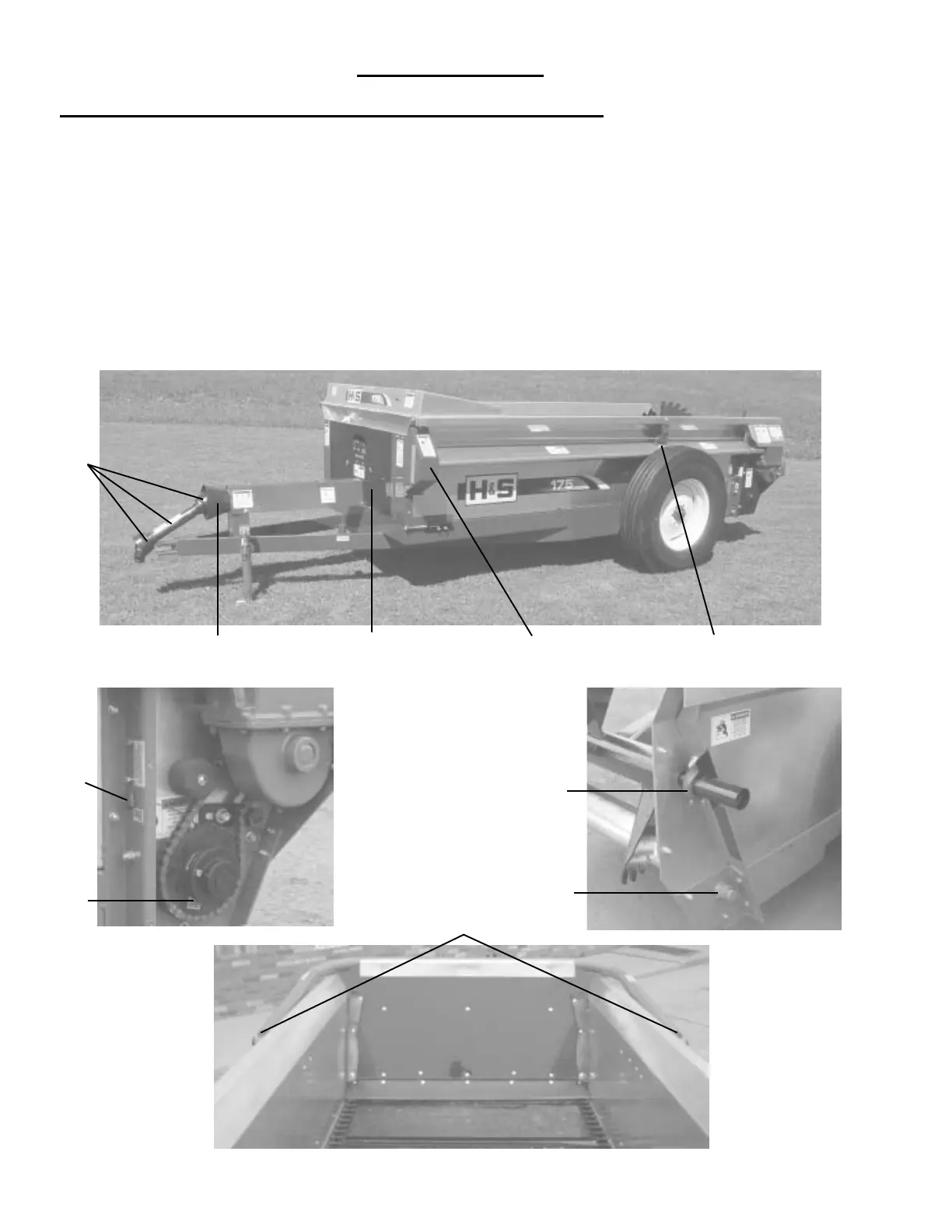

H&S 175 - FIGURE 3: FRONT SHIELD AND DRIVE ASSEMBLY

GREASE ZERK LOCATION - Grease every 20 Hours
1. (3) PTO Shaft
2. (1) Front Jack Shaft Bearing
3. (1) Rear Jack Shaft Bearing
4. (1) Front Side Shaft Bearing
5. (1) Middle Side Shaft Bearing
6. (2) Rear drive shaft (LH is a remote fitting)
7. (1) Rear drive shaft shear sprocket
8. (1) Beater bearing (RH side)
9. (2) Hydraulic endgate arms (If equipped with a Hydraulic Endgate)
NOTE: Shields removed in some pictures for clarity. DO NOT OPERATE WITH SHIELDS REMOVED
(Shields
Removed
for Clarity)
9.
LUBRICATION
2. (Inside Shield)
4. (Behind Shield)
1.
-22-
3. (Behind Shield)
5.
6.
7.
6.
8.
