H&S 175 - Page 21

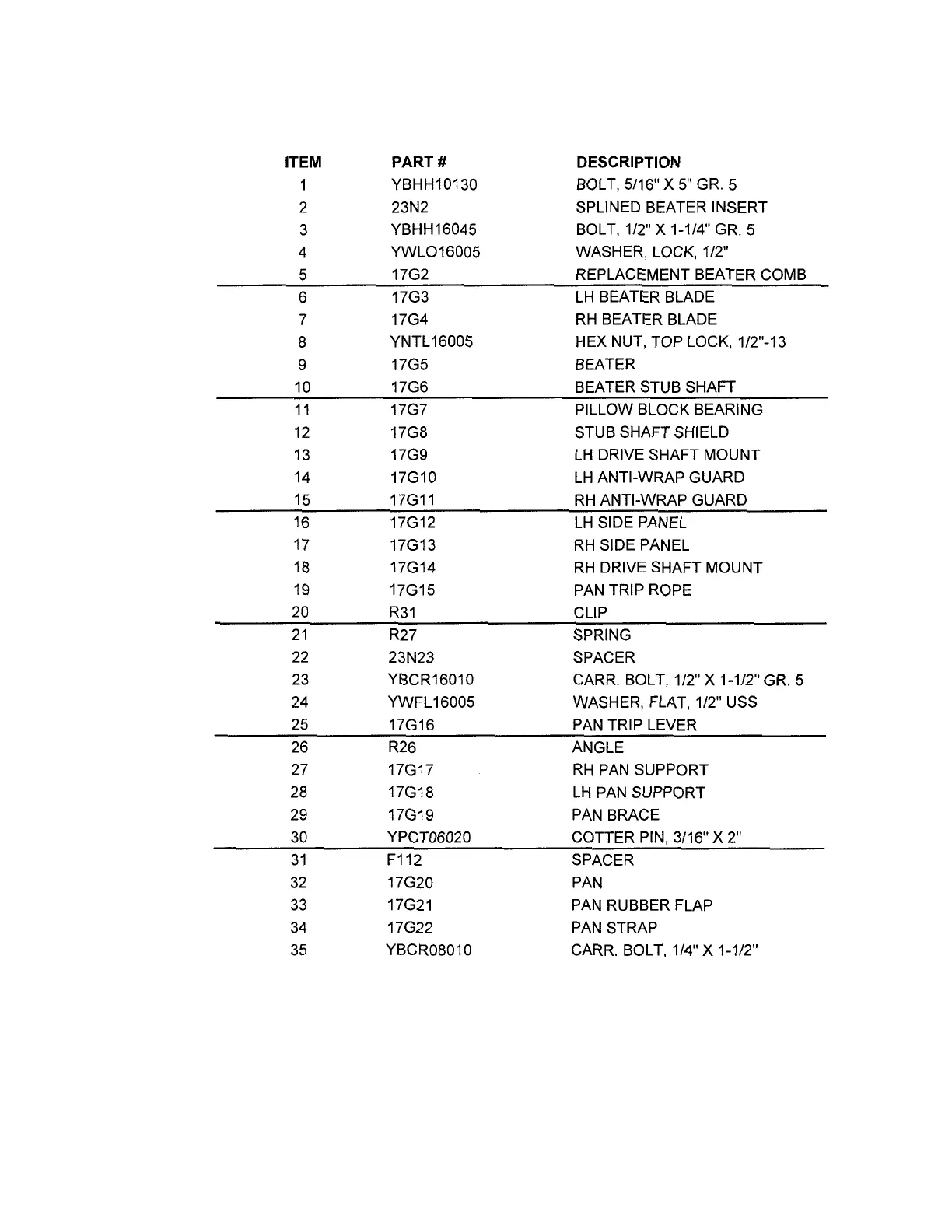

ITEM PART NO. DESCRIPTION
1. 23N1 5/16’’ x 5’’ GR.5 Bolt
2. 23N2 Splined Beater Insert
3. R10 1/2’’ x 1-1/4’’ GR.5 Bolt
4. R35 Lock Washer
5. 17G2 Replacement Beater Comb
6. 17G3 LH Beater Blade
7. 17G4 RH Beater Blade
8. R11 1/2’’ Lock Nut
9. 17G5 Beater
10. 17G6 Beater Stub Shaft
11. 17G7 Pillow Block Bearing
12. 17G8 Stub Shaft Shield
13. 17G9 LH Drive Shaft Mount
14. 17G10 LH Anti-Wrap Guard
15. 17G11 RH Anti-Wrap Guard
16. 17G12 LH Side Panel
17. 17G13 RH Side Panel
18. 17G14 RH Drive Shaft Mount
19. 17G15 Pan Trip Rope
20. R31 Clip
21. R27 Spring
22. 23N23 Spacer
23. 23N22 Carriage Bolt 1/2’’ x 1-1/2’’
24. A34 1/2’’ Flat Washer
25. 17G16 Pan Trip Lever
26. R26 Angle
27. 17G17 RH Pan Support
28. 17G18 LH Pan Support
29. 17G19 Pan Brace
30. R70 Cotter Pin
31. F112 Spacer
32. 17G20 Pan
33. 17G21 Pan Rubber Flap
34. 17G22 Pan Strap
35. 17G1 1/4’’ x 1-1/2’’ Carriage Bolt
-21-
FIGURE 1
H&S MODEL 175
BEATER AND PAN ASSEMBLY
