H&S 175 - Page 23

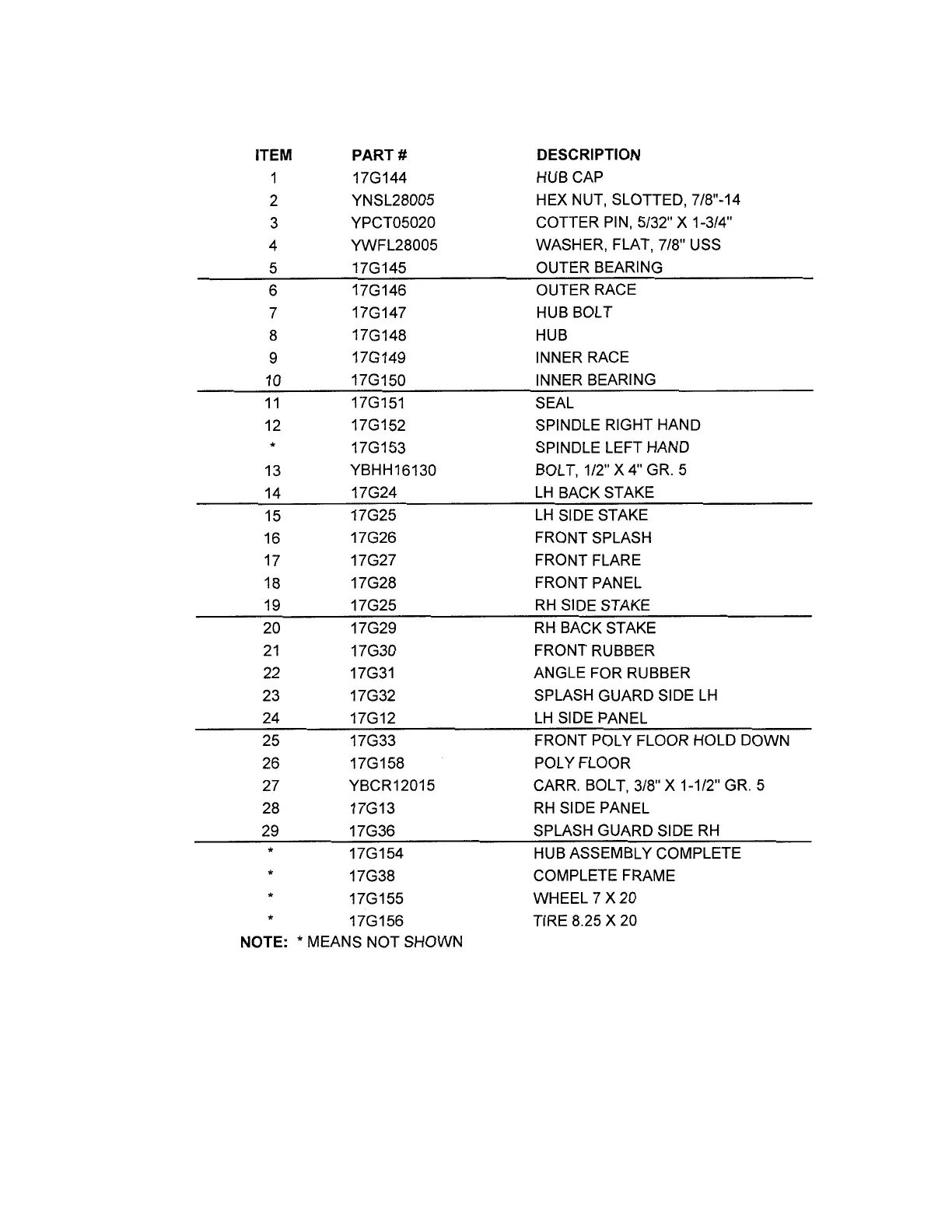

ITEM PART NO. DESCRIPTION
1. 17G144 Hub Cap
2. B3 Nut
3. B31 Cotter Pin
4. B4 Washer
5. 17G145 Outer Bearing
6. 17G146 Outer Race
7. 17G147 Hub Bolt
8. 17G148 Hub
9. 17G149 Inner Race
10. 17G150 Inner Bearing
11. 17G151 Seal
12. 17G152 Spindle Right Hand
17G153 Spindle Left Hand
13. 23N53 1/2’’ x 4’’ GR.5 Bolt
14. 17G24 LH Back Stake
15. 17G25 Side Stake
16. 17G26 Front Splash
17. 17G27 Front Flare
18. 17G28 Front Panel
19. 17G25 Side Stake
20. 17G29 RH Back Stake
21. 17G30 Front Rubber
22. 17G31 Angle for Rubber
23. 17G32 Splash Guard Side LH
24. 17G12 LH Side Panel
25. 17G33 Front Poly Floor Hold down
26. 17G158 Poly Floor
27. 17G35 Carriage Bolt
28. 17G13 RH Side Panel
29. 17G36 Splash Guard Side RH
Not Shown 17G154 Hub Assembly Complete
Not Shown 17G38 Complete Frame
Not Shown 17G155 Wheel 7 x 20
Not Shown 17G156 Tire 8.25 x 20
-23-
FIGURE 2
H&S MODEL 175
SPINDLE, HUB AND BOX PARTS
