H&S 175 - Page 27

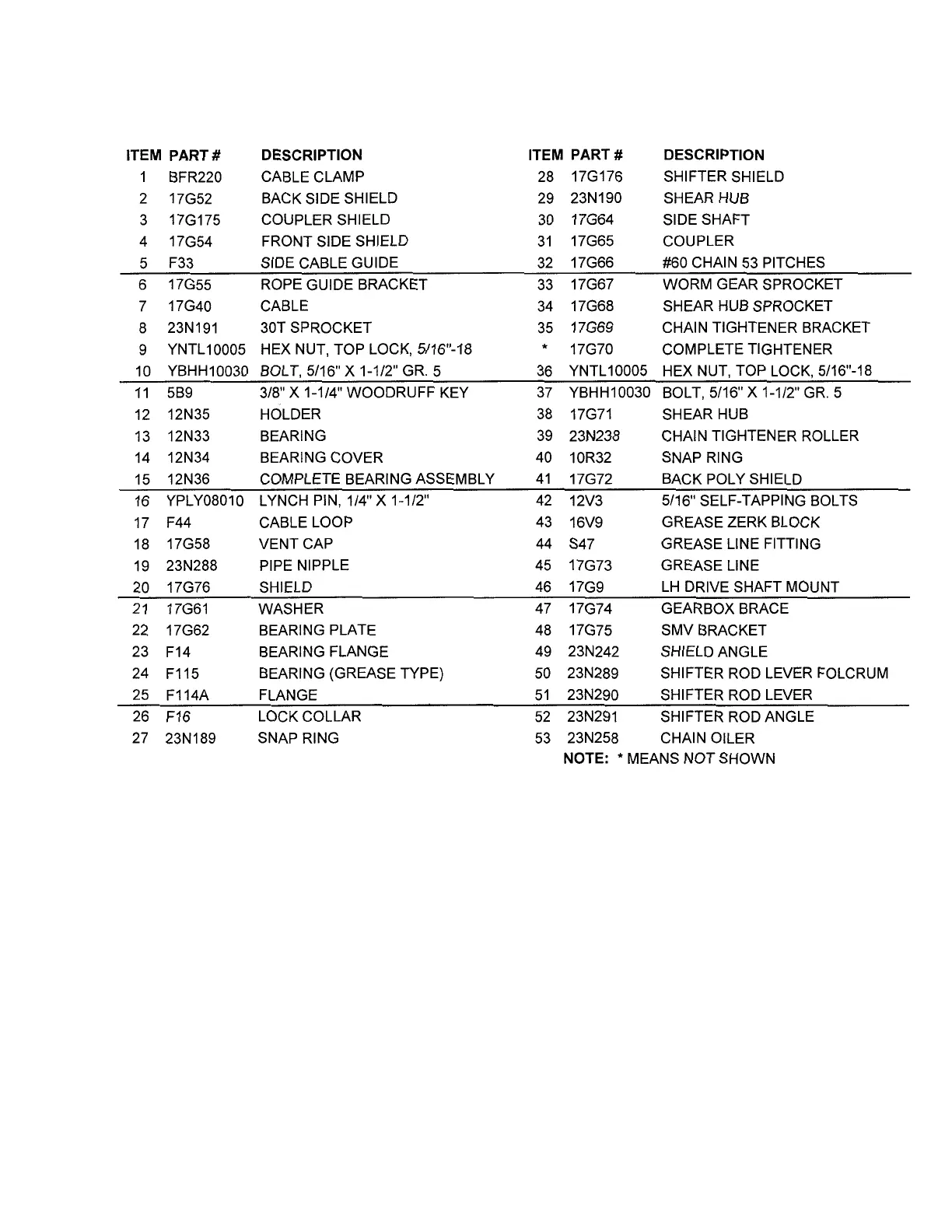

ITEM PART NO. DESCRIPTION
1. BFR220 Cable Clamp
2. 17G52 Back Side Shield
3. 17G175 Coupler Shield
4. 17G54 Front Side Shield
5. F33 Side Cable Guide
6. 17G55 Rope Guide Bracket
7. 17G40 Cable
8. 23N191 30T Sprocket
9. D81 Lock Nut
10. D31 Shear Bolt
11. 5B9 3/8’’ 1-1/4’’ Woodruff Key
12. 12N35 Holder
13. 12N33 Bearing
14. 12N34 Bearing Cover
15. 12N36 Complete Bearing Assembly
16. F56 Clip Pin
17. F44 Cable Loop
18. 17G58 Vent Cap
19. 23N288 Pipe Nipple
20. 17G76 Shield
21. 17G61 Washer
22. 17G62 Bearing Plate
23. F14 Bearing Flange
24. F115 Bearing (Grease Type)
25. F114A Flange
26. F16 Lock Collar
27. 23N189 Snap Ring
NOTE: * (Means Not Shown)
ITEM PART NO. DESCRIPTION
28. 17G176 Shifter Shield
29. 23N190 Shear Hub
30. 17G64 Side Shaft
31. 17G65 Coupler
32. 17G66 #60 Chain 53 Pitches
33. 17G67 Worm Gear Sprocket
34. 17G68 Shear Hub Sprocket
35. 17G69 Chain Tightener Bracket
* 17G70 Complete Tightener
36. D81 Lock Nut
37. D31 Shear Bolt
38. 17G71 Shear Hub
39. 23N238 Chain Tightener Roller
40. 10R32 Snap Ring
41. 17G72 Back Poly Shield
42. 12V3 5/16’’ Self-Tapping Bolts
43. 16V9 Grease Zerk Block
44. S47 Grease Line Fitting
45. 17G73 Grease Line
46. 17G9 LH Drive Shaft Mount
47. 17G74 Gearbox Brace
48. 17G75 SMV Bracket
49. 23N242 Shield Angle
50. 23N289 Shifter Rod Lever Folcrum
51. 23N290 Shifter Rod Lever
52. 23N291 Shifter Rod Angle
53. 23N258 Chain Oiler
-27-
FIGURE 4
H&S MODEL 175
BACK SHIELDS AND DRIVE ASSEMBLY
