HANGCHA CBD15-WS - Drive Wheel Disassembly Introductions

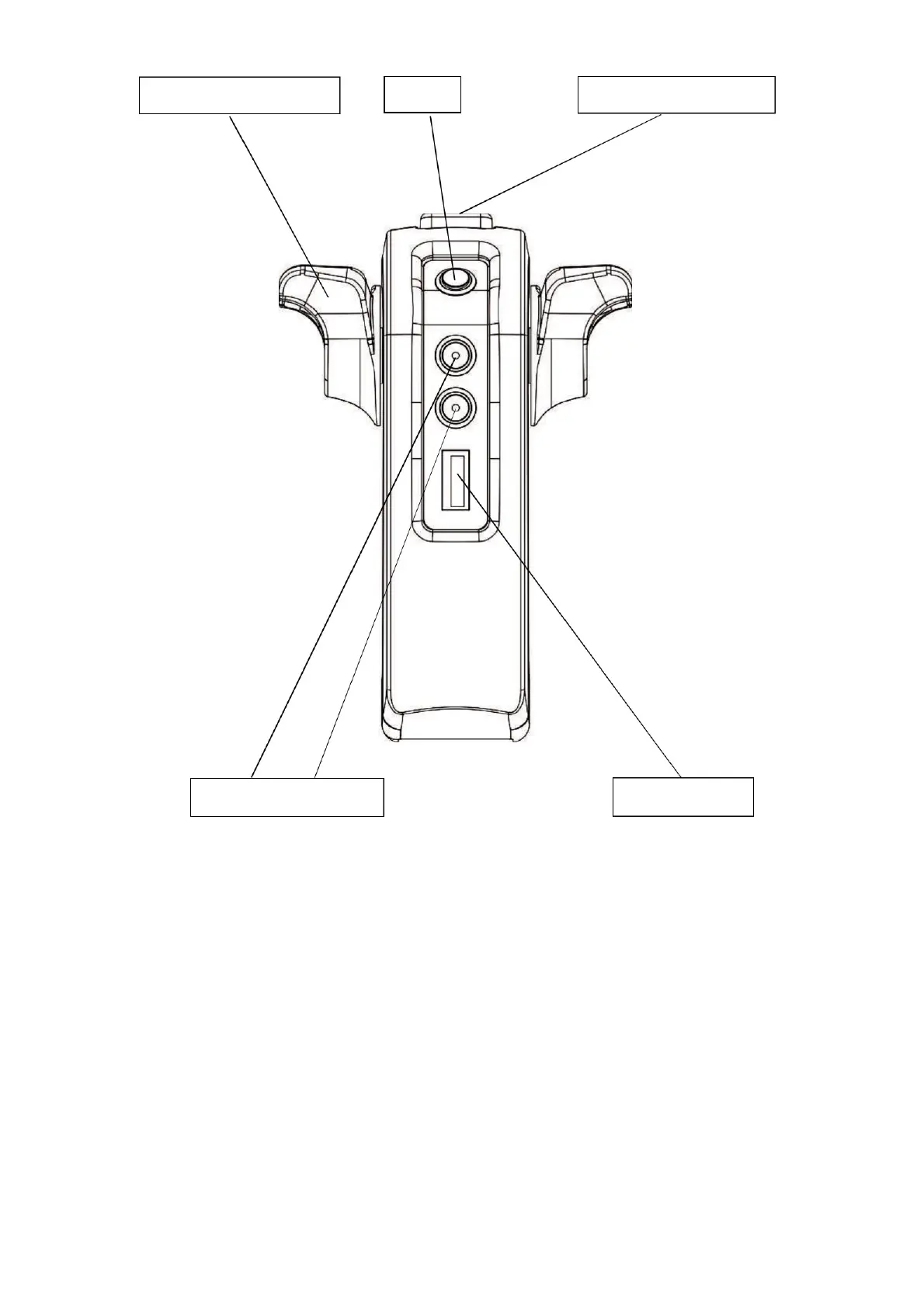

Forward & backward knob Horn Emergency reverse button
Fork Lifting & Lowering Battery indicator
5.4 Drive Wheel Disassembly Introductions
1. Let the drive wheel #10 suspend.
2. Dismantle controller cover (#7) by removing 3 bolts #8.
3. Loosen controller (#5) by removing 2 bolts #6. Avoid force on wires.
4. Dismantle nut cover (#3) by removing 4 bolts #4.
5. Remove nut #2, gently knock out the wheel shaft #9 and remove drive wheel #10.
No.
Reference
No.
Reference
1
drive assembly
6
bolt
2
nut
7
controller cover
3
nut cover
8
bolt
4
bolt x 4
9
wheel shaft
5
controller
10
drive wheel
