4
Assembly see page 32
Fault Cause Remedy
Insufficient water - Supply pressure inadequate - Check water pressure (If a pump has been installed
check to see if the pump is working).
- Regulator filter dirty - Clean filter in front of the mixer and on the MTC-
thermo cartridge
- Shower filter seal dirty - Clean filter seal between shower and hose
Crossflow, hot water being forced into cold water pipe,
or vice versa, when mixer is closed
- Backflow preventers dirty or leaking - Clean backflow preventers, exchange if necessary
Spout temperature does not correspond with tempera-
ture set
- Thermostat has not been adjusted - Adjust thermostat
- Hot water temperature too low - Increase hot water temperature to 42 ºC to 65 ºC
Temperature regulation not possible - thermo cartridge calcified - Exchange thermo cartridge
- Dirt or sedimentation on valve seat, shut-off unit dam-
aged
- Clean or exchange shut-off unit
Instantaneous heater didn't work with thermostat - Filters are dirty - Clean the filter / exchange filter
- check valve hasn't moved back - Exchange check valves
- Flow limiter in handshower isn’t removed - Remove flow limiter
- Ecostop safety set removed. - Remove Ecostop safety set (#95771000)
Cleaning
see enclosed brochure.
Flow diagram (see page 31)
c
Shower outlet with 1B resistance 25 l/min (0,3 MPa)
d
Tub outlet
Dimensions (see page 31)
Operation (see page 36)
Maintenance (see page 35)
The check valves must be checked regularly according to DIN EN
1717 in accordance with national or regional regulations (at least once
a year). To guarantee the smooth running of the thermostat, it is neces-
sary from time to time to turn the thermostat from total hot to total cold.
Adjustment (see page 33)
After the installation, the output temperature of the thermostat must be
checked. A correction is necessary if the temperature measured at the
output differs from the temperature set on the thermostat.
Safety Function (see page 34)
The desired maximum temperature for example max. 42º C can be pre-
set thanks to the safety function.
Do not use silicone containing acetic acid!

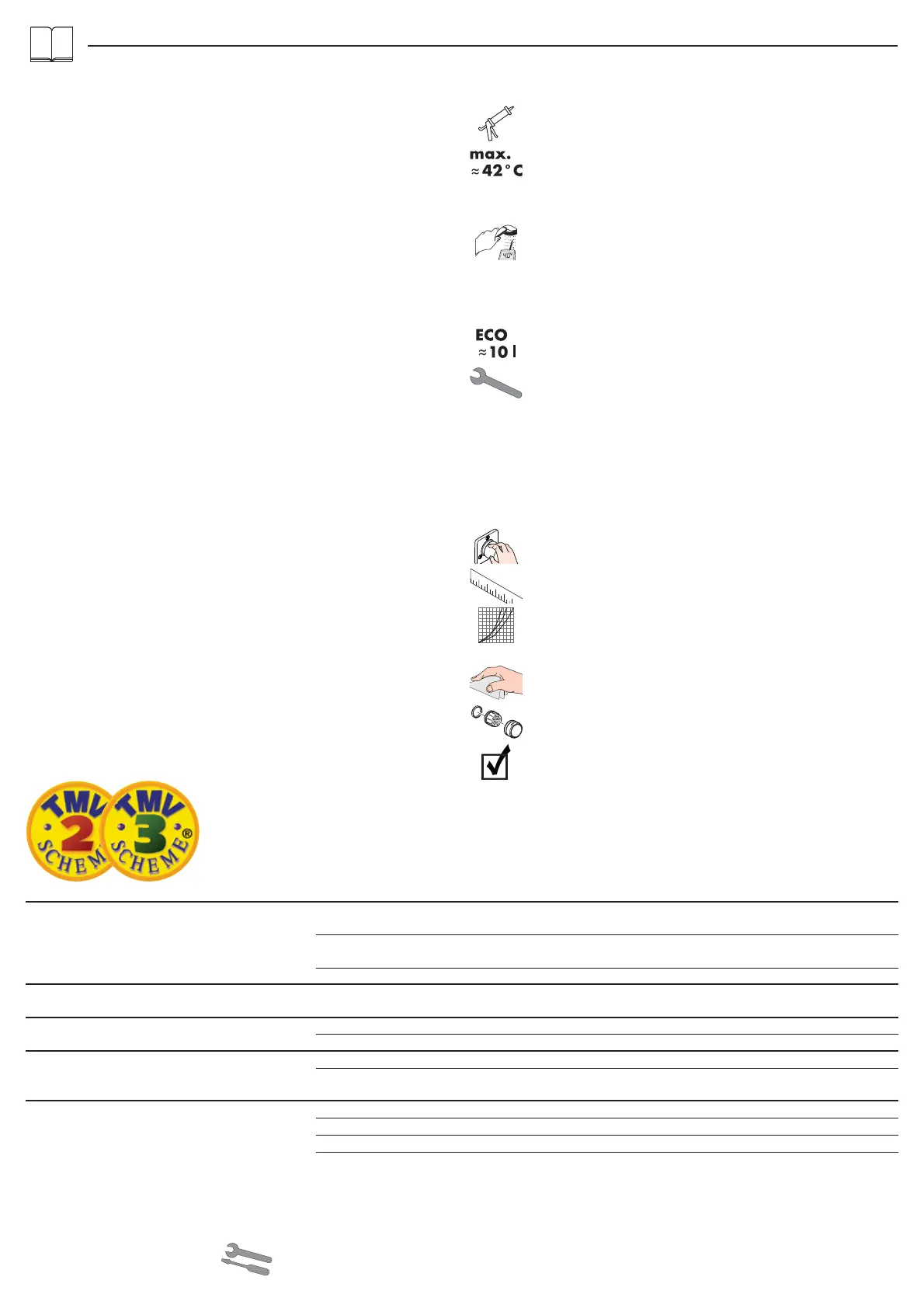

Symbol description
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting
injuries.
Children as well as adults with physical, mental and/or sensoric impairments
must not use this product without proper supervision. Persons under the influ-
ence of alcohol or drugs are prohibited from using this product.
The product may not be used as a holding handle. A separate handle must be
installed.
The shower system may only be used for bathing, hygienic and body cleaning
purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions
• Prior to installation, inspect the product for transport damages. After it has been
installed, no transport or surface damage will be honoured.
• The pipes and the fixture must be installed, flushed and tested as per the applica-
ble standards.
• The plumbing codes applicable in the respective countries must be oberserved.
• The product is not designed to be used with steam baths!
Thermostatic mixer in conjunction with combination boilers
• If fitting a hand shower remove the water limiter from the shower.
• Thermostatic mixer Shower: To ensure smooth operation, we recommend to
remove the ECOSTOP washer disk (#95771000) when using a flow heater with
hydraulic control.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Centre distance: 150±12mm
Connections G 1/2: cold right - hot left
Thermal disinfection: max. 70°C / 4 min
Safety against backflow
The product is exclusively designed for drinking water!
English
Spare parts (see page 38)
Test certificate (see page 39)
ECOSTOP (see page 33)
Special information for UK (see page 40)
