11

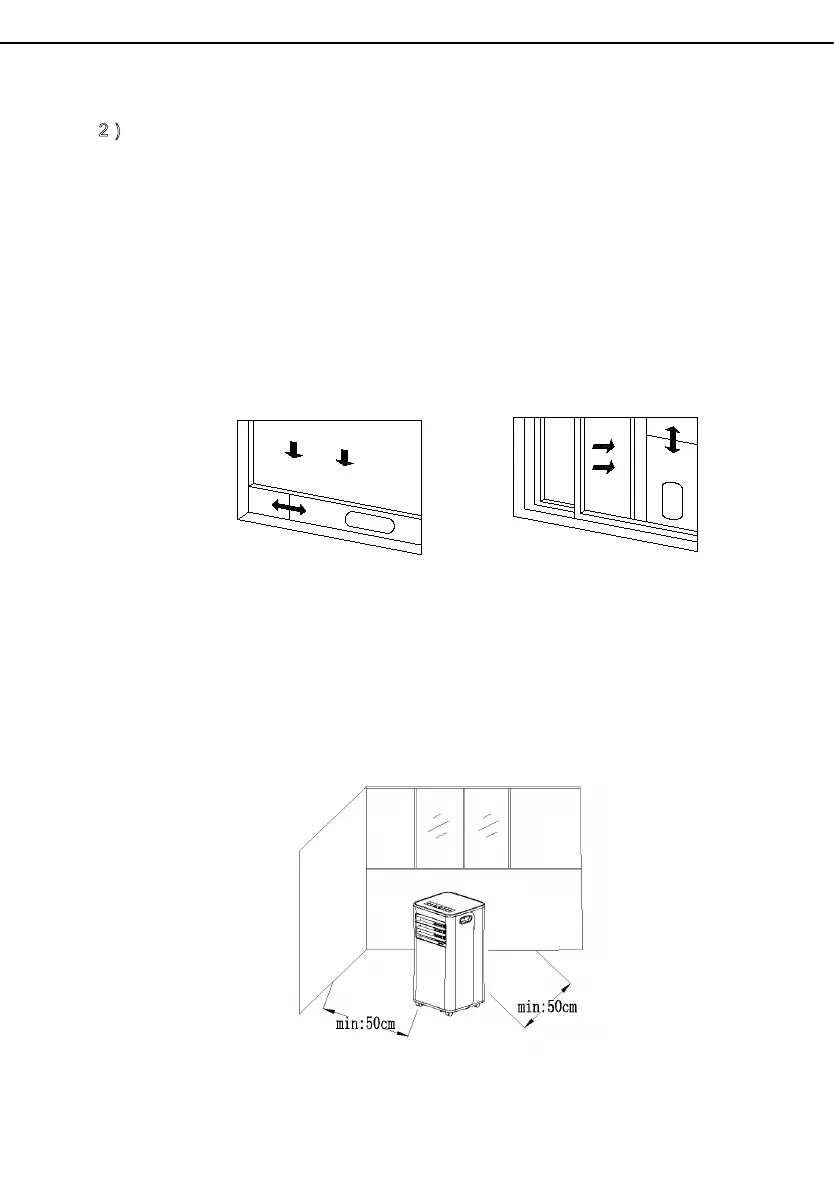

Fig.3).Components can be placed in horizontal and vertical direction.
2
）Pull various components of the window sealing plate assembly open, adjust their
opening distance to bring both ends of the assembly into contact with the window
frame, and fix various components of the assembly.1.2 Install the window sealing
plate assembly
Notes:1）the flat end of the exhaust pipe joints must be snapped into place.
2)The pipe cannot be distorted nor has substantial turning (greater than 45 ° ).
Keep the ventilation of the exhaust pipe not blocked.
Figure 2
Figure 3
1.3 Install the body
1）
Move the mac
hine with installed he
at pipe and fittings before the window, and the
distance between the body
and walls or other objects shall be least 50 cm (as shown in Fig.4).
Figure
4
EN
