V.Installation and adjustment
1.
Installation：
Warning: before using the mobile air conditioning, keep it upright for at least two hours.
The air conditioning can be easily moved in the room. In the moving process, ensure that the
air conditioning is in the upright position and the air conditioning should be placed on a flat
surface. Do not install and use the air conditioning in the bathroom or other humid
environments.

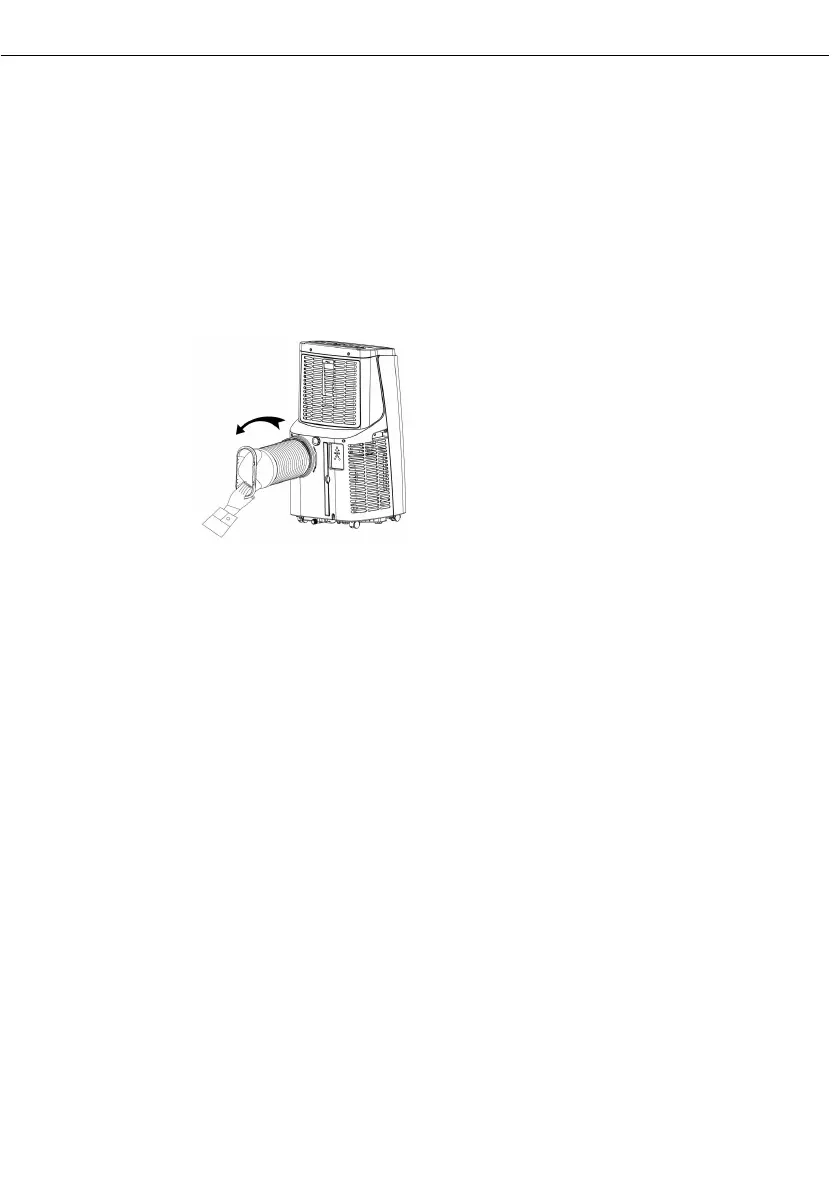

1.1 Install the heat pipe assembly （as shown in Fig.1）
Figure 1
1 ） take out the outer connector assembly and the exhaust pipe assembly, and
remove the plastic bags;
2）insert the heat pipe assembly (the end of the exhaust joint) into the back panel
vent slot (push to the
left) and complete the assembly (as shown in figure 1).
1.2 Installation of window sealing plate components
1）Half open the window，and mount the window sealing plate assembly to the window (as
shown in Fig.2 and
Fig.3).Components can be placed in horizontal and vertical direction.
2）Pull various components of the window sealing plate assembly open, adjust their
opening distance to bring
both ends of the assembly into contact with the window frame, and fix various
components of the
assembly.1.2 Install the window sealing plate assembly
