III. Control Setting
1.Control panel operation instructions

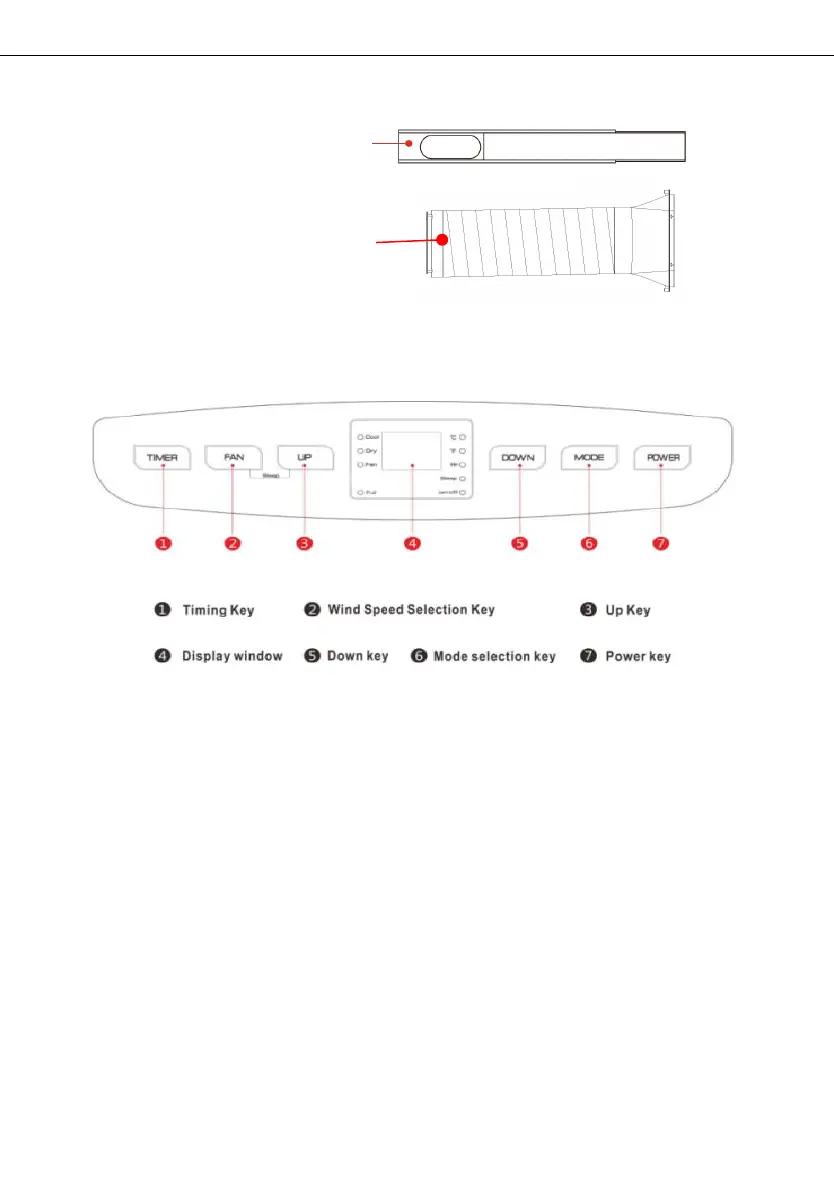

1）operation interface：
1: When the machine is powered on for the first time, the buzzer will play power-on
music, and then the machine will get into standby status.
2: Power Key: press the key to turn on and turn off the machine. In the case of power
on, press the key to turn off the machine; in the case of power off, press the key to
turn on the machine.
3: Mode Selection Key: In the case of power on, press the key to switch between
cooling → fan → dehumidifying mode.
4: Up Key and Down Key: press the two keys to change the setting temperature or
setting time, operate as follows:
While setting temperature, press up key or down key to select the required
temperature (not available in fan or dehumidifying mode).
While setting time, press up key or down key to select the required time.
5: Wind Speed Selection Key:
排热管组
Exhaust Pipe Assembly
Window Sealing Plate Assembly
