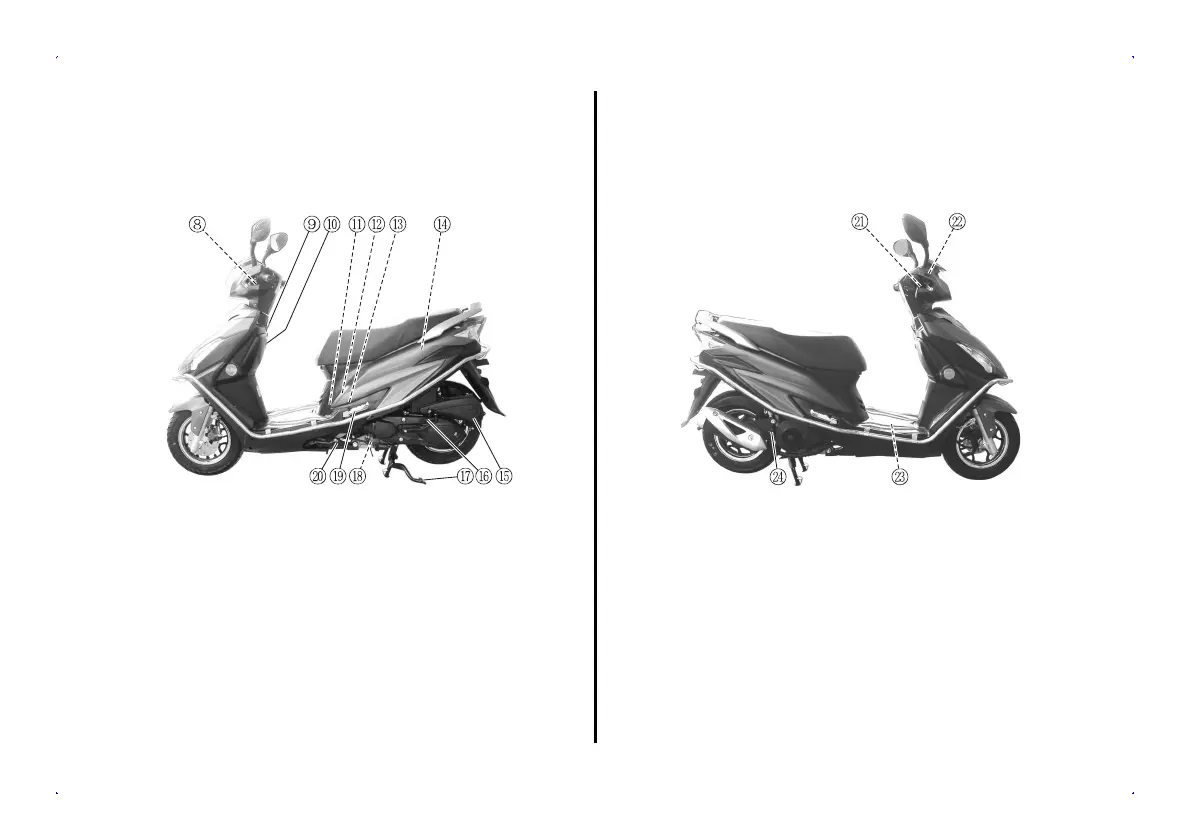

8 Rear brake switch
9 Hook
: Front storage case
; Spark plug
< Storage case
= Carburetor
> Fuel tank
? Air filter
@ Kick start lever
A Main stand
B Engine oil filter
C Passenger footrests
D Side stand
E
Front brake switch
F Front brake cylinder
G
Battery and fuse
H Engine oil cap (Engine oil
dipstick)
