This document outlines the assembly instructions and specifications for the Avery Ottoman Bed, available in 4FT6 (Double), 5FT (King), and 6FT (Super King) sizes. It is a gas-lift bed designed to provide under-bed storage.

Function Description

The Avery Ottoman Bed features a gas-lift mechanism that allows the mattress base to be raised, revealing a spacious storage area beneath the bed frame. This design maximizes space utilization in bedrooms by offering a convenient and discreet storage solution for bedding, clothes, or other items. The gas-lift pistons assist in effortlessly lifting and lowering the mattress base.

Important Technical Specifications

Overall Dimensions (LWH mm):

Double: 1980 x 1410 x 1250
King: 2080 x 1560 x 1250
Super King: 2080 x 1860 x 1250

Storage Dimensions (LWH mm):

Double: 1900 x 1310 x 280
King: 2000 x 1460 x 280
Super King: 2000 x 1760 x 280

Ottoman Piston Strength:

Double: 1000N
King: 1100N
Super King: 1300N

Maximum Storage Height: 280mm (It is crucial to ensure that items stored under the bed do not exceed this height to prevent damage to the slats or the items themselves).

Minimum and Maximum Mattress Weights:

Double: Min 20 kg, Max 50 kg
King: Min 25 kg, Max 55 kg
Super King: Min 25 kg, Max 60 kg (It is essential to adhere to these mattress weight guidelines for safe and proper operation of the gas-lift mechanism and to prevent injury).

Usage Features

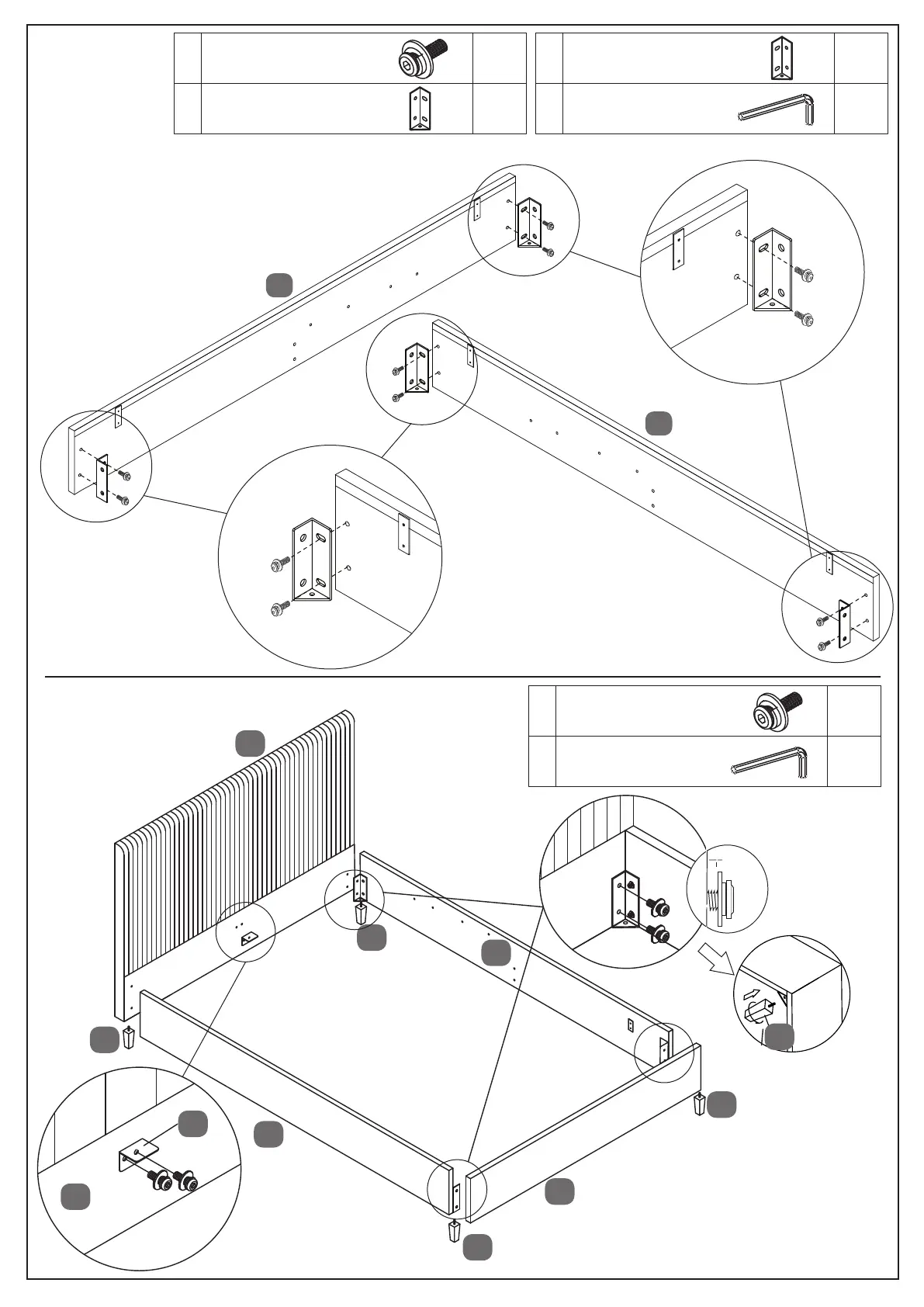

Assembly: The bed requires assembly, and the manual provides detailed, step-by-step instructions with diagrams. Key components include a headboard, footboard, side rails, mattress base boards (headend and footend), gas-lift mechanisms, gas-lift pistons, and various brackets and fasteners.

Tools: Basic hand tools like screwdrivers, a hammer (non-metal), an Allen key (M8), and a spanner (M8 nut) are suggested. Power tools are explicitly discouraged as they may damage the frame.
Assistance: Due to the weight of some parts, an assistant is recommended for lifting during assembly.
Location: Assemble the product as close to its final location as possible.
Pre-assembly Check: Users should carefully read all instructions and verify that all parts and fittings are present before starting assembly.

Operating the Gas-Lift Mechanism (Ottoman Function):

Mattress Placement: It is critical to ensure the mattress is on the bed frame before operating the lift mechanism. Failure to do so can result in injury.
Initial Operation: When first using the bed, stand at the foot of the frame and forcefully press down on the mattress while opening the base. This helps release the compressed gas in the pistons.
Lifting and Lowering: Always use the provided handle when lifting and lowering the base. Keep hands clear of the mechanism to avoid injury.
Safety Precautions:
- The ottoman should be operated by adults only.
- Keep children and pets away from the bed and the storage area during operation.
- Never reach into the mechanism or storage area unless the ottoman is fully open and secured.
- Ensure the ottoman support bar is secure when the base is open.
- Do not lie on the mattress when the ottoman is in the raised position.
- Remove all bedding except the fitted sheet when lifting the ottoman.
- Do not overload the internal storage base.
- Do not stand inside the internal storage area.
- Before removing the mattress, secure the frame to prevent unexpected opening.

Storage:

The bed offers internal storage space.
Regularly air the internal storage area and its contents to maintain freshness.

Maintenance Features

General Care:

Cleaning: Wipe the bed clean with a slightly damp cloth. Avoid using household cleaners and abrasives, as these can damage the finish.
Fixings: Periodically check all screws and fixings to ensure they remain secure.
Moving the Product: When relocating the bed, always lift it into place. Do not drag or push the pieces across the floor, as this can damage the joints and invalidate the warranty. Using a carpet or rug for extra care when moving pieces is recommended to prevent damage to joints.

Support:

In case of problems with assembly, damaged, or missing pieces, customers are advised to contact Happybeds customer services.
Further information on cleaning and product care is available on the Happybeds website.
