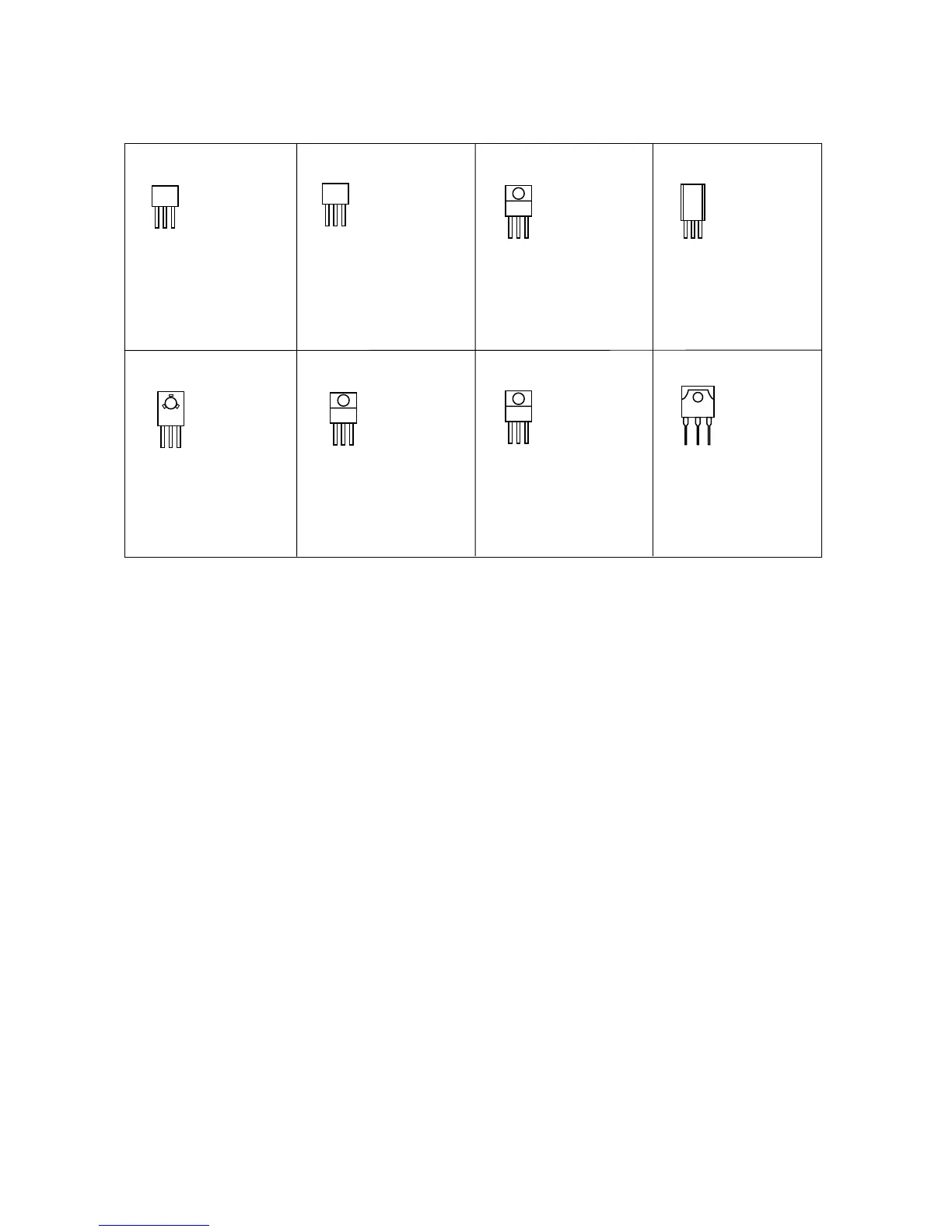

TRANSISTOR, REGULATOR IC BLOCK DIAGRAM

TO-92M

1. Emitter

2. Collector

3. Base

1. Emitter

2. Collector

3. Base

KTC2874B

KRA107M

2SA1360O

KTD600KG

KTD1302T

KTC3200GR

KTA1271Y

KTA1268GR

KTC3198Y

KSC2785Y

KRC107M

2SC3423O

1. Emitter

2. Collector

3. Base

TO-126

TO-92

123

1. Base

2. Collector

3. Emitter

KSA614Y

TO-220

123

1. INPUT

2. GND

3. OUTPUT

MC7815C MC7805C

TO-220

123

1. GND

2. INPUT

3. OUTPUT

MCNJM7905 MC7915C

TO-220

123

1. Base

2. Collector

3. Emitter

2SB1647 2SD2560

KTA1024Y KSC2316Y

1. Emitter

2. Collector

3. Base

TO-3P

TO-92L

123
