AVR 325 QUICK-START GUIDE
Step 2. Connect the speakers to the receiver:red (+) on speaker to colored (+) on receiver and black (–) to black (–)
(see page 15).
Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.
Adjust the settings on the subwoofer as needed (see page 15).
Figure 3 – How To Use the Binding-Post
Speaker Terminal
SURROUND BACK
RIGHT SPEAKER
SURROUND BACK
LEFT SPEAKER
FRONT RIGHT
SPEAKER
FRONT LEFT
SPEAKER
CENTER SPEAKER
SUBWOOFER
+
_
LINE IN/SUB/LFE
+
_
SURROUND
RIGHT SPEAKER
+
_
+
_
+
_
SURROUND
LEFT SPEAKER
+
_
+
_

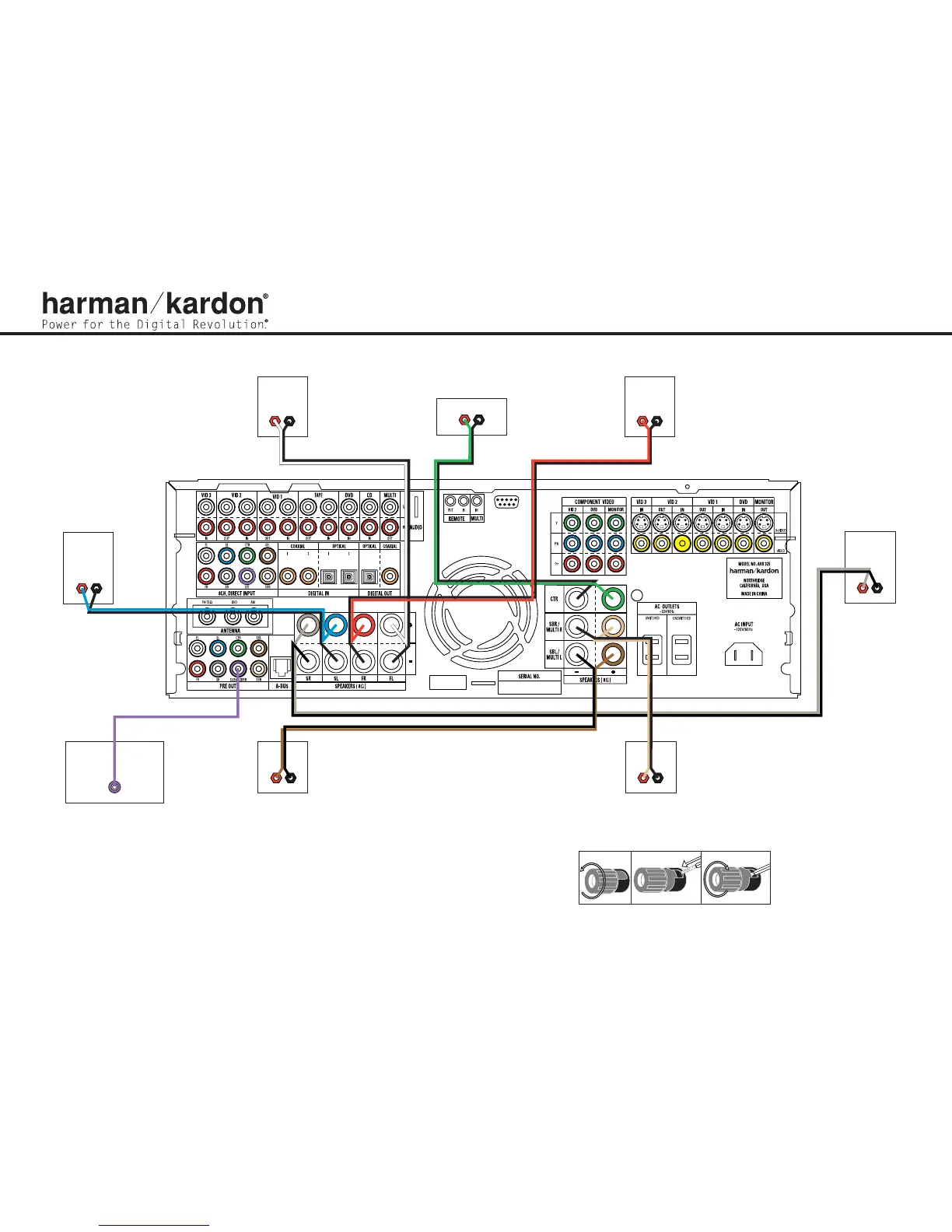

Figure 2 – Speaker Connections
