Harman Kardon AVR 335 Quick Start Guide

AVR 335 QUICK-START GUIDE
Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+) on receiver and black (–) to black (–)
(see page 14).
Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.
You may adjust the settings on the subwoofer later as needed (see page 14).
Figure 3 – How to Use the Binding-Post
Speaker Terminal
SURROUND BACK
RIGHT SPEAKER
SURROUND BACK
LEFT SPEAKER
FRONT RIGHT 
SPEAKER
FRONT LEFT
SPEAKER
CENTER SPEAKER
SUBWOOFER
+
_
LINE IN/SUB/LFE
+
_
SURROUND
RIGHT SPEAKER
+
_
+
_
+
_
SURROUND
LEFT SPEAKER
+
_
+
_

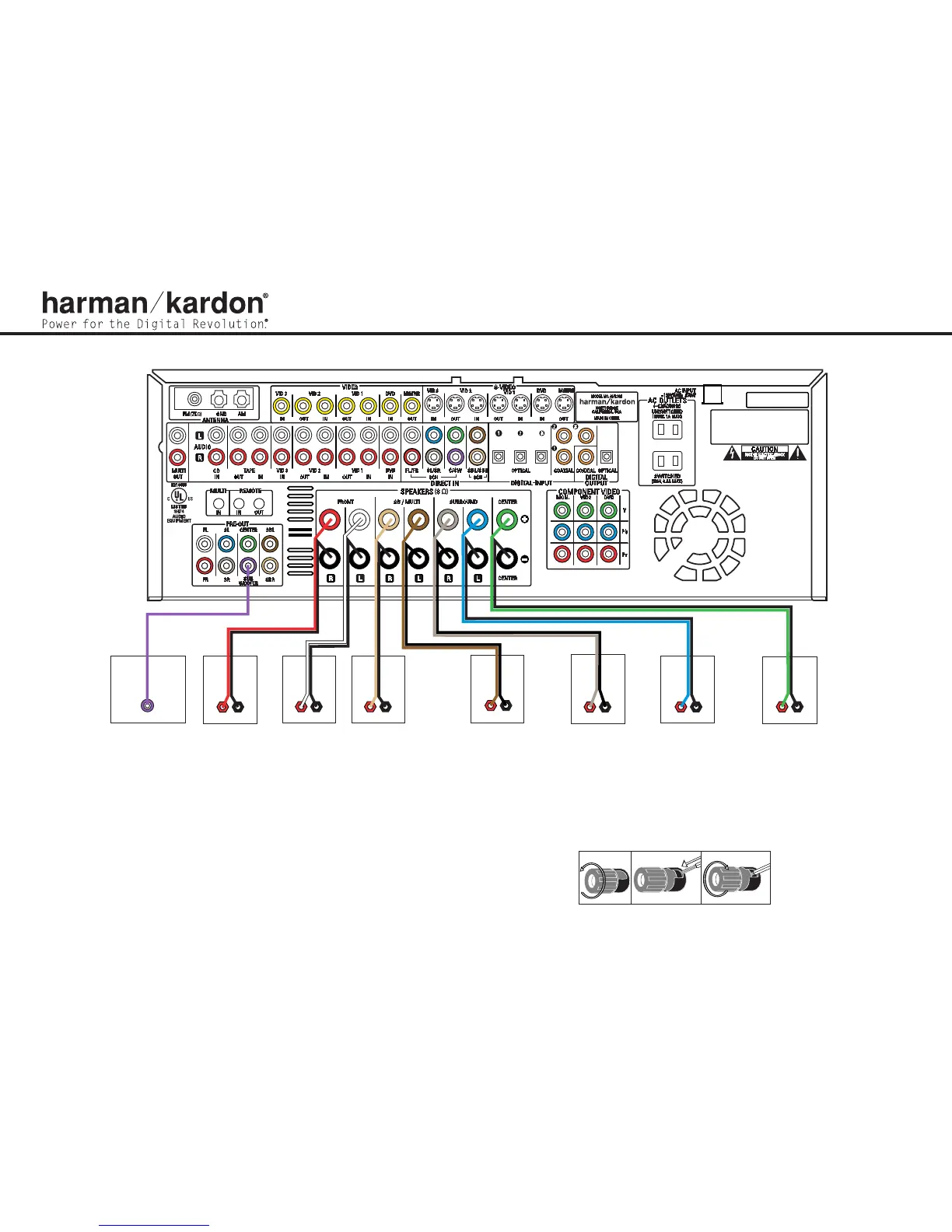

Figure 2 – Speaker Connections

Harman Kardon AVR 335 Specifications
