Harman Kardon AVR 340 Quick Start Guide

AVR 340 QUICK-START GUIDE

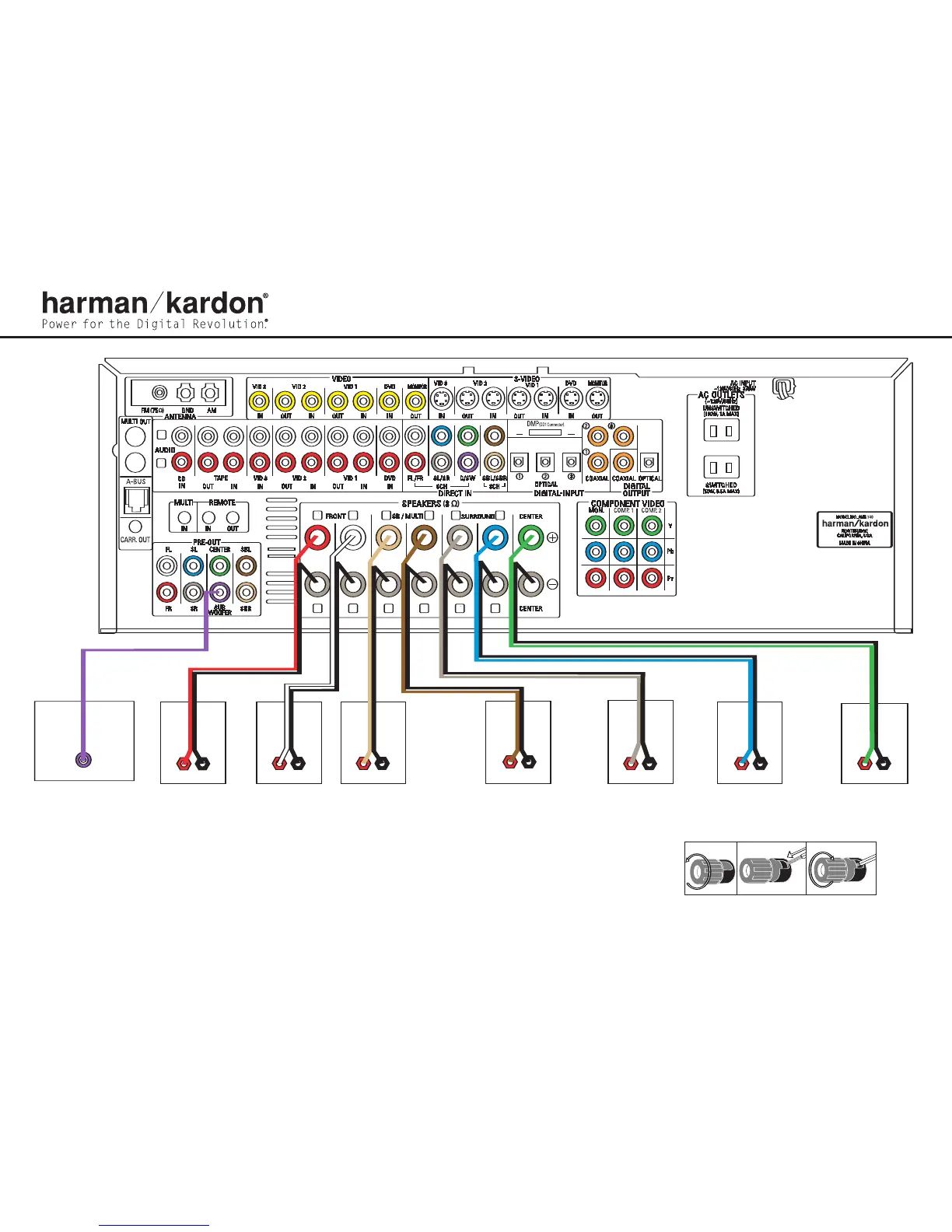

Figure 2 – Speaker Connections
Step 2. Connect the speakers to the receiver: red (+)
on speaker to colored (+) on receiver
,
and
black (–) to black (–) (see page 16).
Step 3.
Connect the Subwoofer Pre-Out jack to
the Line-In jack on your subwoofer (see
page 16). You may adjust the settings on
the subwoofer later as needed.
F
igure 3 –
Ho
w to Use the Binding-Post
Speaker Terminal
SUBWOOFER
LINE IN/SUB/LFE
SURROUND BACK
RIGHT SPEAKER
SURROUND BACK
LEFT SPEAKER
FRONT RIGHT
SPEAKER
FRONT LEFT
SPEAKER
CENTER SPEAKER
+
_
+
_
SURROUND
RIGHT SPEAKER
+
_
+
_
+
_
SURROUND
LEFT SPEAKER
+
_
+
_
