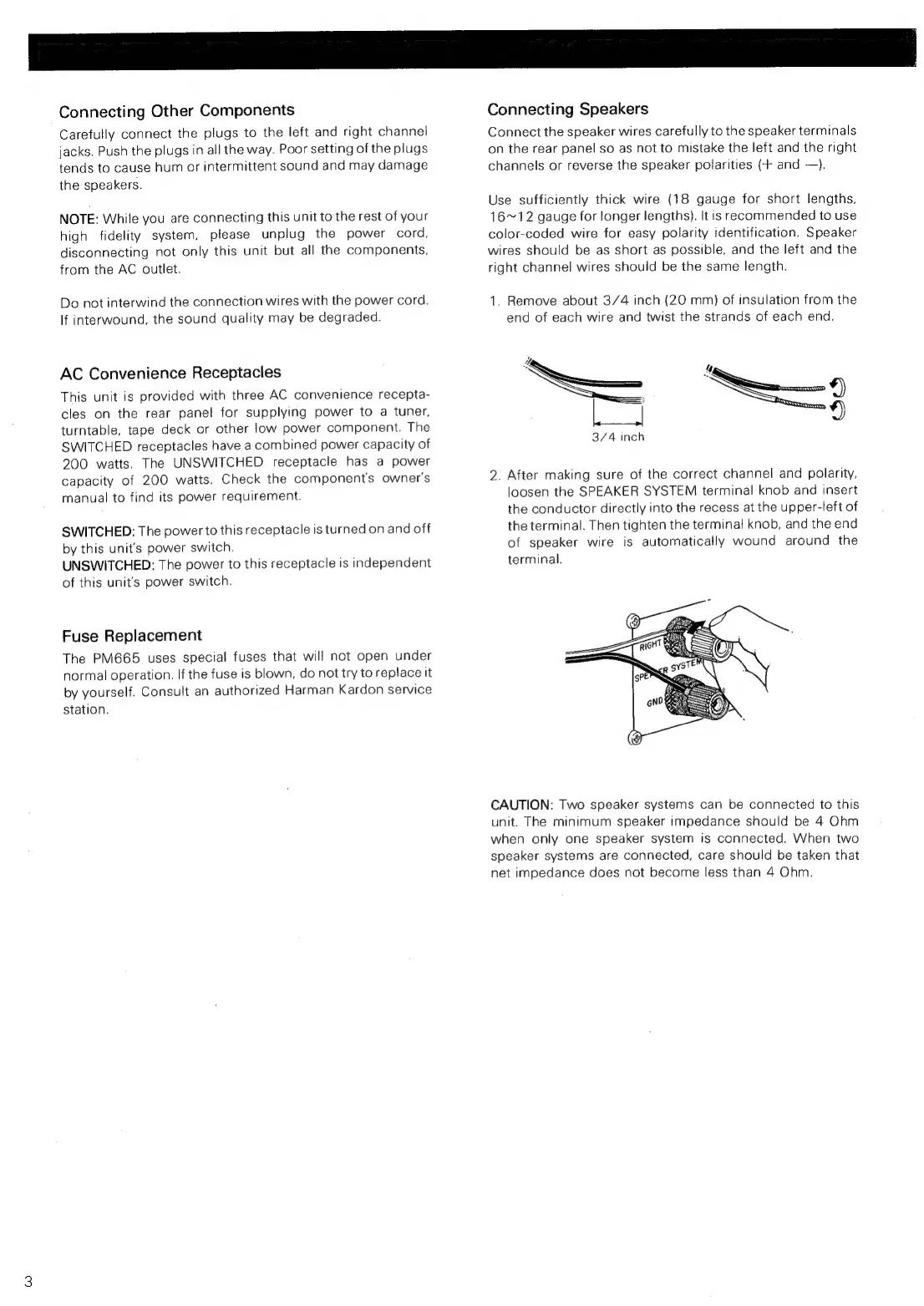

Connecting Other Components
Carefully
connect
the
plugs
to
the
left
and
right
channel
jacks.
Push
the
plugs
in
all
the
way.
Poor
setting
of
the
plugs
tends
to
cause
hum
or
intermittent
sound
and
may
damage
the
speakers.
NOTE:
While
you
are
connecting
this
unit
to
the
rest
of
your
high
fidelity
system,
please
unplug
the
power
cord,
disconnecting
not
only
this
unit
but
all
the
components,
from
the
AC
outlet.
Do
not
interwind
the
connection
wires
with
the
power
cord.
If
interwound,
the
sound
quality
may
be
degraded.
AC Convenience Receptacles
This unit is provided with three AC convenience recepta-
cles on the rear panel for supplying power to a tuner,
turntable,
tape
deck
or
other
low
power
component.
The
SWITCHED
receptacles
have
a
combined
power
capacity
of
200
watts.
The
UNSWITCHED
receptacle
has
a
power
capacity
of
200
watts.
Check
the
component's
owner's
manual to find its power requirement.
SWITCHED:
The
power
to
this
receptacle
is
turned
on
and
off
by
this
unit’s
power
switch.
UNSWITCHED:
The
power
to
this
receptacle
is
independent
of
this
unit's
power
switch.
Fuse Replacement
The
PM665
uses
special
fuses
that
will
not
open
under
normal
operation.
If
the
fuse
is
blown,
do
not
try
to
replace
it
by
yourself.
Consult
an
authorized
Harman
Kardon
service
station.
Connecting Speakers
Connect the speaker wires carefully to the speaker terminals
on the rear panel so as not to mistake the left and the right
channels or reverse the speaker polarities (+ and —).
Use sufficiently thick wire (18 gauge for short lengths,
16~12 gauge for longer lengths). It is recommended to use
color-coded wire for easy polarity identification. Speaker
wires should be as short as possible, and the left and the
right channel wires should be the same length.
1. Remove about 3/4 inch (20 mm) of insulation from the
end of each wire and twist the strands of each end.
3/74 inch
2. After making sure of the correct channel and polarity,
loosen the SPEAKER SYSTEM terminal knob and insert
the conductor directly into the recess at the upper-left of
the terminal. Then tighten the terminal knob, and the end
of speaker wire is automatically wound around the
terminal.
CAUTION: Two speaker systems can be connected to this
unit. The minimum speaker impedance should be 4 Ohm
when only one speaker system is connected. When two
speaker systems are connected, care should be taken that
net impedance does not become less than 4 Ohm.
