Harman Kardon PM665 User Manual

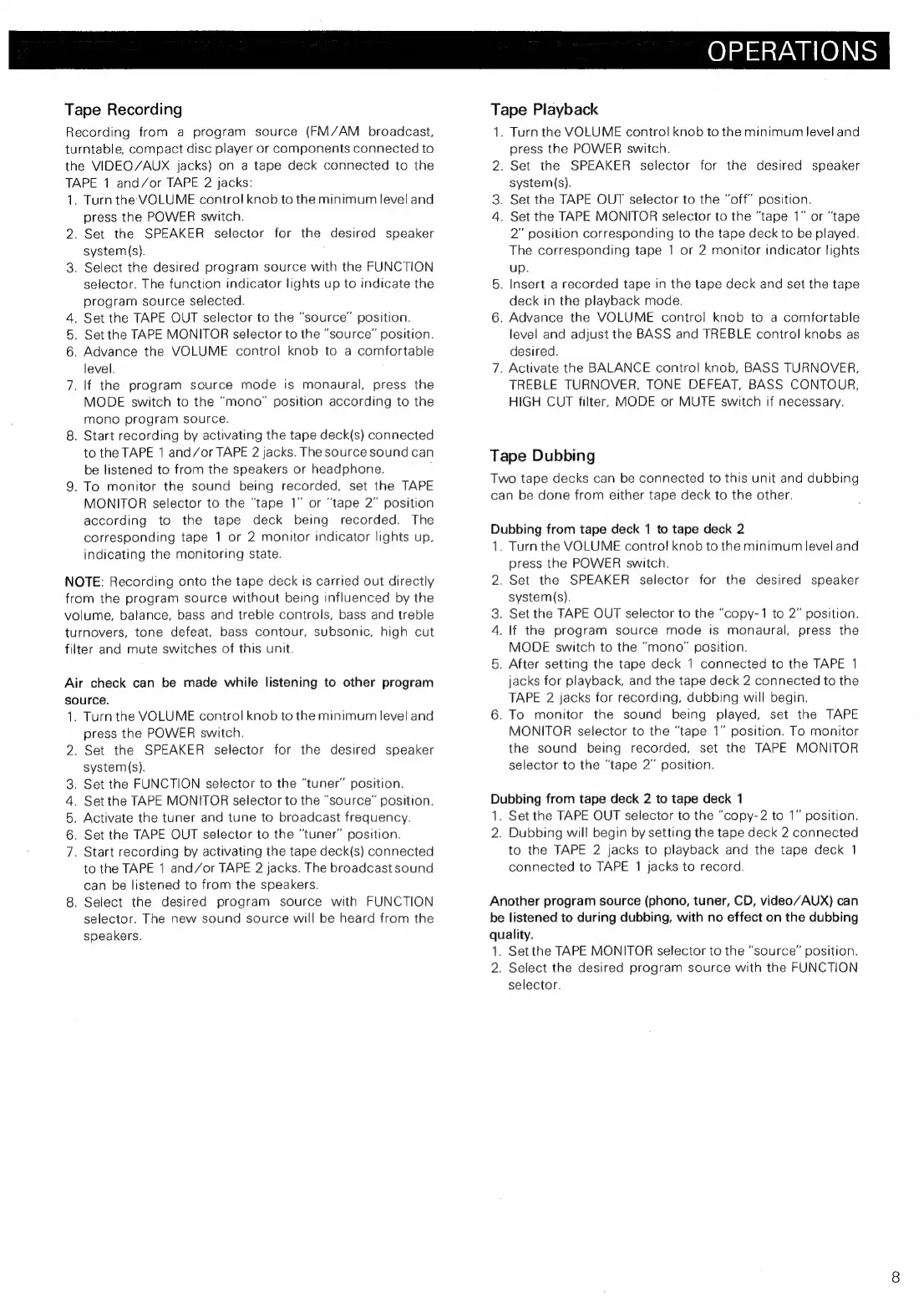

Tape Recording
Recording from a program source (FM/AM broadcast,
turntable, compact disc player or components connected to
the VIDEO/AUX jacks) on a tape deck connected to the
TAPE 1 and/or TAPE 2 jacks:
1. Turn the VOLUME control knob to the minimum level and
press the POWER switch.
2. Set the SPEAKER selector for the desired speaker
system(s).
3. Select the desired program source with the FUNCTION
selector. The function indicator lights up to indicate the
program source selected.
4. Set the TAPE OUT selector to the “source” position.
5. Set the TAPE MONITOR selector to the “source” position.
6. Advance the VOLUME control knob to a comfortable
level.
7. |f the program source mode is monaural, press the
MODE switch to the “mono” position according to the
mono program source.
8. Start recording by activating the tape deck(s) connected
to the TAPE 1 and/or TAPE 2 jacks. The source sound can
be listened to from the speakers or headphone.
9. To monitor the sound being recorded, set the TAPE
MONITOR selector to the “tape 1” or “tape 2” position
according to the tape deck being recorded. The
corresponding tape 1 or 2 monitor indicator lights up,
indicating the monitoring state.
NOTE: Recording onto the tape deck is carried out directly
from the program source without being influenced by the
volume, balance, bass and treble controls, bass and treble
turnovers, tone defeat, bass contour, subsonic, high cut
filter and mute switches of this unit.
Air check can be made while listening to other program
source.
1. Turn the VOLUME control knob to the minimum level and
press the POWER switch.
2. Set the SPEAKER selector for the desired speaker
system(s).
. Set the FUNCTION selector to the “tuner” position.
. Setthe TAPE MONITOR selector to the “source” position.
. Activate the tuner and tune to broadcast frequency.
. Set the TAPE OUT selector to the “tuner” position.
. Start recording by activating the tape deck(s) connected
to the TAPE 1 and/or TAPE 2 jacks. The broadcast sound
can be listened to from the speakers.
8. Select the desired program source with FUNCTION
selector. The new sound source will be heard from the
speakers.
NOQODW
OPERATIONS
Tape Playback
1. Turn the VOLUME control knob to the minimum level and
press the POWER switch.
2. Set the SPEAKER selector for the desired speaker
system(s).
3. Set the TAPE OUT selector to the “off” position.
4. Set the TAPE MONITOR selector to the “tape 1” or “tape
2" position corresponding to the tape deck to be played.
The corresponding tape 1 or 2 monitor indicator lights
up.
5. Insert a recorded tape in the tape deck and set the tape
deck in the playback mode.
6. Advance the VOLUME control knob to a comfortable
level and adjust the BASS and TREBLE control knobs as
desired.
7. Activate the BALANCE control knob, BASS TURNOVER,
TREBLE TURNOVER, TONE DEFEAT, BASS CONTOUR,
HIGH CUT filter, MODE or MUTE switch if necessary.
Tape Dubbing
Two tape decks can be connected to this unit and dubbing
can be done from either tape deck to the other.
Dubbing from tape deck 1 to tape deck 2
1. Turn the VOLUME control knob to the minimum level and
press the POWER switch.
2. Set the SPEAKER selector for the desired speaker
system(s).
3. Set the TAPE OUT selector to the “copy-1 to 2” position.
4. If the program source mode is monaural, press the
MODE switch to the “mono” position.
5. After setting the tape deck 1 connected to the TAPE 1
jacks for playback, and the tape deck 2 connected to the
TAPE 2 jacks for recording, dubbing will begin.
6. To monitor the sound being played, set the TAPE
MONITOR selector to the “tape 1” position. To monitor
the sound being recorded, set the TAPE MONITOR
selector to the “tape 2” position.
Dubbing from tape deck 2 to tape deck 1
1. Set the TAPE OUT selector to the “copy-2 to 1” position.
2. Dubbing will begin by setting the tape deck 2 connected
to the TAPE 2 jacks to playback and the tape deck 1
connected to TAPE 1 jacks to record.
Another program source (phono, tuner, CD, video/AUX) can
be listened to during dubbing, with no effect on the dubbing
quality.
1. Set the TAPE MONITOR selector to the “source” position.
2. Select the desired program source with the FUNCTION
selector.
