Instruction Manual | 8
AVB-VSTYLE-RMK-FILL-1U (FG1010-721)

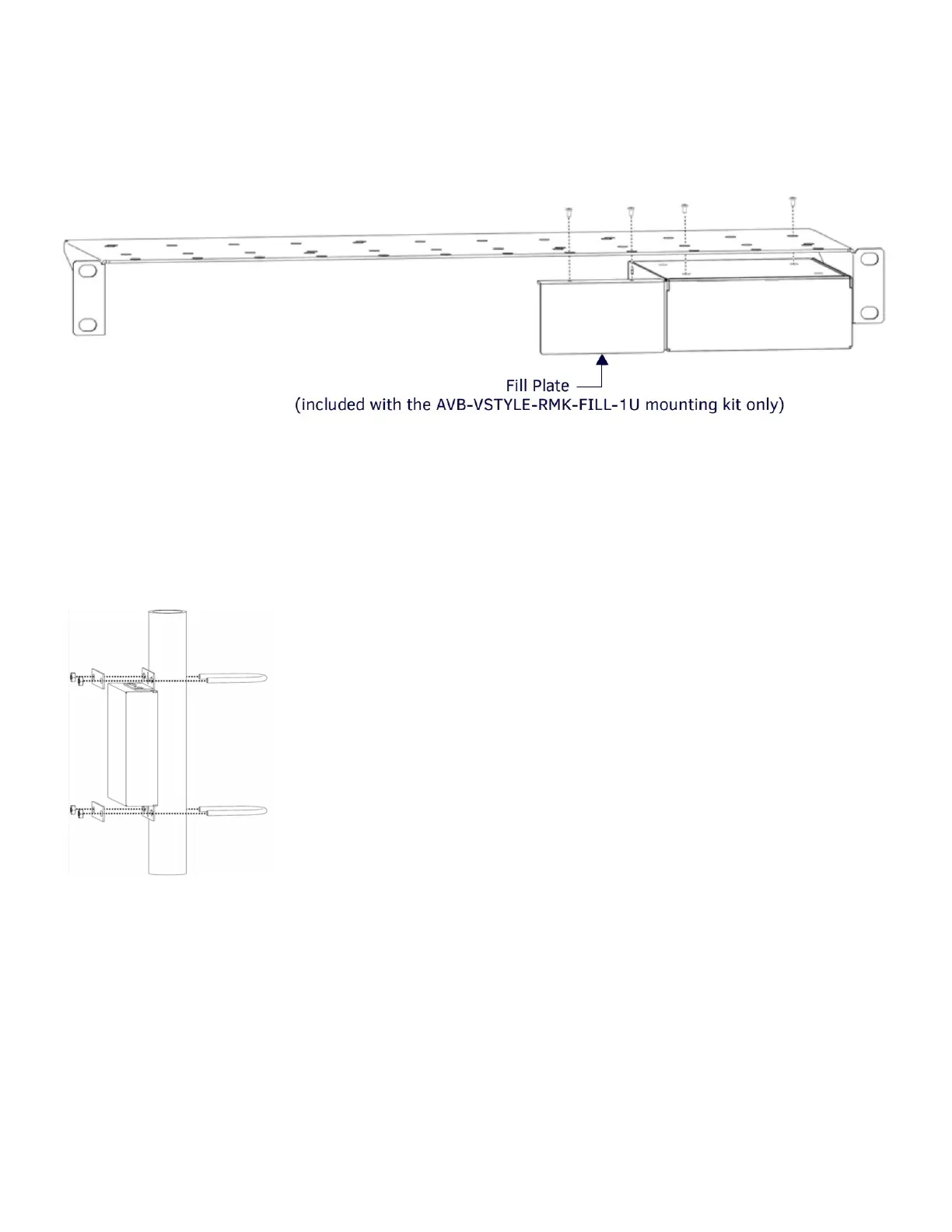

V Style Module Tray Rack - Mount up to four modules side by side in a 1 RU space, with Fill Plates for instances when the entire tray
is not full (FIG. 3).
Note that the tray illustrated in FIG. 3 is shown upside down for ease of installation. However, the tray can be rack-mounted in a
rack either way.
Also note that the Fill Plate included in this illustration is included only in the AVB-VSTYLE-RMK-FILL-1U (FG1010-721).
NOTE: The AVB-VSTYLE-RMK and AVB-VSTYLE-RMK-FILL-1U mounting kits are appropriate for the CE-COM2, -IRS4, -IO8 and -REL8
AVB-VSTYLE-POLE-MNT (FG1010-723)
V Style Single Module Pole Mounting Kit - Suspend a single module to a pole (FIG. 4).
Fig xxx – AVB-VSTYLE-POLE-MNT
