11

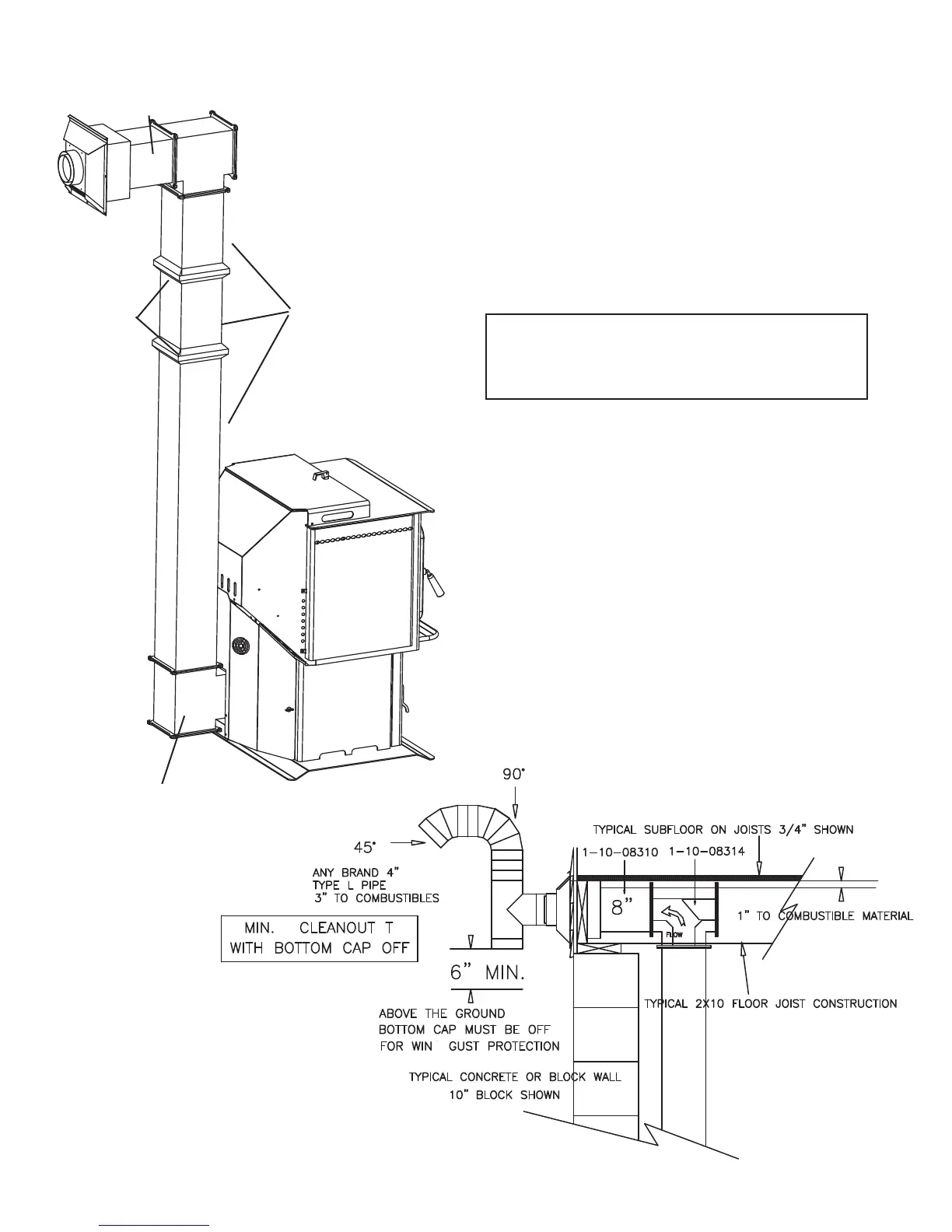

Basement Installation
To install a DVC 500 in a basement you will
need additional DVC vent sections. These sections
are made with a 316-grade stainless steel liner and
a 20 gauge galvaneeled outer shell. Each joint is
sealed with a gasket and is bolted together with 4
bolts. In order to maintain the best seal, there are no
adjustable sections. There are straight, 45 degree,
andTeettings.RefertoPage14forallofthesec-
tions available.
Never use venting other than Harman DVC
venting inside the building. It is the only vent
certied for this appliance.
Refer to page 12 & 14 to calculate which sec-
tions will be needed for your installation.
Corner Installation
A corner installation requires a 45 degree section
in addition to the standard wall termination.
In order to cut a hole in the wall that will allow
the stove to be placed an equal distance to each wall,
refer to Page 13.
Wall Termination
Tee with cover plate
Straight sections
Joint covers
Tee with cover plate
Installation
g. 10
g. 11
D
