Harman DVC-500 - Assembly

6
Assembly

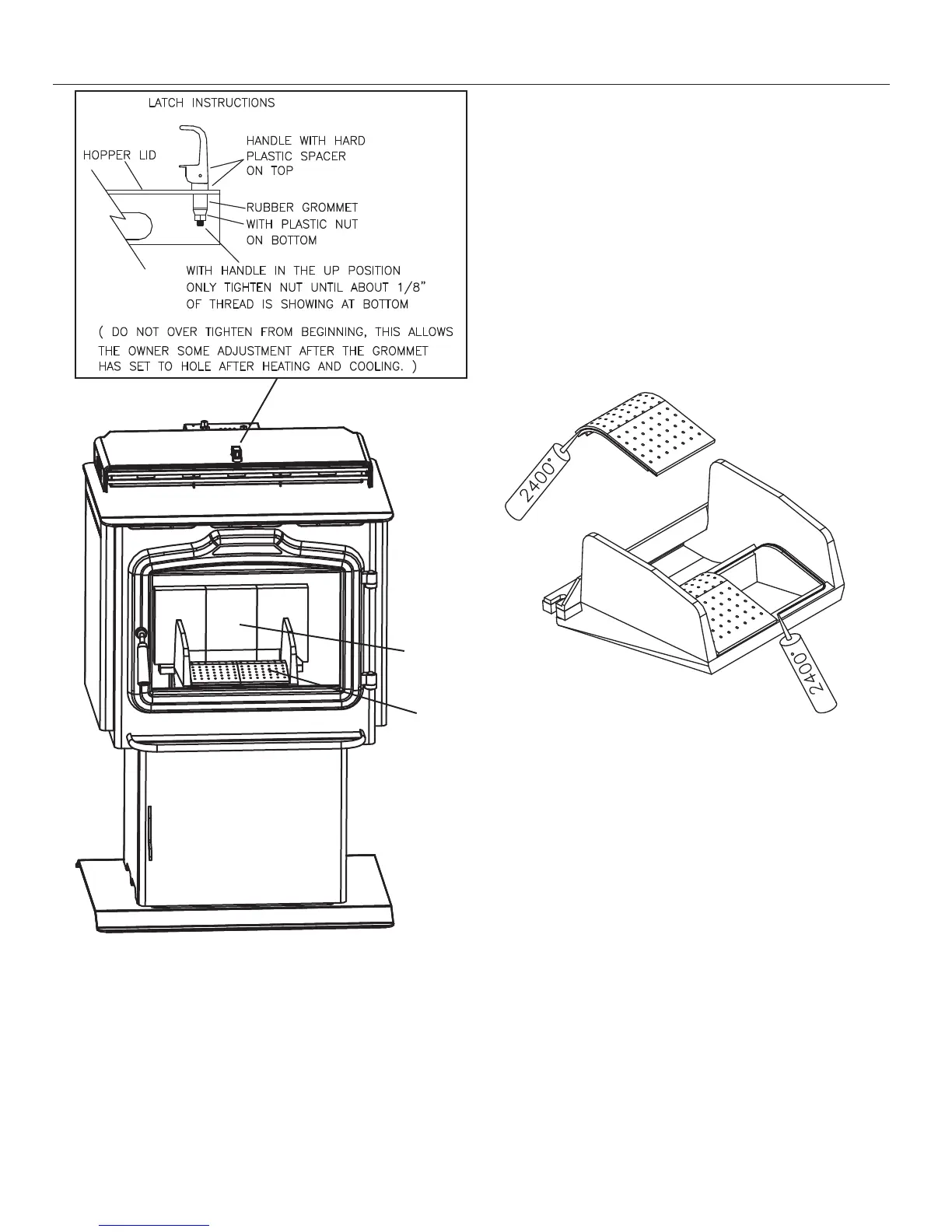

1. Install the hopper latch as shown at left.
2.Install3rebricksonthecastironanglebehind
the grate as shown.
3. Cement in grates as shown below. This may
already be done at the factory.
4. Install the front door and latch it closed.
3 Bricks
Grate
Inserts
g. 3
